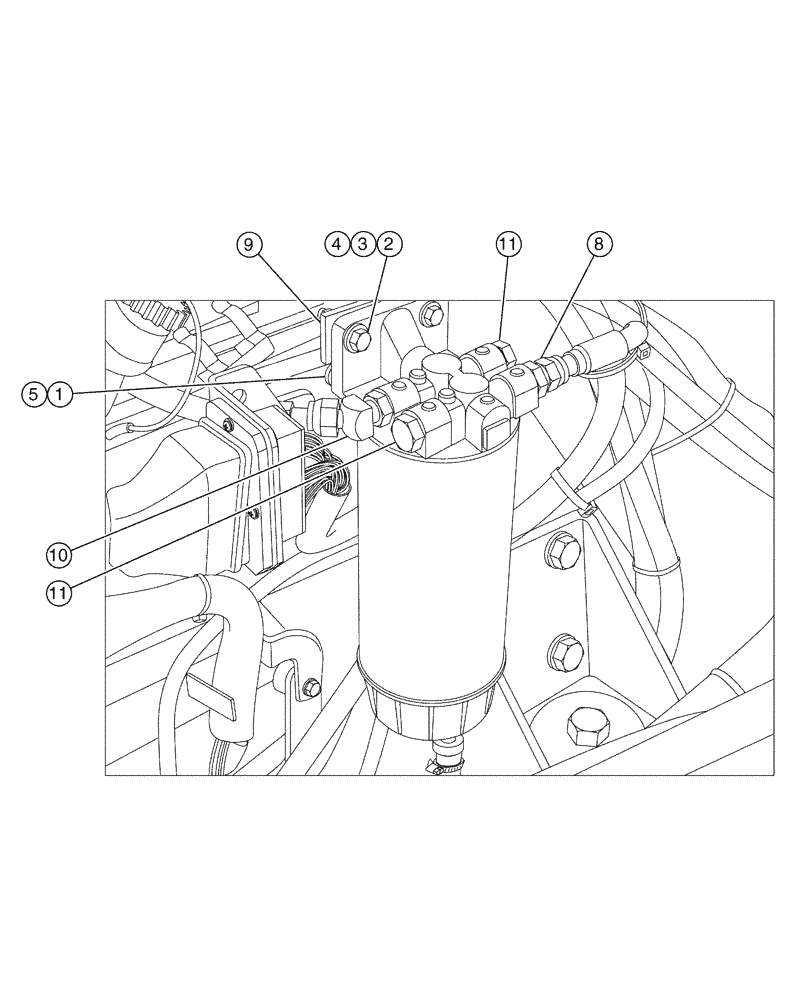

Запчасти Case IH FLX4300 (02-011[03]) - FUEL FITTINGS GROUP (FLX4375) (01) - ENGINE

1

11106231

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9

2шт.

2

16044024

BOLT,Hex, M8 x 1.25 x 40mm, Cl 8.8

2шт.

3

86528579

NUT,M8 x 1.25

2шт.

4

86624185

WASHER,8.8mm ID x 17.5mm OD x 2mm Thk

4шт.

5

BN300490

BOLT

M10, Fw, 8.8

2шт.

6

BN302496

FITTING

6Mor-8Mp90

1шт.

7

BN302646

FITTING

11/16-16 ORFS x 9/16-18 ORB

1шт.

8

BN302647

FITTING

6Mor-8Mb

2шт.

9

BN302812

BRACKET

Fuel/Water Sep.

1шт.

10

BN303940

FITTING

6Mor-8Mb45

1шт.

11

BN446025

PLUG

Plug-Hex Oring-3/4-16

2шт.
