Запчасти Case IH FLX4010 (02-003[01]) - ENGINE MOUNT GROUP (01) - ENGINE

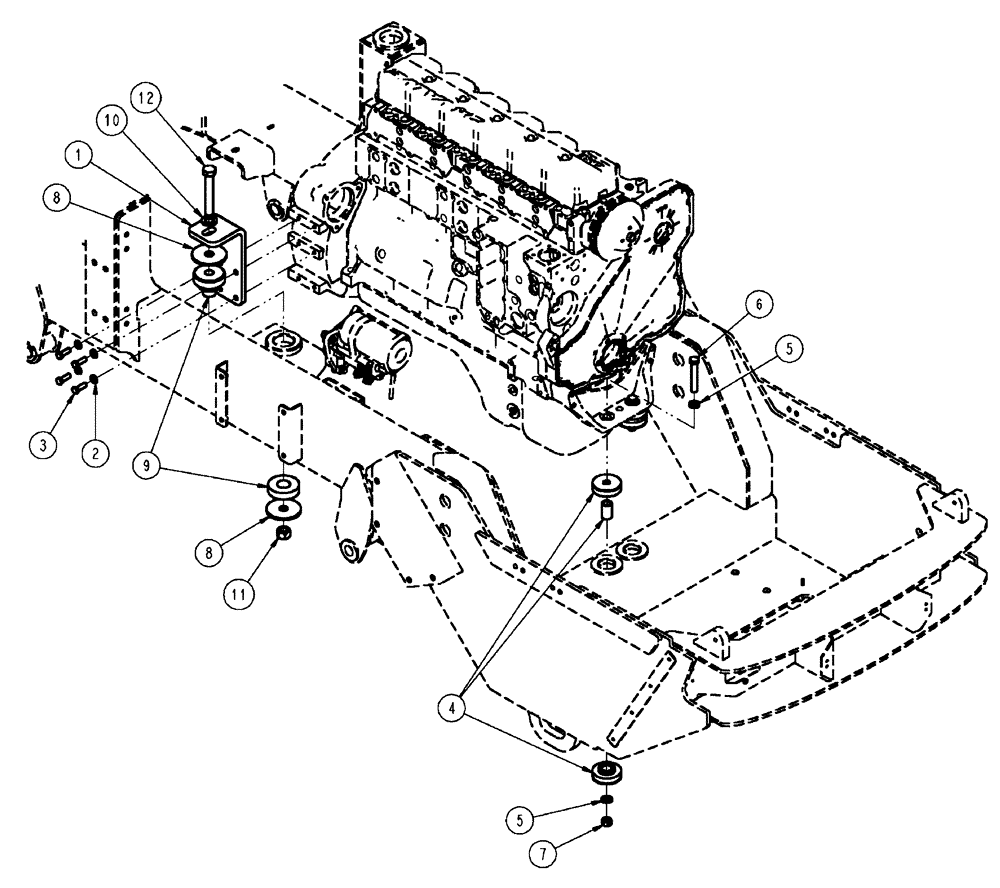

Схема запчастей Case IH FLX4010 - (02-003[01]) - ENGINE MOUNT GROUP (01) - ENGINE
7
5
5
4
1
6
3
11
12
10
2
8
8
9

Артикул

Название

Примечание

Количество

1

BN322752

PLATE

Rear Engine Mount

2шт.

2

86625255

WASHER,13.3mm ID x 24.5mm OD x 3mm Thk

8шт.

3

626-12035

BOLT,Hex, M12 x 1.75 x 35mm, Cl 10.9, Full Thd

8шт.

4

76082420

ISOLATOR

kit, engine mount

2шт.

5

86625266

WASHER,17.5mm ID x 30mm OD x 4mm Thk

4шт.

6

86541970

BOLT,Hex, M16 x 100mm, Cl 10.9

2шт.

7

86512555

NUT,M16 x 2, Cl 10

2шт.

8

BN302284

WASHER,23.88mm ID x 98.55mm OD x 6.35mm Thk

Rebound, 3.88 od x .94 id x .25

4шт.

9

BN302281

ENGINE MOUNT

2шт.

10

896-11022

WASHER,24mm ID x 44mm OD x 4mm Thk

2шт.

11

87344025

NUT,Prev Torque, M22, 2.5 Pitch, Cl 10, DOR

2шт.

12

86639172

BOLT,Hex, M22 x 140mm, Cl 10.9

2шт.

13

ZPX24236

SEALANT, THREAD

Loctite - #242

1шт.

Выбрано товаров: 13
