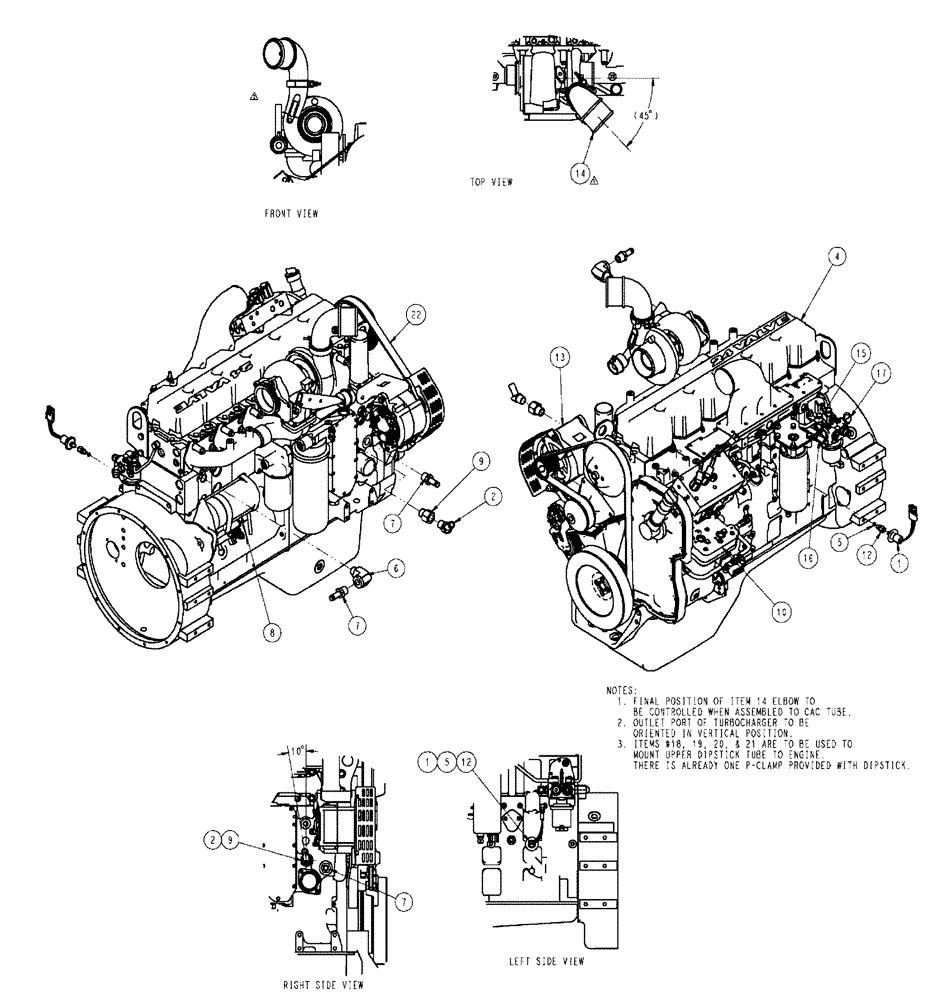

Запчасти Case IH FLX4010 (02-001) - ENGINE GROUP, FLX4010 (01) - ENGINE

1

1964960C1

PRESSURE SWITCH

oil

1шт.

2

217-145

ELBOW,45 Degree Elbow, 3/4" Hose Barb x 3/4" Male NPTF

1шт.

3

PL

PROCURE LOCALLY

1 QT, Diesel Engine, CS#1

20шт.

4

429461A1

ENGINE

QSC 300 HP, 535

1шт.

4

382365A1

BASIC ENGINE

8.3L, 24 Valve, 6 Cyl.

1шт.

4

84252737R

REMAN-BASIC ENGINE

FLX4010, FLX4510, Reman For New P/N 382365A1

1шт.

4

84252737C

CORE-BASIC ENGINE

Return Part Number

1шт.

5

84432614

O-RING,1.6mm Thk x 8.1mm ID, Cl 6, 90 Duro

1шт.

6

BN51937

ELBOW

FT, 90D, 3/4 NPTF, STL STRT

1шт.

7

217-381

FITTING,5/8" Hose Barb x 3/4" Male NPTF

2шт.

8

BN314866

Starter, 300 Cdc

1шт.

See Fig. 02-027

1шт.

9

BN317988

FITTING

12Mp-12Fp

1шт.

10

BN318787

Air Compressor Group

1шт.

12

BN319997

ADAPTER

M10 O-ring 1/8 npt

1шт.

13

BN324041

Alternator Grp, Engine

1шт.

See Fig. 02-026

1шт.

14

BN324267

3.5 Turbo Elbow

1шт.

See Fig. 02-012

1шт.

15

87268286

ELBOW

8Mb-8Fp 90

1шт.

16

217-153

FITTING,5/8" Hose Barb x 1/2" Male NPTF

1шт.

17

218-5137

ELBOW,45 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

1шт.

18

86010402

CLAMP,12.7mm, Coat, 10.3mm Bolt Hole, P Type

1шт.

19

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

1шт.

20

86624184

WASHER,9mm ID x 16mm OD x 1.6mm Thk

2шт.

21

86528579

NUT,M8 x 1.25

1шт.

22

87457995

V-BELT,3.56 mm W x 1968.50 mm L

Ribbed

1шт.

See Fig. 02-029

1шт.
