Запчасти Case IH FLX4010 (01-032) - SEAT ASSEMBLY (10) - CAB

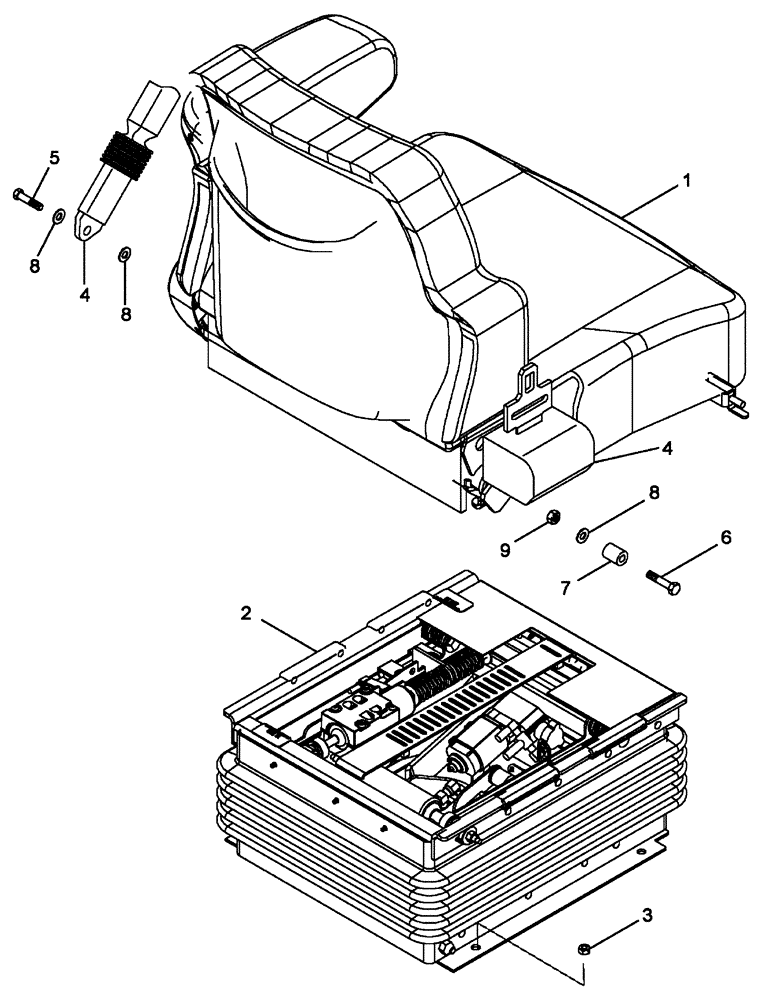

Схема запчастей Case IH FLX4010 - (01-032) - SEAT ASSEMBLY (10) - CAB
5
8
7
8
4
3
1
4
8
9
6
2

Артикул

Название

Примечание

Количество

1

87347872

SEAT ASSY.

Cloth, Without Heat

1шт.

See Fig. 01-033

1шт.

1

87453068

SEAT ASSY.

, Years: 01-JAN-05-01-JAN-06

1шт.

Indicates Old Part Number Or Can Order Newer Part Number Listed Above

1шт.

See Fig. 01-033

1шт.

1

358202A2

SEAT ASSY.

Standard, Deluxe: -JJA0108800, N.A. Only, Years: -01-JAN-05

1шт.

Indicates Old Part Number Or Can Order Newer Part Number Listed Above

1шт.

See Fig. 01-035

1шт.

2

87395380

SUSPENSION

Without Positive Reponse

1шт.

See Fig. 01-034

1шт.

3

9804277

FLANGE NUT,Hex, M8 x 1.25, Cl 8

4шт.

4

444877A1

SAFETY BELT ,50.8mm W x 1737.86mm L

1шт.

5

806-12030

BOLT,Hex, M12 x 1.75 x 30mm, Cl 10.9

1шт.

6

806-12040

BOLT,Hex, M12 x 1.75 x 40mm, Cl 10.9

1шт.

7

87313413

TUBE SPACER

.875 x .5

1шт.

8

86625255

WASHER,13.3mm ID x 24.5mm OD x 3mm Thk

3шт.

9

829-1312

NUT,M12 x 1.75, Cl 10

1шт.

Выбрано товаров: 17
