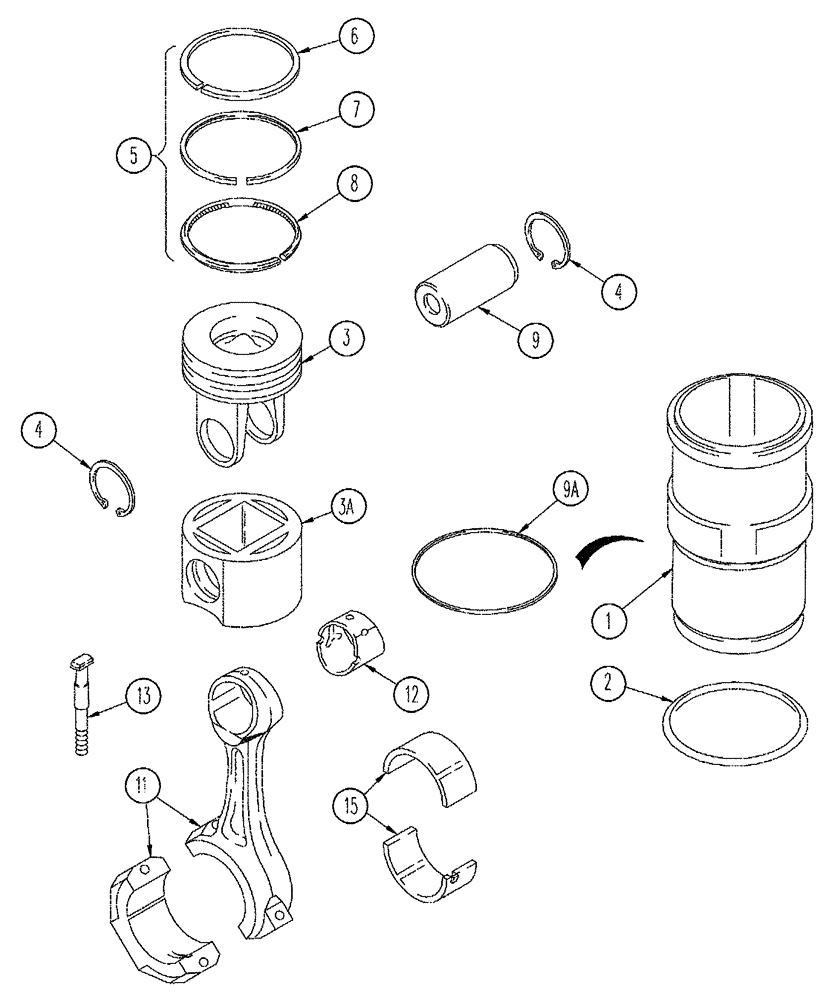

Запчасти Case IH FLX4010 (02-056) - PISTON - CONNECTING ROD, FLX4510 (01) - ENGINE

87422167

KIT

Piston, Standard

6шт.

1

J948095

SLEEVE CYLINDER,114.02mm ID x 130.95mm OD x 234.12mm L

1шт.

2

J907177

SEAL,118mm ID x 122.32mm OD x 4mm Thk

Sealing

1шт.

87422166

PISTON RINGS KIT

Piston, With Rings, Standard

1шт.

3

NSS

NOT SOLD SEPARAT

Piston

1шт.

3a

NSS

NOT SOLD SEPARAT

Skirt - Piston

1шт.

4

100-21175

SNAP RING,1.75", Int, #175

2шт.

5

J800912

PISTON RINGS KIT

Piston Ring, Standard

1шт.

6

NSS

NOT SOLD SEPARAT

Ring - Top

1шт.

7

NSS

NOT SOLD SEPARAT

Ring - Middle

1шт.

8

NSS

NOT SOLD SEPARAT

Ring - Bottom

1шт.

9

J934046

PISTON PIN,45mm OD x 91mm L

6шт.

9a

J924445

SHIM,126.8mm ID x 130.5mm OD x 0.25mm Thk

1шт.

9a

J924446

SHIM,126.8mm ID x 130.5mm OD x 0.38mm Thk

1шт.

9a

J924447

SHIM,126.8mm ID x 130.5mm OD x 0.5mm Thk

1шт.

9a

J924448

SHIM,0.762mm Thk

1шт.

9a

J924449

SHIM,1.000mm Thk

1шт.

11

JR945703

REMAN-CONNECTING ROD

Remanufactured, Component Parts Shown On This Page Do Not Apply To The Remanufactured Assembly

6шт.

11

JC945703

CORE-ROD CONNECTING

Return Number

1шт.

11

J945703

ROD

Assembly - Connecting

6шт.

12

J942087

BUSHING

Connecting Rod

1шт.

13

J944679

BOLT

Special, Rod, Bearing Cap

2шт.

15

87443389

BEARING LINER

Kit - Upper And Lower, Standard

6шт.

15

87443529

BEARING LINER

Kit - Upper And Lower, 0.25 mm Undersize

6шт.

15

A77565

BEARING SET

Kit - Connecting Rod, 0.50 mm Undersize

6шт.

15

84156221

BEARING SET

Kit - Upper and Lower, 0.75 mm Undersize

6шт.

15

87443534

BEARING LINER

Kit - Connector Rod, 1.00 mm Undersize

6шт.
