Запчасти Case IH FLX4010 (02-053) - CRANKSHAFT, FLX4010 (01) - ENGINE

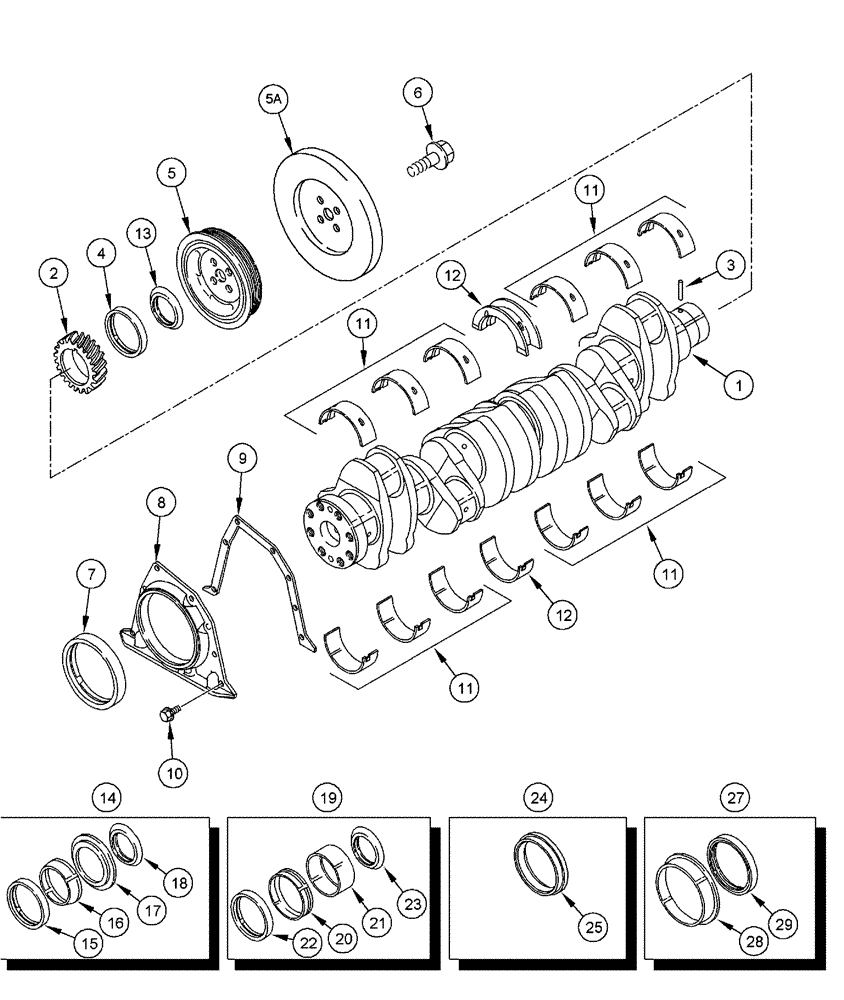

Схема запчастей Case IH FLX4010 - (02-053) - CRANKSHAFT, FLX4010 (01) - ENGINE
1
29
16
10
11
9
20
17
11
8
27
24
7
22
14
12
23
18
11
3
2
4
12
19
6
25
28
15
5a
21
11
13

Артикул

Название

Примечание

Количество

JR918986

REMAN-CRANKSHAFT

Assembly - Engine, Remanufactured, Component Parts Shown On This Page Do Not Apply To The Remanufactured Assembly

1шт.

JC918986

CORE-CRANKSHAFT

Return Number - Use This Part Number To Return Crankshaft Core For Credit When Using A Remanufactured Assembly

1шт.

J918986

CRANKSHAFT

Assembly - Engine, New

1шт.

1

NSS

NOT SOLD SEPARAT

Crankshaft

1шт.

2

J918776

GEAR

Crankshaft

1шт.

3

J904483

PIN,6.01mm OD x 8mm L

Dowel

1шт.

4

NSS

NOT SOLD SEPARAT

Seal - Oil, Front

1шт.

Order Ref. 14, A77790

1шт.

5

J943660

PULLEY

Fan

1шт.

5a

J914119

DAMPER

Vibration

1шт.

6

J914118

FLANGE BOLT,Hex, M14 x 1.5 x 60mm, Cl 12.9

Bolt - Hex Flange, Special

4шт.

7

NSS

NOT SOLD SEPARAT

Seal - Oil, Rear

1шт.

Order Ref. 24, J934486

1шт.

8

J933384

REAR COVER

Retainer - Seal

1шт.

9

J914301

GASKET

Rear Cover Retainer

1шт.

10

87015915

BOLT,Hvy Hex, M6 x 15mm, Cl 8.8, Full Thd

8шт.

11

J945930

BEARING SET

Main, Upper and Lower Set, Standard

6шт.

11

J945931

BEARING SET

Main, Upper And Lower Set, 0.25 mm Undersize

6шт.

11

J945932

BEARING SET

Main, Upper And Lower Set, 0.50 mm Undersize

6шт.

11

J945933

BEARING SET

Main, Upper And Lower Set, 0.75 mm Undersize

6шт.

11

J945734

Main, Upper And Lower Set, 1.00 MM Undersize

6шт.

12

J945929

THRUST BEARING

Main Thrust, Upper And Lower Set, Standard

1шт.

12

J945922

THRUST BEARING

Main Thrust, Upper and Lower Set, 0.25 mm Undersize

1шт.

12

J945923

THRUST BEARING

Main Thrust, Upper and Lower Set, 0.50 mm Undersize

1шт.

12

J945924

THRUST BEARING

Main Thrust, Upper and Lower Set, 0.75 mm Undersize

1шт.

12

J945925

THRUST BEARING

Main Thrust, Upper and Lower Set, 1.0 mm Undersize

1шт.

12

J945926

THRUST BEARING

Main Thrust, Upper and Lower Set, Standard JourNal Diameter, 0.25 mm Oversize Thrust Width

1шт.

12

J945927

THRUST BEARING

Main Thrust, Upper and Lower Set, Standard Journal Diameter, 0.50 mm Oversize Thrust Width

1шт.

12

J945928

THRUST BEARING

Main Thrust, Upper and Lower Set, 0.50 mm Undersize Journal Diameter, 0.50 mm Oversize Thrust Width

1шт.

13

J918113

SHIELD,74.73mm ID x 91.7mm OD x 6mm Thk

Dust

1шт.

Order Ref. 14, A77790

1шт.

14

A77790

SEAL KIT

Oil, Crankshaft Front

1шт.

15

NSS

NOT SOLD SEPARAT

Seal - Oil, Front

1шт.

16

NSS

NOT SOLD SEPARAT

Tool - Installation

1шт.

17

NSS

NOT SOLD SEPARAT

Tool - Installation

1шт.

18

J918113

SHIELD,74.73mm ID x 91.7mm OD x 6mm Thk

Dust

1шт.

19

A77808

SERVICE KIT

Wear Sleeve, Crankshaft Front

1шт.

20

NSS

NOT SOLD SEPARAT

Sleeve - Wear

1шт.

21

NSS

NOT SOLD SEPARAT

Tool - Installation

1шт.

22

NSS

NOT SOLD SEPARAT

Seal - Oil, Front

1шт.

23

J924987

SHIELD,77.14mm ID x 89.38mm OD x 6.35mm Thk

Dust

1шт.

24

J934486

SERVICE KIT

Oil Seal, Crankshaft Rear

1шт.

25

NSS

NOT SOLD SEPARAT

Seal - Oil, Rear

1шт.

26

NSS

NOT SOLD SEPARAT

Tool - Installation

1шт.

Not Shown

1шт.

26a

NSS

NOT SOLD SEPARAT

Tool - Installation

1шт.

Not Shown

1шт.

27

A77810

SERVICE KIT

Wear Sleeve, Crankshaft Rear

1шт.

28

NSS

NOT SOLD SEPARAT

Sleeve - Wear

1шт.

29

NSS

NOT SOLD SEPARAT

Seal - Oil, Rear

1шт.

Выбрано товаров: 50
