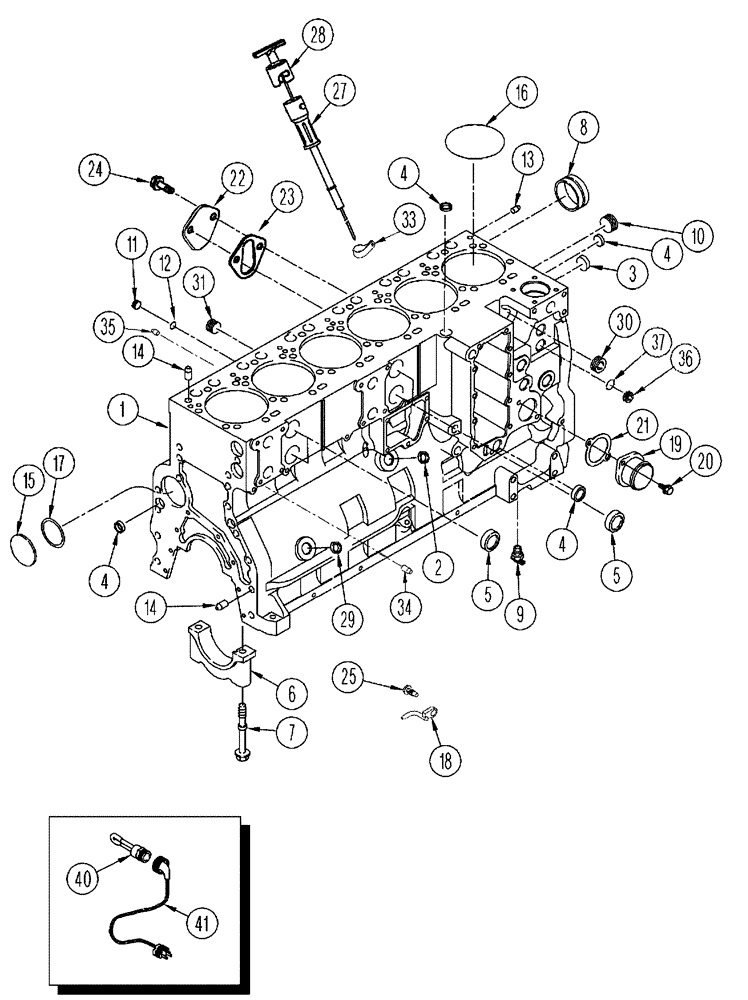

Запчасти Case IH FLX4010 (02-052) - ENGINE - CYLINDER BLOCK, FLX4510 (01) - ENGINE

0

345222A2

ENGINE

9L CDC, 350 HP

1шт.

Complete Engine Less Starter, Alternator, Flywheel, Fan, Air Cleaner, Muffler, Exhaust Pipe

1шт.

0

84372515

KIT

Includes 87444086 Cyl Block Stripped, And 87435916 Cyl Block Hardware Kit

1шт.

0

87422225

BASIC ENGINE

Assembly, Basic Service, 6TAA-9004, SN 20114 And Before

1шт.

Less Starter, Alternator, Flywheel And Housing, Fan, Fan Belt, Air Cleaner, Muffler, Exhaust Manifold And Pipe, Fuel Injection Pump, Injectors And Lines, Front Pulley, Belt Tensioner, Turbocharger

1шт.

0

87462902

ENGINE

Assembly, Basic Service, 6TAA-9004, SN 20115 And After

1шт.

Assembly, Basic Service, 6TAA-9004, SN 20115 And After

1шт.

0

87462902R

REMAN-REPLACEMENT EN

Reman Assembly, Basic Service, 6TAA-9004, SN 20115 And After

1шт.

0

Assembly, Basic Service, 6TAA-9004, SN 20115 And After

1шт.

0

87462902C

CORE-REPLACEMENT ENG

Return Number

1шт.

0

87422226

REMAN-BASIC ENGINE

Reman For New P/N 87462902

1шт.

0

87422226C

CORE-BASIC ENGINE

Return Part Number, Basic Engine

1шт.

Component Parts Shown On This Page Do Not Apply To The Remanufactured Assembly

1шт.

0

87445532

SHORT ENGINE

Short, 6TAA-9004 9.0L, 325 hp

1шт.

0

87445533

REMAN-SHORT ENGINE,6 Cylinders, W/O Turbocharger

Remanufactured, Block Assembly - Short, N.A. Only

1шт.

Component Parts Shown On This Page Do Not Apply To The Remanufactured Assembly

1шт.

0

6-900-SHBC

CORE

Return Number, Block Assembly, Engine Short, N.A. Only

1шт.

0

J939332

BASIC BLOCK

Block Assembly - Stripped, Engine

1шт.

When ordering short block assembly 87422229 or stripped block assembly J939332, order hardware kit J800901

1шт.

Consists of Refs. 1 And 3 - 8

1шт.

1

NSS

NOT SOLD SEPARAT

Block-Engine

1шт.

Part of Engine Stripped Block Assembly, P/N J939332

1шт.

3

A77586

PLUG

Expansion, 28.9 mm od

2шт.

Part of Engine Stripped Block Assembly, P/N J939332

1шт.

4

A77506

PLUG

Expansion, 21 mm od

4шт.

Part of Engine Stripped Block Assembly, P/N J939332

1шт.

5

J905401

PLUG

Expansion, 35 MM OD

4шт.

Part of Engine Stripped Block Assembly, P/N J939332

1шт.

5a

87708865

PLUG,M42 x 2

M42 - 2 Threaded Plug Used On Reman and Newer Blocks

1шт.

6

87444056

BEARING CAP,159 mm OD x 34 mm

Main Bearing

7шт.

Part of Engine Stripped Block Assembly, P/N J939332

1шт.

7

87444059

BOLT

Hex, Flange, M14 x 135

14шт.

Part of Engine Stripped Block Assembly, P/N J939332

1шт.

8

J945329

CAMSHAFT BEARING,60.08mm ID x 64.13mm OD x 25mm L

7шт.

Part of Engine Stripped Block Assembly, P/N J939332

1шт.

J800901

KIT

Block Hardware (Consists of Ref 9 - 18)

1шт.

When ordering short block assembly 87422229 or stripped block assembly J939332, order hardware kit J800901

1шт.

9

217-103

COCK, DRAIN

valve, 1/4" PT

1шт.

Part of Block Hardware Kit, P/N J800901

1шт.

10

86625135

PLUG,1" - 11-1/2 NPT

1шт.

Part of Block Hardware Kit, P/N J800901

1шт.

11

J678923

PLUG,M10 x 1

Hex Socket, 10 MM

6шт.

Part of Block Hardware Kit, P/N J800901

1шт.

12

86625087

O-RING,1.6mm Thk x 8.1mm ID, Cl 7, 75 Duro

1шт.

Part of Block Hardware Kit, P/N J800901

1шт.

13

J900257

PIN,10.01mm OD x 16mm L

10 mm x 16 mm long

2шт.

Part of Block Hardware Kit, P/N J800901

1шт.

14

J901846

PIN,12.01mm OD x 24mm L

Dowel

4шт.

Part of Block Hardware Kit, P/N J800901

1шт.

15

41-3044

PLUG,Exp, 2 3/4"

1шт.

Part of Block Hardware Kit, P/N J800901

1шт.

16

J907177

SEAL,118mm ID x 122.32mm OD x 4mm Thk

Sealing

6шт.

Part of Block Hardware Kit, P/N J800901

1шт.

17

J926048

O-RING,0.07" Thk x 2.614" ID, -38, Cl 5, 75 Duro

Sealing, 66 MM ID

1шт.

Part of Block Hardware Kit, P/N J800901

1шт.

18

J945435

NOZZLE

Piston Cooling

12шт.

Part of Block Hardware Kit, P/N J800901

1шт.

19

J913030

FITTING

Connector - Water

1шт.

20

845-8020

BOLT,Hvy Hex, M8 x 20mm, Cl 8.8

2шт.

21

J945603

GASKET,1.65mm Thk

Mounting, Water Inlet

1шт.

22

J948083

COVER

Plate

1шт.

23

J939258

GASKET,1.21mm Thk

lift pump

1шт.

24

845-8020

BOLT,Hvy Hex, M8 x 20mm, Cl 8.8

2шт.

25

J3070393

BOLT

Special, M8

6шт.

27

87418224

TUBE,13.29mm L

Dipstick

1шт.

28

87418248

DIPSTICK

Engine Oil

1шт.

29

J943808

PLUG

Expansion

1шт.

30

263136

MAGNETIC PLUG,Sq. Soc, 3/4"-14 NPTF

PLUG, MAGNETIC

1шт.

31

444704

PLUG,Hex Soc, 1/2"-14

1шт.

32

J920443

PLUG

Expansion, 30 mm od

1шт.

Not Shown

1шт.

33

A77508

CLAMP

P-Type, 7/16" id

1шт.

34

J329899

DOWEL,5.01mm OD x 10mm L

Pin

12шт.

35

J900956

PLUG

Expansion, 18 MM OD

3шт.

36

313244A1

PLUG

hex socket, 22 mm

2шт.

37

313246A1

O-RING,2.2mm Thk x 19.3mm ID

19 mm id x 2.2 mm

1шт.

310493A1

KIT

engine block heater, 120V, 1000W

1шт.

40

NSS

NOT SOLD SEPARAT

Element-120 Volt

1шт.

41

87105748

ELECTRIC CABLE,120V, 15A

1829 mm (72") (Engine Block Heater, 120 Volt)

1шт.

310494A1

KIT

engine block heater, 240V, 1000W

1шт.

40

NSS

NOT SOLD SEPARAT

Element-240 Volt

1шт.

41

J913112

WIRE HARNESS

Cable - Heater-240 Volt

1шт.
