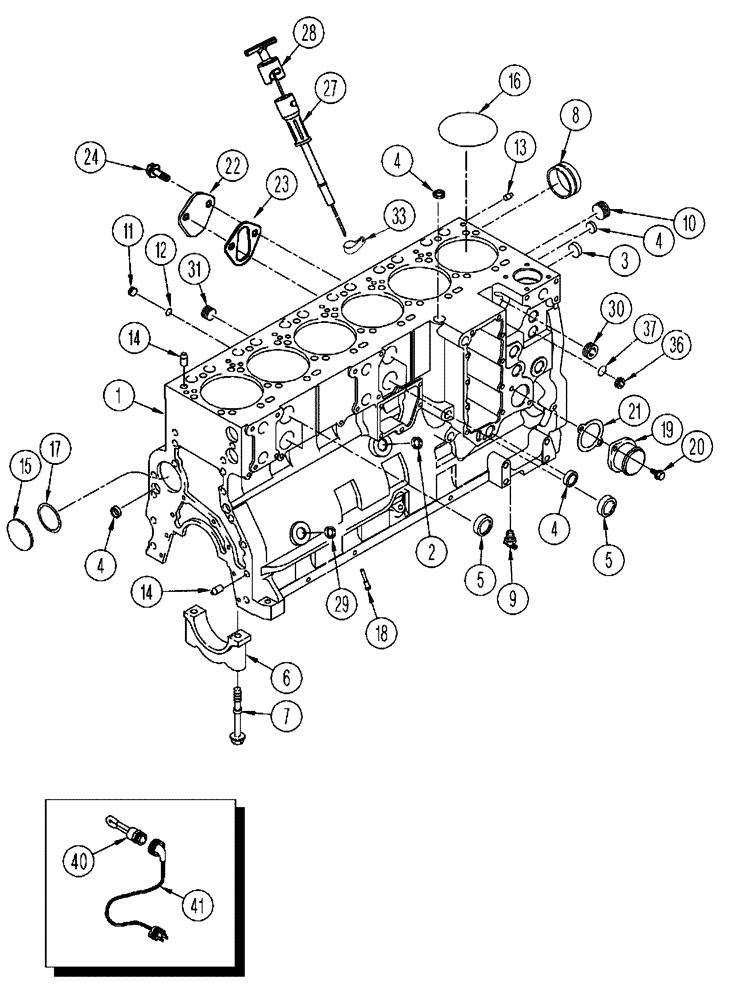

Запчасти Case IH FLX4010 (02-051) - ENGINE - CYLINDER BLOCK, FLX4010 (01) - ENGINE

429461A1

ENGINE

QSC 300 HP, 535

1шт.

Complete Engine Less Starter, Alternator, Flywheel, Fan, Air Cleaner, Muffler, Exhaust Pipe

1шт.

382365A1

BASIC ENGINE

8.3L, 24 Valve, 6 Cyl.

1шт.

Less Starter, Alternator, Flywheel And Housing, Fan, Fan Belt, Air Cleaner, Muffler, Exhaust Manifold And Pipe, Oil Fill And Dipstick, Fuel Injection Pump, Injectors And Lines, Front Pulley, Belt Ten-Sioner, Turbocharger

1шт.

Component Parts Shown On This Page Do Not Apply To The Remanufactured Assembly

1шт.

84252737R

REMAN-BASIC ENGINE

FLX4010, FLX4510, Reman For New P/N 382365A1

1шт.

84252737C

CORE-BASIC ENGINE

Return Part Number

1шт.

J991308

SHORT ENGINE

Block Assembly- New

1шт.

When ordering short block assembly J991308 or stripped block assembly J939299, order hardware kit J800332

1шт.

Includes Stripped Block, Pistons, Connecting Rods And Bearings, Crankshaft And Bearings

1шт.

JR991308

REMAN-SHORT ENGINE

1шт.

Component Parts Shown On This Page Do Not Apply To The Remanufactured Assembly

1шт.

6830SHBC

CORE-SHORT ENGINE

Return Part Number, Engine, Short Block Cyl.

1шт.

84271502

KIT

KIT, CYLINDER BLOCK CUMMINS 4089078

1шт.

J939299

BASIC BLOCK

Block Assembly - Stripped, Engine

1шт.

When ordering short block assembly J991308 or stripped block assembly J939299, order hardware kit J800332

1шт.

Consists of Refs. 1 and 3 - 8

1шт.

1

NSS

NOT SOLD SEPARAT

Block-Engine

1шт.

Part of Engine Stripped Block Assembly, P/N J939299

1шт.

3

A77586

PLUG

Expansion, 28.9 mm od

2шт.

Part of Engine Stripped Block Assembly, P/N J939299

1шт.

4

A77506

PLUG

Expansion, 21 mm od

4шт.

Part of Engine Stripped Block Assembly, P/N J939299

1шт.

5

J905401

PLUG

Expansion, 35 MM OD

4шт.

Part of Engine Stripped Block Assembly, P/N J939299

1шт.

5a

87708865

PLUG,M42 x 2

M42 - 2 Threaded Plug Used On Reman and Newer Blocks

1шт.

6

87444059

BOLT

Hex, Flange, M14 x 135

7шт.

Part of Engine Stripped Block Assembly, P/N J939299

1шт.

7

87444059

BOLT

Hex, Flange, M14 x 135

14шт.

Part of Engine Stripped Block Assembly, P/N J939299

1шт.

8

J945329

CAMSHAFT BEARING,60.08mm ID x 64.13mm OD x 25mm L

Bushing

7шт.

Part of Engine Stripped Block Assembly, P/N J939299

1шт.

J800332

KIT

Block Hardware

1шт.

When ordering short block assembly J991308 or stripped block assembly J939299, order hardware kit J800332

1шт.

Consists of Refs. 9 - 18

1шт.

9

217-103

COCK, DRAIN

valve, 1/4" PT

1шт.

Part of Block Hardware Kit, P/N J800332

1шт.

10

86625135

PLUG,1" - 11-1/2 NPT

1шт.

Part of Block Hardware Kit, P/N J800332

1шт.

11

J678923

PLUG,M10 x 1

Hex Socket, 10 MM

6шт.

Part of Block Hardware Kit, P/N J800332

1шт.

12

86625087

O-RING,1.6mm Thk x 8.1mm ID, Cl 7, 75 Duro

1шт.

Part of Block Hardware Kit, P/N J800332

1шт.

13

J900257

PIN,10.01mm OD x 16mm L

10 mm x 16 mm long

2шт.

Part of Block Hardware Kit, P/N J800332

1шт.

14

J901846

PIN,12.01mm OD x 24mm L

Dowel

4шт.

Part of Block Hardware Kit, P/N J800332

1шт.

15

41-3044

PLUG,Exp, 2 3/4"

1шт.

Part of Block Hardware Kit, P/N J800332

1шт.

16

J907177

SEAL,118mm ID x 122.32mm OD x 4mm Thk

Sealing

6шт.

Part of Block Hardware Kit, P/N J800332

1шт.

17

J926048

O-RING,0.07" Thk x 2.614" ID, -38, Cl 5, 75 Duro

Sealing, 66 MM ID

1шт.

Part of Block Hardware Kit, P/N J800332

1шт.

18

J928031

NOZZLE,8.5mm OD x 30mm L

Piston Cooling

12шт.

Part of Block Hardware Kit, P/N J800332

1шт.

19

J913030

FITTING

Connector - Water

1шт.

20

845-8020

BOLT,Hvy Hex, M8 x 20mm, Cl 8.8

2шт.

21

J945603

GASKET,1.65mm Thk

Mounting, Water Inlet

1шт.

22

J948083

COVER

Plate

1шт.

23

J939258

GASKET,1.21mm Thk

lift pump

1шт.

24

845-8020

BOLT,Hvy Hex, M8 x 20mm, Cl 8.8

2шт.

27

87418224

TUBE,13.29mm L

Dipstick

1шт.

28

87418222

DIPSTICK

Engine Oil

1шт.

29

J943808

PLUG

Expansion

1шт.

30

263136

MAGNETIC PLUG,Sq. Soc, 3/4"-14 NPTF

PLUG, MAGNETIC

1шт.

31

444704

PLUG,Hex Soc, 1/2"-14

1шт.

32

J920443

PLUG

Expansion, 30 mm od

1шт.

Not Shown

1шт.

33

A77508

CLAMP

P-Type, 7/16" id

1шт.

36

313244A1

PLUG

hex socket, 22 mm

2шт.

37

313246A1

O-RING,2.2mm Thk x 19.3mm ID

19 mm id x 2.2 mm

1шт.

310493A1

KIT

engine block heater, 120V, 1000W

1шт.

40

NSS

NOT SOLD SEPARAT

Element-120 Volt

1шт.

41

87105748

ELECTRIC CABLE,120V, 15A

1829 mm (72") (Engine Block Heater, 120 Volt)

1шт.

310494A1

KIT

engine block heater, 240V, 1000W

1шт.

40

NSS

NOT SOLD SEPARAT

Element-240 Volt

1шт.

41

J913112

WIRE HARNESS

Cable - Heater-240 Volt

1шт.
