Запчасти Case IH FLX4010 (02-021) - COMPRESSOR GROUP, A/C (01) - ENGINE

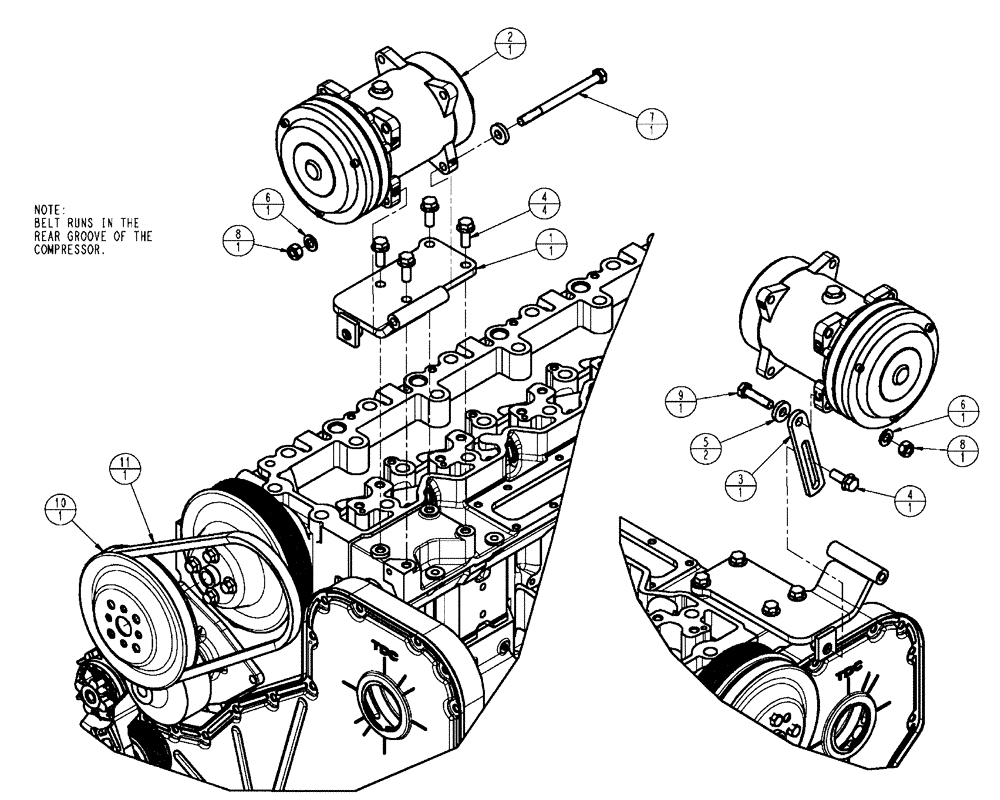

Схема запчастей Case IH FLX4010 - (02-021) - COMPRESSOR GROUP, A/C (01) - ENGINE
9
1
6
4
5
4
8
2
3
11
6
7
8
10

Артикул

Название

Примечание

Количество

1

87272605

MOUNTING PARTS

A/C Compressor

1шт.

2

86993462

AIRCOND. COMPRESSOR

12V Double Groove

1шт.

86993462R

REMAN-COMPRESSOR

FLX4010, FLX4510 both (8/04-8/06)

1шт.

86993462C

CORE-COMPRESSOR

Return Number

1шт.

48017123R

REMAN-A/C COMP KIT

Reman Kit -- A/C Compressor, Receiver-Dryer, Valve

1шт.

48017123C

REMAN-A/C COMP KIT

Return Number

1шт.

3

84716C1

SUPPORT

Strap, Adjusting Compressor

1шт.

4

905-10025

BOLT,Hex Flg, M10 x 25mm

5шт.

5

3120737R1

WASHER,10.8mm ID x 25mm OD x 5mm Thk

10.8 x 25 x 5 mm

2шт.

6

140017

WASHER,M10 x 20mm OD x 2mm Thk

2шт.

7

86980413

BOLT,Hex, M10 x 1.5 x 130mm, Cl 8.8

1шт.

8

86980515

NUT,Hex, M10 x 1.5, Cl 8.8, DOR

2шт.

9

86980403

BOLT,Hex, M10 x 1.5 x 40mm, Cl 8.8, Full Thd

1шт.

10

J919624

PULLEY

Compressor Drive, Years: -01-SEP-09

1шт.

11

90-7190T1

V-BELT,0.56" W x 40.25" L

1шт.

10

84167711

PULLEY,179.56mm OD

Compressor Drive, Start Year: 01-SEP-09

1шт.

Выбрано товаров: 16
