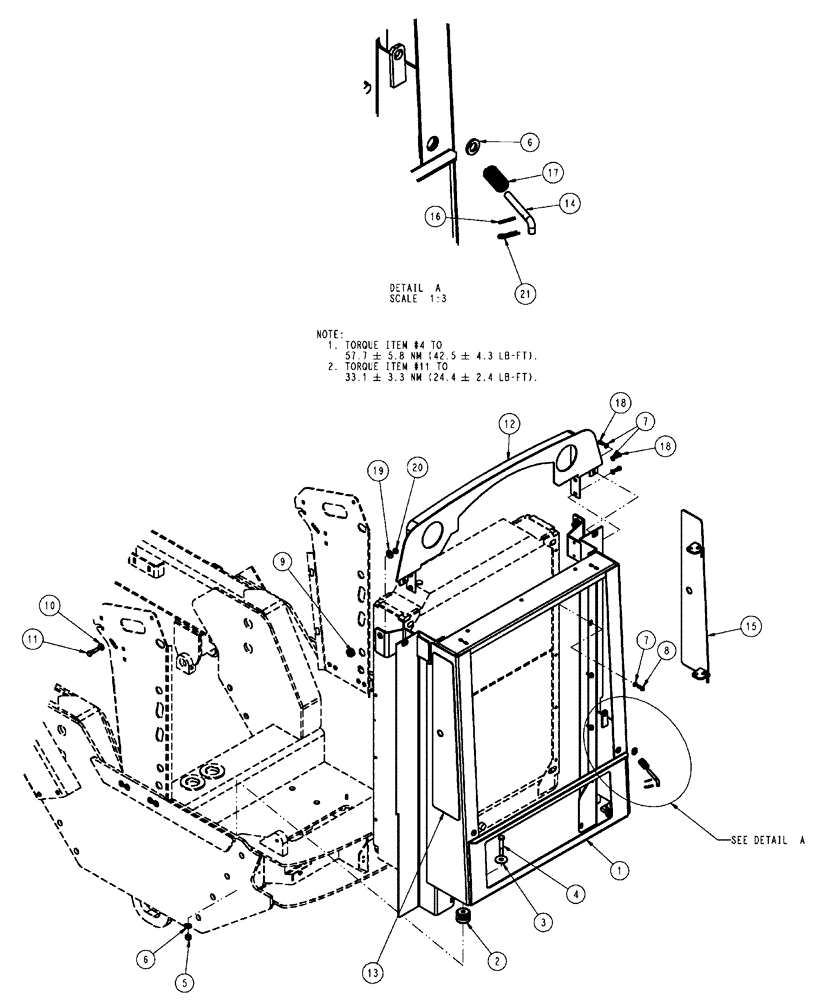

Запчасти Case IH FLX4010 (02-016) - RADIATOR MOUNTING GROUP (01) - ENGINE

1

87268754

MOUNTING PLATE

Radiator

1шт.

2

700707039

RUBBER MOUNTING

Isolator

2шт.

3

495-71053

WASHER,13.49mm ID x 44.45mm OD x 2.54mm Thk

2шт.

4

814-12070

BOLT,Hex, M12 x 1.75 x 70mm, Cl 8.8

2шт.

5

100038

NUT,M12 x 1.75, Cl 8

2шт.

6

86625255

WASHER,13.3mm ID x 24.5mm OD x 3mm Thk

4шт.

7

87529316

WASHER,9mm ID x 21mm OD x 2.5mm Thk

16шт.

8

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

10шт.

9

179601A1

RUBBER BLOCK

RUBBER BLOCK Mount, Isolator

2шт.

10

86639325

WASHER,10.8mm ID x 24.5mm OD x 3mm Thk

2шт.

11

120112

BOLT,Hex, M10 x 1.5 x 40mm, Cl 8.8, Full Thd

2шт.

12

344154A1

SUPPORT

Hood Seal

1шт.

13

87267454

DOOR

Cooler CS

1шт.

14

381794A1

ROD

Cooler Access Door

2шт.

15

87267455

DOOR

Cooler RS

1шт.

16

86637813

PIN,3.17mm OD x 25mm L, Coiled

2шт.

17

L129280

SPRING

Compression

2шт.

18

16043224

BOLT,Hex, M8 x 16mm, Cl 8.8

6шт.

19

86624186

WASHER,0.41" ID x 1.12" OD x 0.13" Thk

2шт.

20

100037

LOCK NUT,M10 x 1.5, Cl 8

2шт.

21

19-5380

PIN

Hair

2шт.
