Запчасти Case IH FLX4010 (02-015) - RADIATOR COMPONENTS GROUP (01) - ENGINE

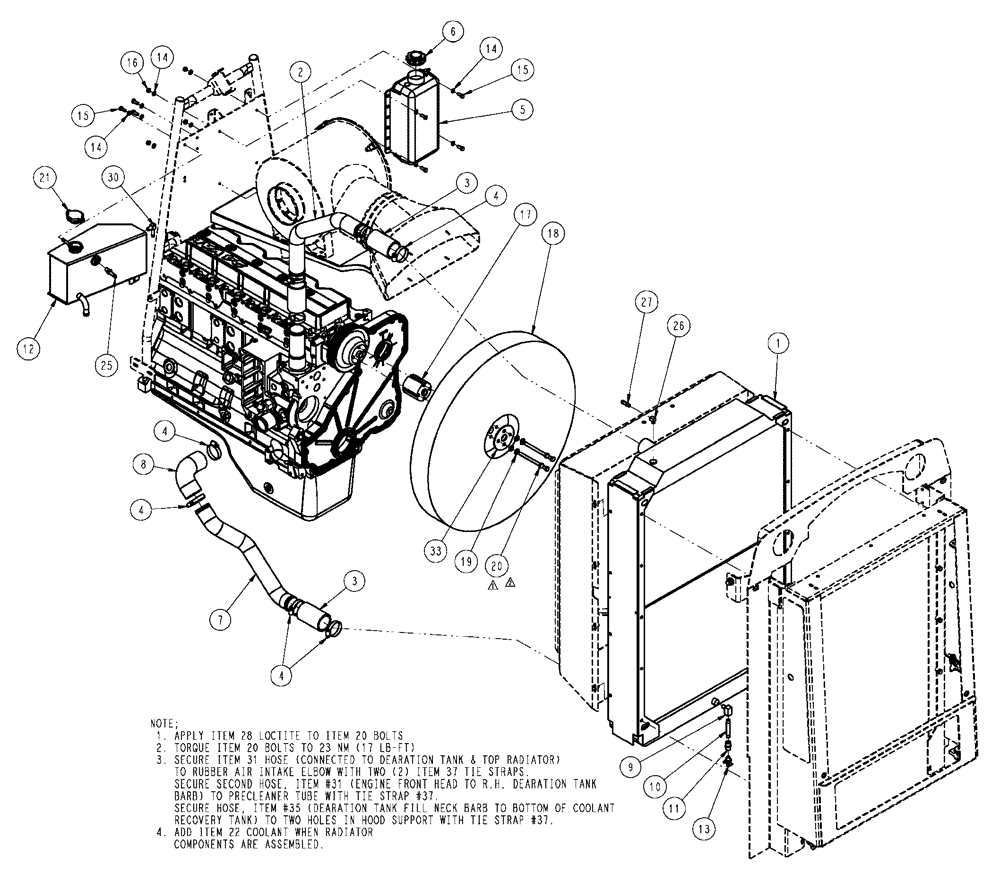

Схема запчастей Case IH FLX4010 - (02-015) - RADIATOR COMPONENTS GROUP (01) - ENGINE
5
15
10
6
4
14
4
13
18
7
33
25
19
21
30
4
1
14
26
14
12
27
8
17
11
20
2
3
16
9
3
4
15

Артикул

Название

Примечание

Количество

1

259331A1

RADIATOR

Engine

1шт.

2

343406A1

PIPE

Upper Radiator

1шт.

3

BN324394

RADIATOR HOSE,57.00 mm ID x 110.00 mm, SAE J20, SAE 20R4

Straight Radiator Coupling

3шт.

4

343199A1

HOSE CLAMP

#44, 304 SS

8шт.

5

87481454

BOTTLE

Tank, Coolant Recovery, 5 qt

1шт.

6

1547924C1

CAP

coolant recovery bottle

1шт.

7

343407A1

PIPE

Lower Radiator

1шт.

8

BN324392

RADIATOR HOSE,57.00 mm ID x 110.00 mm, SAE 20R4 Class D1 per SAE J20

Lower Engine

1шт.

9

217-1015

ELBOW,1/4" - 18 Female x 1/4" - 18 Male

1шт.

10

87266873

NIPPLE

1/4" NPT x 3.0 SS

1шт.

11

217-1101

HYD CONNECTOR,1/4"-18 NPTF, Female

1шт.

12

344297A1

TANK

de-aeration

1шт.

13

86625234

DRAINCOCK/TAP SUPPLY,1/4" NPTF

Valve, 1/4" Weatherhead

1шт.

14

86624184

WASHER,9mm ID x 16mm OD x 1.6mm Thk

11шт.

15

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

7шт.

16

86528579

NUT,M8 x 1.25

9шт.

17

A184751

SPACER,Fan, 74/75mm Thk

Fan, 75 mm

1шт.

18

BN324918

FAN

30.50" Poly

1шт.

19

86625252

WASHER,10.8mm ID x 21.5mm OD x 2.5mm Thk

4шт.

20

86556139

BOLT,Hex, M10 x 110mm, Cl 10.9

4шт.

21

A170241

RADIATOR CAP

15 psi

1шт.

22

331-512

ANTIFREEZE

mixed 50-50

1шт.

23

214-1704

HOSE CLAMP,#04, 0.25" - 0.62", Type M Worm

7шт.

25

87017579

FITTING,3/8" Hose X 1/4" NPTF Beaded

1шт.

26

87267458

ELBOW

90 Street, 1/8 NPT

1шт.

27

87267457

HOSE

Barb, 3/8 X 1/8 NPT

1шт.

28

ZPX24236

SEALANT, THREAD

Loctite - #242

1шт.

30

217-132

90 ELBOW,90 Degree Elbow, 3/8" Hose Barb x 1/4" Male NPTF

1шт.

31

BN311051

HOSE,0.38" ID x 36.00", SAE 30R6, SAE 30R7

Fuel

2шт.

32

87266870

HOSE,0.75" ID x 31.00"

1шт.

33

87267456

WASHER

Fan Blade

1шт.

34

BN319781

Recovery Overflow

1шт.

35

BN323801

5/16" ID X 28.375"

1шт.

36

9706921

HOSE CLAMP,12.7mm - 35mm

2шт.

37

BN570007

STRAP

Black Only .12-4.0 Band

4шт.

38

BN53479

HOSE,1.00" ID BULK

EPDM Discharge

1шт.

Not Shown

1шт.

Cut 5.9" from bulk roll

1шт.

39

435437A1

CABLE TIE,3/16" x 7 1/4"

CABLE STRAP

2шт.

Not Shown

1шт.
