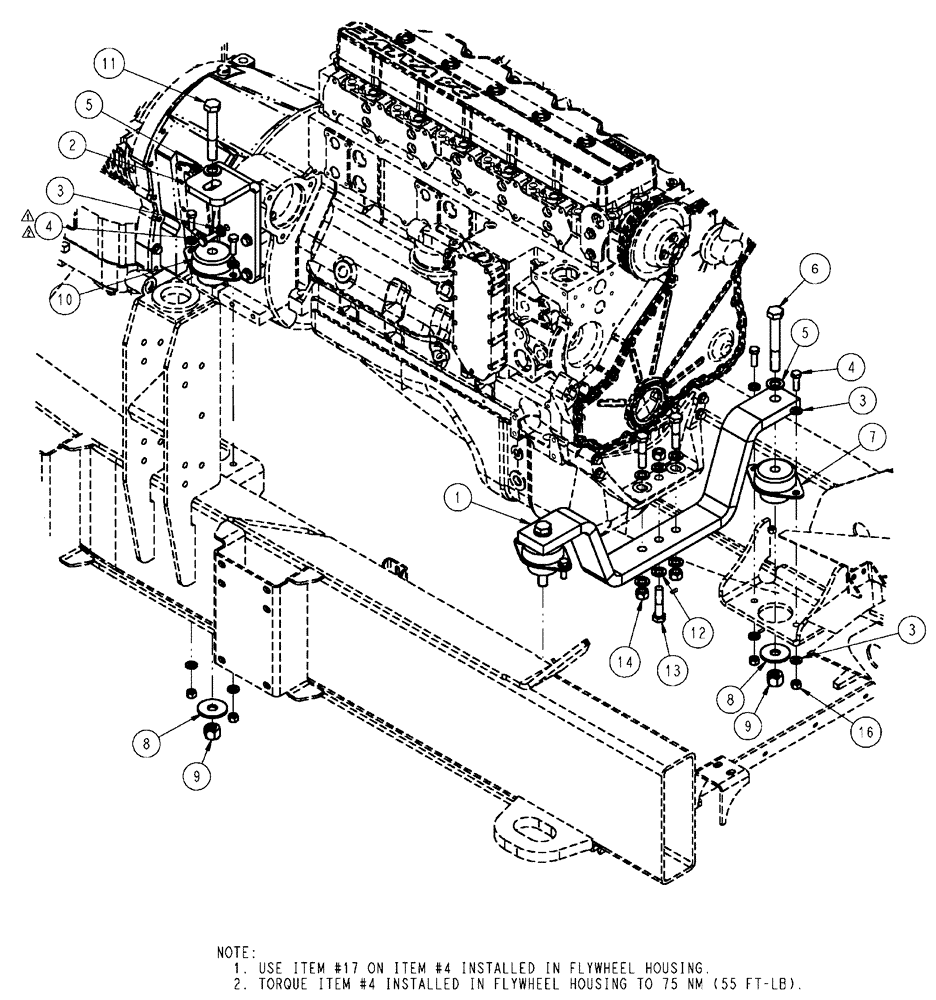

Запчасти Case IH FLX3510 (02-003) - ENGINE MOUNTS GROUP (01) - ENGINE

1

BN322759

CROSSMEMBER

Engine

1шт.

2

BN322752

PLATE

Rear Engine Mount

2шт.

3

86625255

WASHER,13.3mm ID x 24.5mm OD x 3mm Thk

8шт.

4

626-12035

BOLT,Hex, M12 x 1.75 x 35mm, Cl 10.9, Full Thd

16шт.

5

86625260

WASHER,21.8mm ID x 37.5mm OD x 4mm Thk

4шт.

6

84025013

BOLT,Hex, M20 x 140mm, Cl 10.9

2шт.

7

BN322889

MOUNTING PLATE

Front Engine

2шт.

8

BN322925

WASHER

Rebound M20

4шт.

9

264031

NUT,M20 x 2.5, Cl 10

4шт.

10

BN324263

MOUNTING PLATE

Rear Engine

2шт.

11

86639145

BOLT,Hex, M20 x 130mm, Cl 10.9

2шт.

12

86625266

WASHER,17.5mm ID x 30mm OD x 4mm Thk

6шт.

13

9847468

BOLT,Hex, M16 x 2 x 70mm, Cl 10.9

3шт.

14

832-46416

NUT,M16 x 2, Cl 8

3шт.

16

100038

NUT,M12 x 1.75, Cl 8

8шт.
