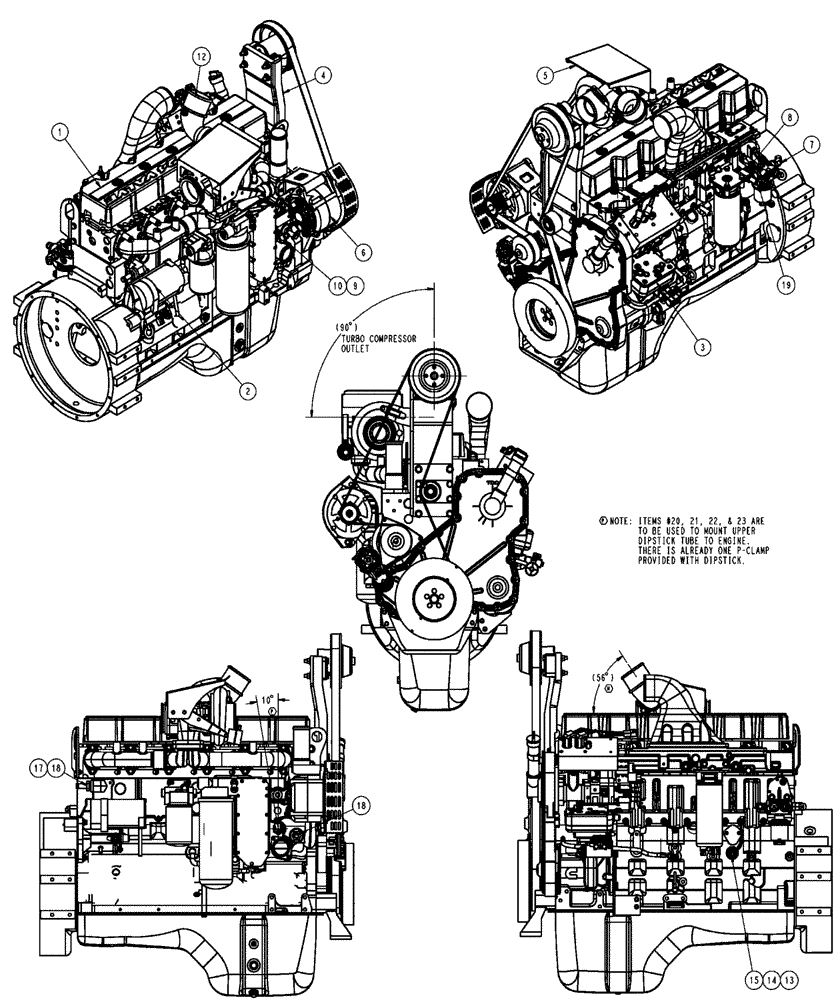

Запчасти Case IH FLX3510 (02-002) - ENGINE GROUP, FLX3510 (01) - ENGINE

1

87462902

ENGINE

9L Encore, 365, T2, Start Serial: 20114

1шт.

1

87462902R

REMAN-REPLACEMENT EN

Reman For New P/N 87462902, 9L Encore, 365, T2

1шт.

1

87462902C

CORE-REPLACEMENT ENG

Return Part Number

1шт.

1

345222A2

ENGINE

9L CDC, 350 HP

1шт.

Indicates Old Part Number Or Can Order Newer Part Number Listed Above

1шт.

1a

87422225

BASIC ENGINE

Assembly, Basic Service, 6TAA-9004

1шт.

1a

87422226

REMAN-BASIC ENGINE

Reman For New P/N 87422225

1шт.

1a

87422226C

CORE-BASIC ENGINE

Return Part Number, Engine

1шт.

1b

87445532

SHORT ENGINE

Short, 6TAA-9004 9.0L, 325 hp

1шт.

1b

87445533

REMAN-SHORT ENGINE,6 Cylinders, W/O Turbocharger

1шт.

1b

6-900-SHBC

CORE

Return Number

1шт.

2

86624184

WASHER,9mm ID x 16mm OD x 1.6mm Thk

2шт.

2

BN314866

Starter Group, 300 CDC

1шт.

3

BN318784

Air Compressor Group

1шт.

4

BN324095

Fan Drive Lift

1шт.

See Fig. 02-030

1шт.

5

87266633

SHIELD

Turbo Heat

1шт.

6

BN324041

Alternator Group, Engine

1шт.

See Fig. 02-029

1шт.

7

218-5137

ELBOW,45 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

1шт.

8

87268286

ELBOW

8Mb-8Fp 90

1шт.

9

BN317988

FITTING

12Mp-12Fp

1шт.

10

217-145

ELBOW,45 Degree Elbow, 3/4" Hose Barb x 3/4" Male NPTF

1шт.

11

PL

PROCURE LOCALLY

1 Qt, DSL Engine, Cs#1

24шт.

12

BN324267

3.5 Turbo Elbow

1шт.

See Fig. 02-017

1шт.

13

1964960C1

PRESSURE SWITCH

oil

1шт.

14

84432614

O-RING,1.6mm Thk x 8.1mm ID, Cl 6, 90 Duro

1шт.

15

BN319997

ADAPTER

M10 O-ring 1/8 npt

1шт.

17

BN51937

ELBOW

Hosebarb, 1/2 NPTF, STL STRT

1шт.

18

217-381

FITTING,5/8" Hose Barb x 3/4" Male NPTF

2шт.

19

217-153

FITTING,5/8" Hose Barb x 1/2" Male NPTF

1шт.

20

86010402

CLAMP,12.7mm, Coat, 10.3mm Bolt Hole, P Type

1шт.

21

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

1шт.

23

86528579

NUT,M8 x 1.25

1шт.
