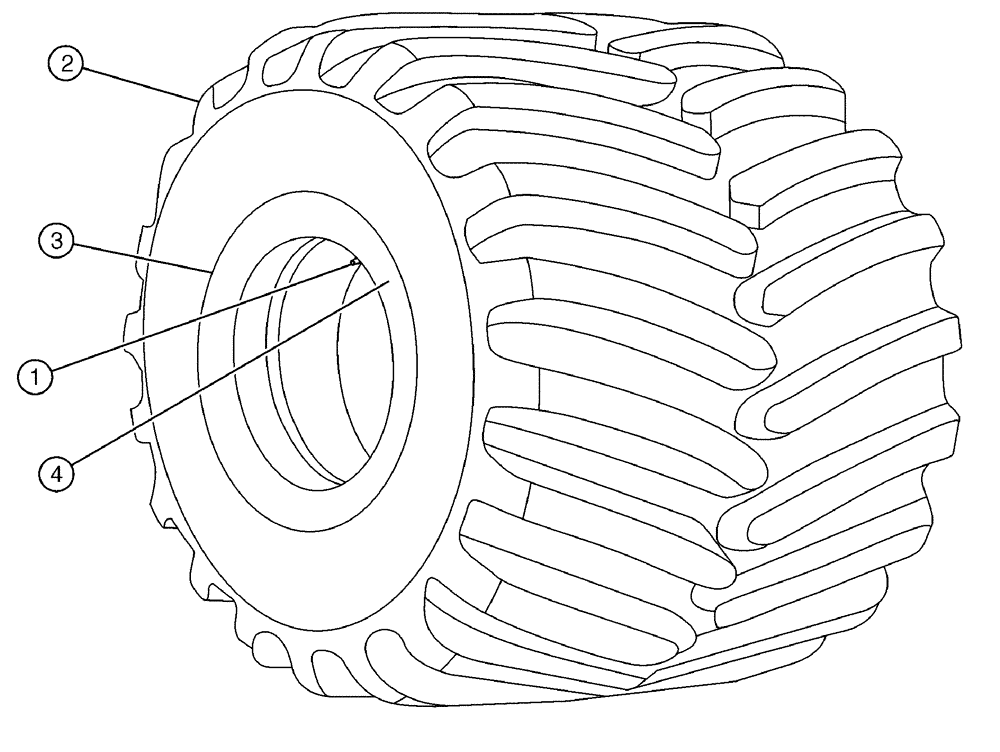

Запчасти Case IH FLX3510 (05-002[01]) - FRONT TIRE GROUP (TIRE ASSEMBLY, 66 X 43, 16P, FS) Tires

0

NS

NOT SERVICED

MTD Front, 66, 16 Ply, FS

1шт.

1

PL

PROCURE LOCALLY

Tubeless Tire

1шт.

2

PL

PROCURE LOCALLY

66 X 43-25, Tire 16 Ply, FS

1шт.

Contact Your Local Tire Dealer For Tire Warranty And Replacement Tires.

1шт.

3

BN322353

WHEEL

front

1шт.

4

333089A1

DECAL

torque wheel nuts

1шт.

827-22080

BOLT,Hex, M22 x 2.5 x 80mm, Cl 10.9

10шт.

Associated Part Of Decal-Torque Wheel Nuts, P/N 333089A1

1шт.

896-11022

WASHER,24mm ID x 44mm OD x 4mm Thk

10шт.

Associated Part Of Decal-Torque Wheel Nuts, P/N 333089A1

1шт.

BN2391858

O-RING

OR25T Black

1шт.

Service Parts For Ref. 4

1шт.

BN2297235

LOCKING RING

LR25T

1шт.

Service Parts For Ref. 4

1шт.

BN2396615

FLANGE

FL025T

1шт.

Service Parts For Ref. 4

1шт.
