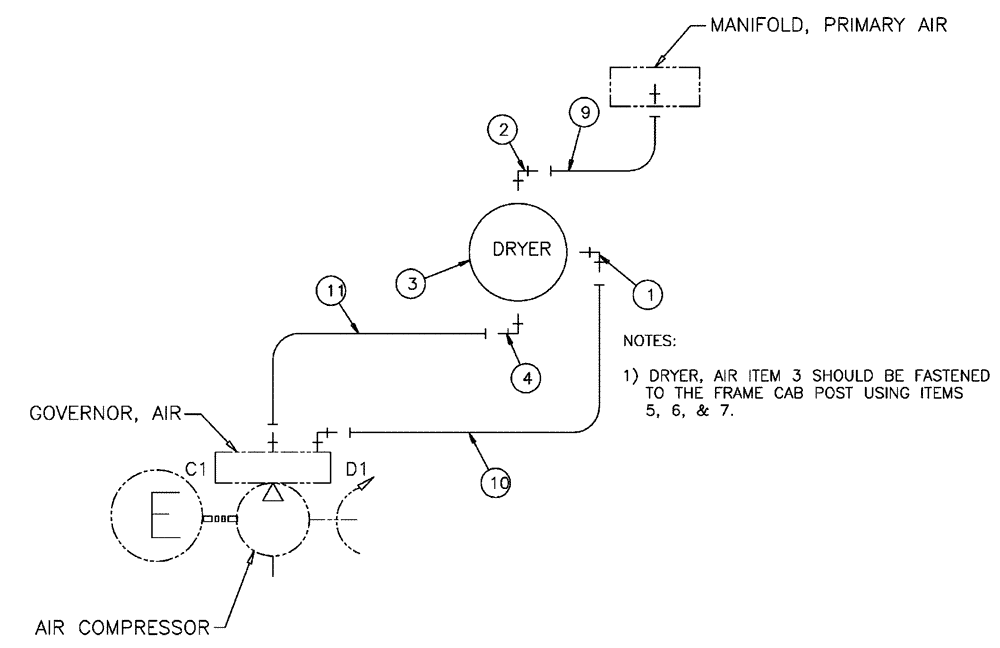

Запчасти Case IH FLX3510 (07-015) - AIR DRYER GROUP Pneumatics

1

BN2290148

ELBOW

4MJ - 2MP 90º

1шт.

2

BN2290508

ELBOW

2103-8-8

1шт.

3

BN2296407

FILTER ASSY

Air Dryer (Spin On)

1шт.

4

BN2390690

FITTING

5603-8-10

1шт.

5

120112

BOLT,Hex, M10 x 1.5 x 40mm, Cl 8.8, Full Thd

4шт.

6

100037

LOCK NUT,M10 x 1.5, Cl 8

4шт.

7

86639325

WASHER,10.8mm ID x 24.5mm OD x 3mm Thk

8шт.

9

342921A1

HOSE

8 x 60"

1шт.

10

BN322680

HOSE

Assembly, 4 X 70"

1шт.

11

342822A1

HOSE,12.7mm ID x 1524mm L

10 x 60"

1шт.
