(07-013) - TWO-SPEED PNEUMATIC GROUP "SERIAL # 6700 AND LATER"

Запчасти Case IH FLX3510 (07-013) - TWO-SPEED PNEUMATIC GROUP "SERIAL # 6700 AND LATER" Pneumatics

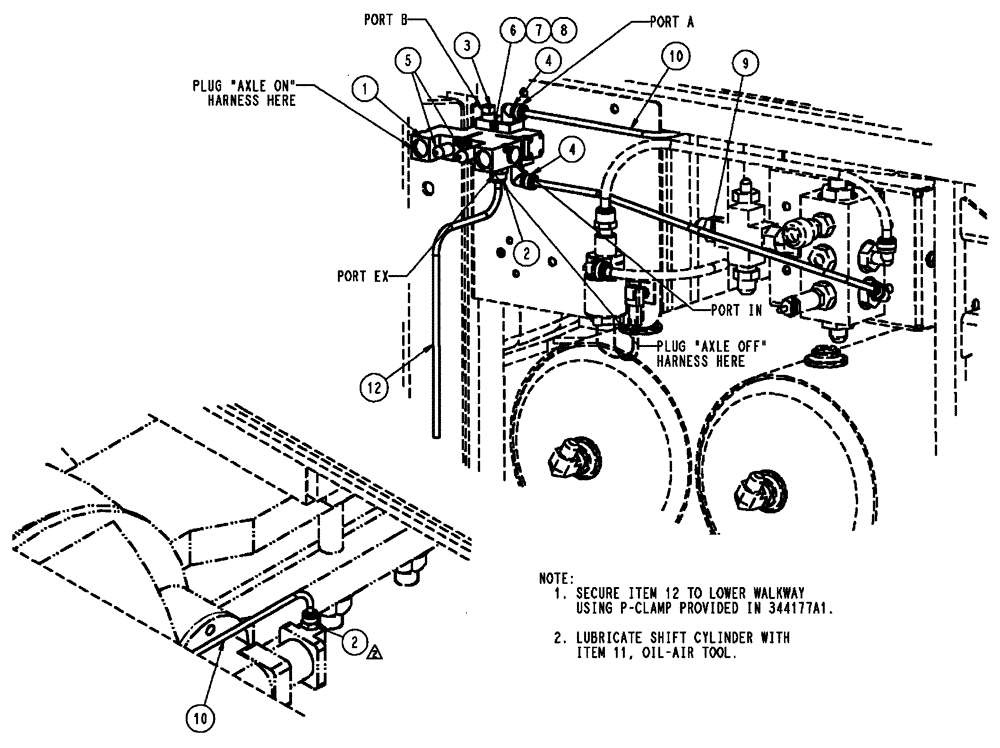

Схема запчастей Case IH FLX3510 - (07-013) - TWO-SPEED PNEUMATIC GROUP "SERIAL # 6700 AND LATER" Pneumatics
7
9
6
5
4
2
2
10
3
12
4
8
10
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87271289

PNEUMATIC VALVE

Air, With Harness

1шт.

See Fig. 07-017

1шт.

2

BN2399401

ADAPTER

Male, 1/4" Tube

2шт.

3

9617020

PLUG,1/4" - 18 x 0.48"

1шт.

4

BN2399404

90 ELBOW

1/4" MPT x 1/4" OD Tube, Push Lock Fitting

2шт.

5

BN23041

MUFFLER

Air Valve 1/8" NPT

2шт.

6

840-1535

SCREW,Pan, M5 x 35mm, Cl 4.8

2шт.

7

86625261

WASHER,5.5mm ID x 10mm OD x 1mm Thk

2шт.

8

87344030

NUT,Prevailing Torque, M5 x 0.8, CL 8, DOR

2шт.

9

BN2292089

AIR INTAKE TUBE

Synflex, 1/4" Bulk

1шт.

Cut 16.75" from bulk roll

1шт.

10

87268009

TUBE,0.25" DIA

Green, 1/4 X 235"

1шт.

12

BN2393052

TUBE,1/4" X 100' BULK, SAE J844, YELLOW

Air, Synflex 1/4" Yellow, Bulk

2шт.

Cut 21" from bulk roll

1шт.
