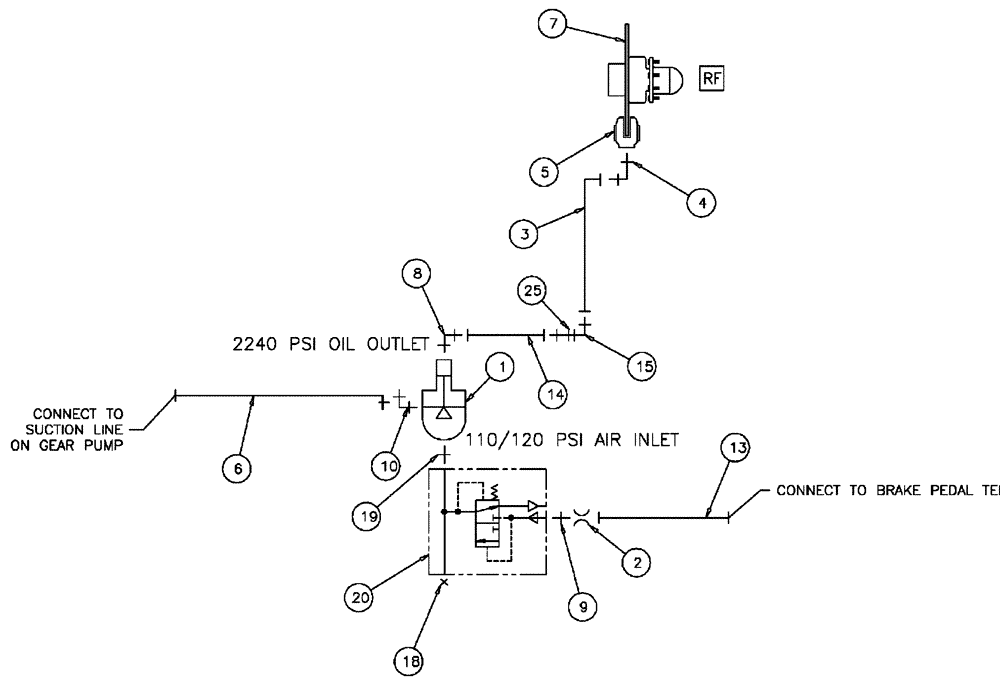

Запчасти Case IH FLX3510 (07-007) - FRONT BRAKE GROUP Pneumatics

1

BN324947

Actuator Group, Air/HYD.

1шт.

See Fig. 07-011

1шт.

2

87267034

ORIFICE,9/16" - 18 Male JIC x 9/16" - 18 Female JIC, 1.91mm ID

.075, -6 JIC

1шт.

3

86986083

HOSE

4 x 63"

1шт.

4

BN302418

ELBOW

4MOR 4MB X 90 LL

1шт.

5

NS

NOT SERVICED

Caliper Assembly

1шт.

See Fig. 07-008

1шт.

6

BN307843

HOSE

Assembly, 6 X 97

1шт.

7

BN301666

BRAKE DISC

27.875" Dia.

1шт.

8

BN302547

90 ELBOW

9/16-18 x 7/16-20, ZND

1шт.

9

BN2293122

FITTING

0103-8-6

1шт.

10

BN302551

FITTING

6Mor-4Mb X 90

1шт.

11

827-22080

BOLT,Hex, M22 x 2.5 x 80mm, Cl 10.9

10шт.

12

896-11022

WASHER,24mm ID x 44mm OD x 4mm Thk

10шт.

13

86986291

HOSE

8 x 88"

1шт.

14

86986060

HOSE

4 X 97"

1шт.

15

201-300

ELBOW,90 Degree Elbow, 9/16" - 18 Male ORFS x 9/16" - 18 Male ORFS

1шт.

16

86010402

CLAMP,12.7mm, Coat, 10.3mm Bolt Hole, P Type

5шт.

17

86528579

NUT,M8 x 1.25

5шт.

18

BN51136

PLUG

3/8-18 NPT, HH

1шт.

19

BN51665

FITTING

CPL, ML PI, 3/8-3/8

1шт.

20

BN2298276

PNEUMATIC VALVE

Quick Release

1шт.

21

87265300

PROTECTION PLATE

Shield, Brake Hose

1шт.

22

86639325

WASHER,10.8mm ID x 24.5mm OD x 3mm Thk

2шт.

23

43140

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8

2шт.

24

86624184

WASHER,9mm ID x 16mm OD x 1.6mm Thk

5шт.

25

86525

LOCK NUT,Blkhd, 9/16"-18

1шт.
