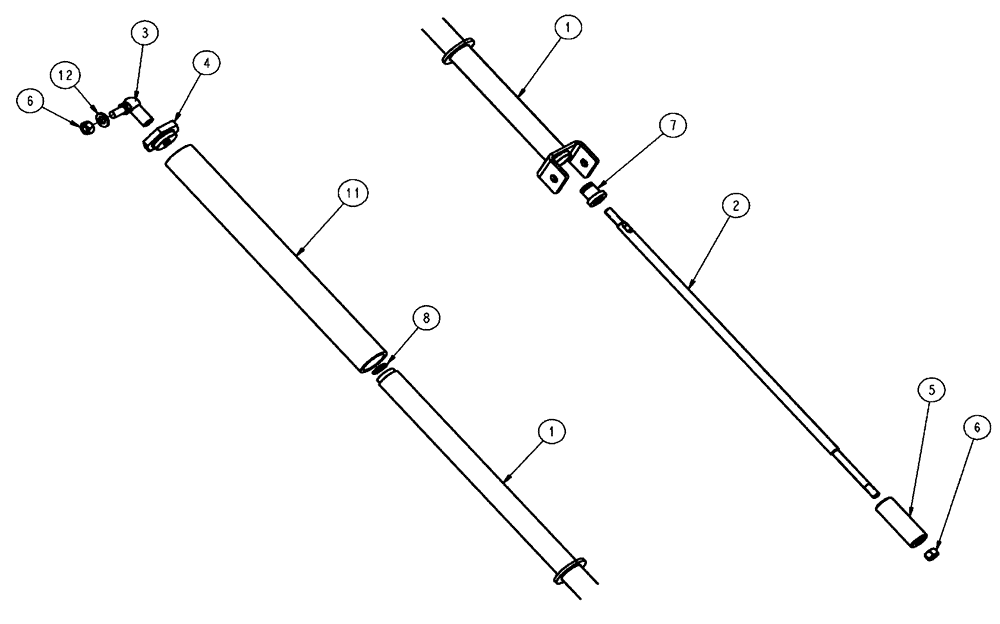

Запчасти Case IH FLX3510 (04-020) - LIFT CYLINDER GROUP Frame & Suspension

1

342843A1

HYD TUBE,618 mm Length

assembly, lift cylinder

1шт.

2

87266703

PISTON ROD

Lift Cylinder

1шт.

3

3222844R1

BALL JOINT

AS 16 Ball

1шт.

4

87266698

RING NUT

Spring Seat

1шт.

5

342841A1

PISTON ROD

Lift Cylinder

1шт.

6

100037

LOCK NUT,M10 x 1.5, Cl 8

2шт.

7

87266697

BUSHING

Piston Stop

1шт.

8

100-1175

SNAP RING,#75, Ext

1шт.

11

342447A1

SPRING

compression, 44.5 x 4.7 x 914

1шт.

12

86625252

WASHER,10.8mm ID x 21.5mm OD x 2.5mm Thk

1шт.
