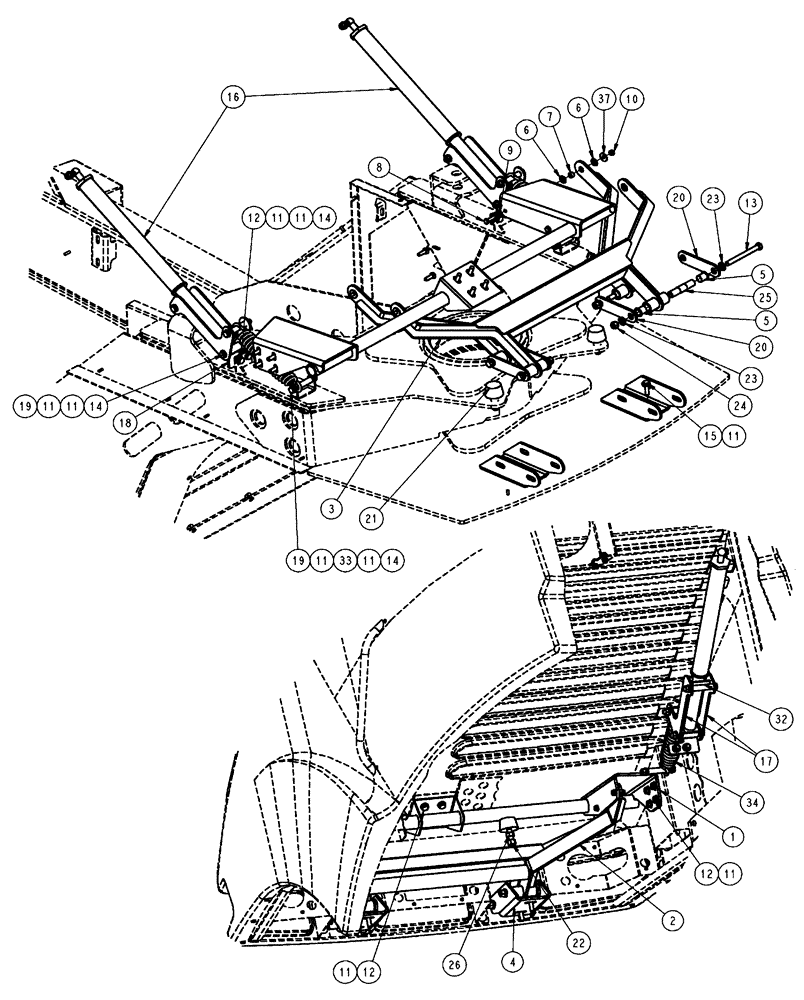

Запчасти Case IH FLX3510 (04-019) - ENGINE HOOD LINKAGE Frame & Suspension

1

342235A1

MOUNTING PLATE

hood link

1шт.

2

343836A1

LINKAGE

hood rear

1шт.

3

343848A1

LINKAGE

hood front

1шт.

4

343839A1

BRACKET, SUPPORTING

Mount, Lower Pivot

2шт.

5

343838A1

BUSHING

flange 18 mm

8шт.

6

87265447

FLANGED BEARING,14 mm ID x 22 mm OD x 3, 1 mm

Flange 14 mm

8шт.

7

342288A1

SPACER

Bushing

4шт.

8

43128

BOLT,M8 x 1.25 x 30mm, Cl 8.8

4шт.

9

86624184

WASHER,9mm ID x 16mm OD x 1.6mm Thk

4шт.

10

86528579

NUT,M8 x 1.25

4шт.

11

86625252

WASHER,10.8mm ID x 21.5mm OD x 2.5mm Thk

40шт.

12

43140

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8

16шт.

13

309308

BOLT,Hex, M12 x 1.75 x 120mm, Cl 8.8

4шт.

14

100037

LOCK NUT,M10 x 1.5, Cl 8

12шт.

15

9706704

BOLT,Hex, M10 x 1.5 x 41.58mm, Cl 8.8

4шт.

16

NS

NOT SERVICED

Group, Lift Cylinder

2шт.

See Fig. 04-020

1шт.

17

87265873

BRACKET, SUPPORTING

Mount, Spring

42шт.

18

87267026

MOUNTING PLATE

Lower, Lift Cylind

2шт.

19

814-10090

BOLT,Hex, M10 x 1.5 x 90mm, Cl 8.8

8шт.

20

342652A1

PLATE

hood mount

4шт.

21

342650A1

BUMPER

Rubber

2шт.

22

86992215

LOCK NUT,1/2"-13, GC

2шт.

23

86625255

WASHER,13.3mm ID x 24.5mm OD x 3mm Thk

8шт.

24

100038

NUT,M12 x 1.75, Cl 8

4шт.

25

343841A1

TUBE,13 mm ID, 19.1 mm OD, 88 mm Length

hood pivot

4шт.

26

280431

NUT,1/2"-13, G5

2шт.

32

87269152

MOUNTING PLATE

Spring Pull

2шт.

33

87269162

TUBE

Spacer, Paint

4шт.

34

339549A1

COIL SPRING

Extension

2шт.

37

86528503

WASHER

M8, Fw, ZND-25 DIA./8.4Bore/2

4шт.
