Запчасти Case IH FLX3510 (04-018) - BAFFLE GROUP, HOOD/AIR SCREEN/RADIATOR Frame & Suspension

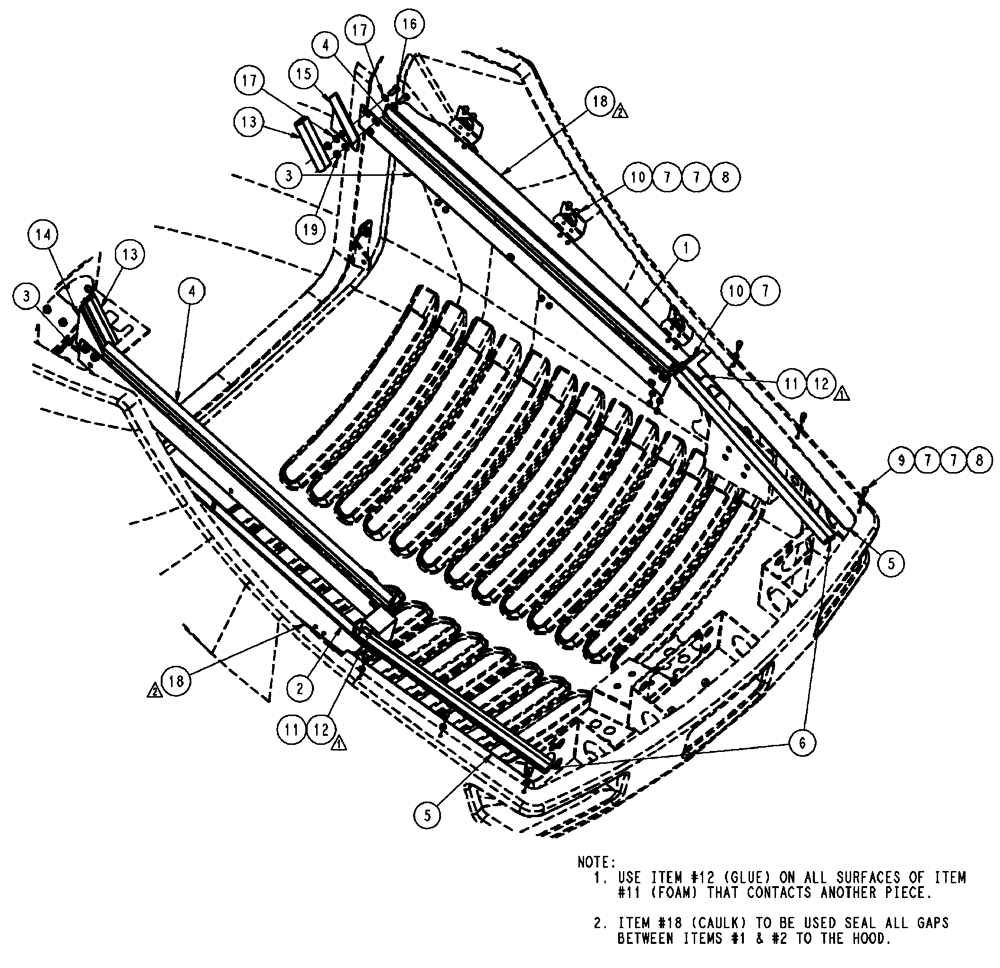

Схема запчастей Case IH FLX3510 - (04-018) - BAFFLE GROUP, HOOD/AIR SCREEN/RADIATOR Frame & Suspension
16
10
7
4
2
7
17
19
11
8
5
10
7
15
13
3
11
12
7
18
7
14
5
4
8
3
13
12
1
9
17
6
18

Артикул

Название

Примечание

Количество

1

87268825

BRACKET, SUPPORTING

Mount, Seal Plate, CS

1шт.

2

87268824

BRACKET, SUPPORTING

Mount, Seal Plate, RS

1шт.

3

87268823

MOUNTING PLATE

Hood Seal

2шт.

4

343856A1

SEAL

Hood Side

2шт.

5

87267465

PLATE

Side Seal

2шт.

6

F43117X

SEAL

formed rubber, adhesive-backed, bulk, 15 (9/16) x 31 (1-3/16) x 30480 mm (1200 inch) long

2шт.

7

86588450

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

42шт.

8

353308

NUT,M6 x 1.0, Cl 8

18шт.

9

120100

BOLT,M6 x 20mm, Cl 8.8

6шт.

10

86508568

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8

18шт.

11

87268297

SEAL

Foam, Hood

2шт.

12

BN54039

ADHESIVE

Spray 18 oz

1шт.

13

S115658

WEATHERSTRIP

Bulk, Start Serial: 6137

2шт.

Cut 5.2" from bulk roll

1шт.

13

87268299

SEAL

Bulb

2шт.

Indicates Old Part Number Or Can Order Newer Part Number Listed Above

1шт.

14

87269593

PLATE

Hood Seal, Start Serial: 6137

1шт.

14

87268817

MOUNTING PLATE

Seal, RS

1шт.

Indicates Old Part Number Or Can Order Newer Part Number Listed Above

1шт.

15

87269592

PLATE

Hood Seal, Start Serial: 6137

1шт.

15

87268818

MOUNTING PLATE

Seal CS

1шт.

Indicates Old Part Number Or Can Order Newer Part Number Listed Above

1шт.

16

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

4шт.

17

86624184

WASHER,9mm ID x 16mm OD x 1.6mm Thk

, Start Serial: 6137

8шт.

17

86624184

WASHER,9mm ID x 16mm OD x 1.6mm Thk

4шт.

Indicates Old Part Number Or Can Order Newer Part Number Listed Above

1шт.

18

NSS

NOT SOLD SEPARAT

Black-Seam Seal 300ML, 0.5, Contact ASIST for more Information

1шт.

19

86528579

NUT,M8 x 1.25

, Start Serial: 6137

4шт.

Выбрано товаров: 28
