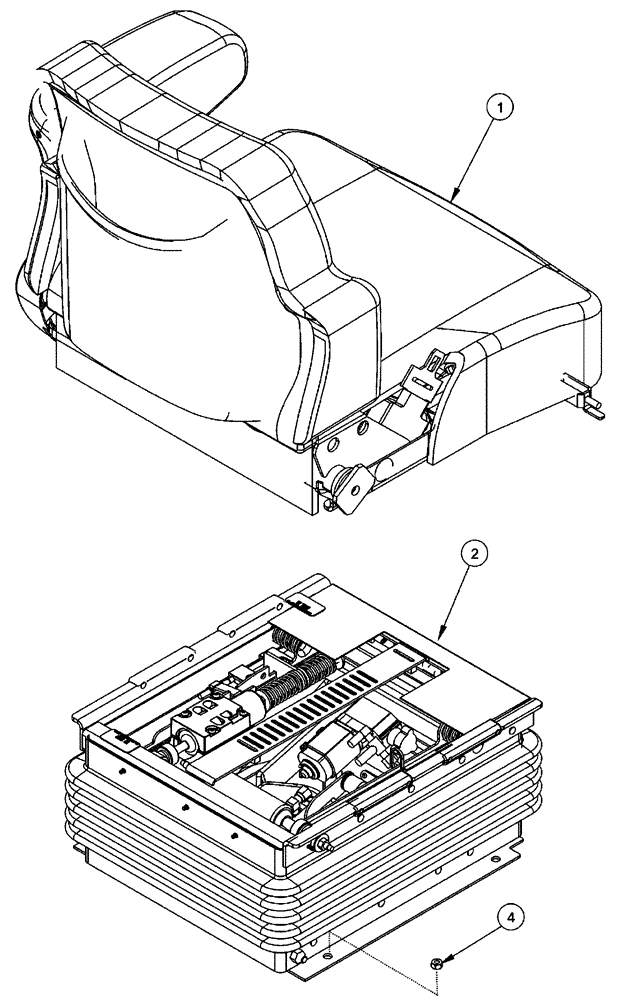

Запчасти Case IH FLX3510 (01-037) - SEAT ASSEMBLY "BEFORE JAN 2005" (10) - CAB

358202A2

SEAT ASSY.

Standard, Deluxe: -JJA0108800, N.A. Only

1шт.

Consists of Refs. 1, 2, & 4

1шт.

1

360319A2

CUSHION ASSY.

standard, deluxe : -JJA0108800, N.A. only

1шт.

See Fig. 01-108

1шт.

2

374353A2

PACKAGE,SERVICE

Suspension Assembly

1шт.

See Fig. 01-039

1шт.

4

9804277

FLANGE NUT,Hex, M8 x 1.25, Cl 8

4шт.
