Запчасти Case IH FLX3510 (01-036) - SUSPENSION ASSEMBLY, SEAT "JAN 2005 THRU JAN 2006" (10) - CAB

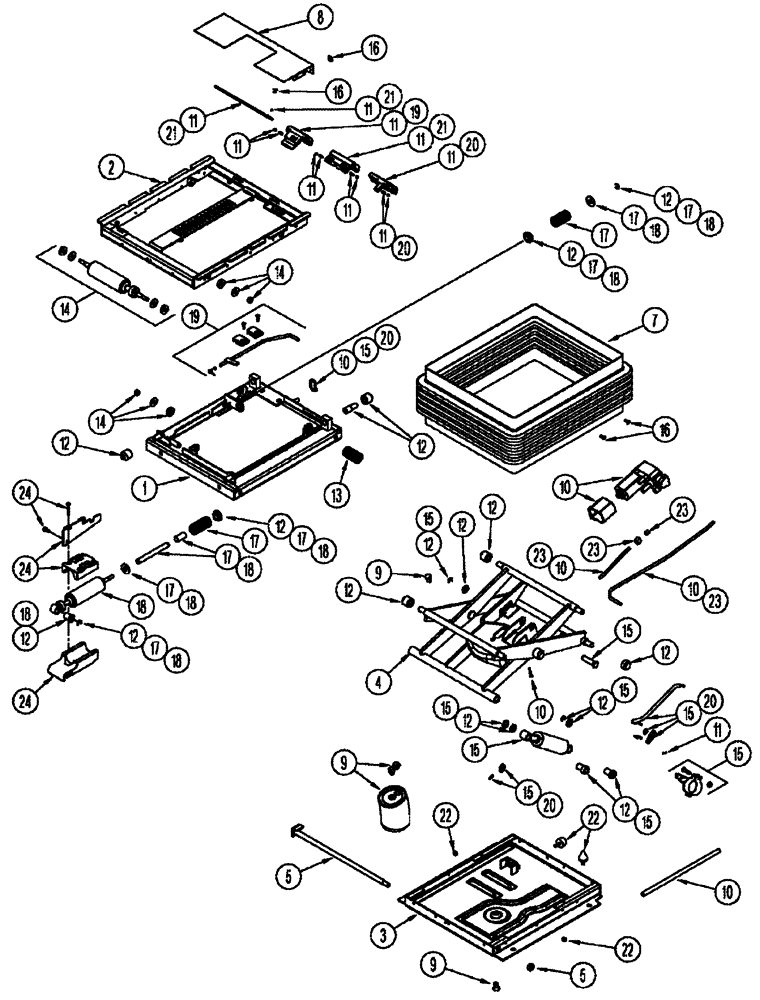

Схема запчастей Case IH FLX3510 - (01-036) - SUSPENSION ASSEMBLY, SEAT "JAN 2005 THRU JAN 2006" (10) - CAB
11
13
3
18
23
22
12
24
12
9
24
16
23
15
7
17
6
22
1
10
2
19
12
17
12
8
23
12
16
20
16
9
18
18
21
20
10
11
17
15
11
14
9
12
18
11
20
12
17
20
12
17
4
11
18
10
10
24
11
15
17
12
18
11
15
5
12
12
19
21
17
23
21
12
12
14
14
22
12
15
17
17
18
15
11
15
18
15
20
12
11
11
10
10
15
15
18

Артикул

Название

Примечание

Количество

87347885

SERVICE KIT

Suspension, A2K Seat

1шт.

Includes Refs. 1 - 24

1шт.

1

333273A1

HOUSING

Upper

1шт.

2

333274A2

ISOLATOR

Lateral Track

1шт.

3

333275A1

HOUSING

Lower

1шт.

4

333276A1

ARM

Suspension

1шт.

5

302033A1

SHAFT

Bearing

1шт.

6

87347944

SERVICE KIT

Harness, Seat And Suspension

1шт.

Not Shown

1шт.

7

333278A1

BOOT

suspension

1шт.

8

302029A2

PLATE

Cover

1шт.

9

333279A2

KIT

Air Spring

1шт.

10

87347951

SERVICE KIT

Air Compressor

1шт.

11

373469A1

PACKAGE,SERVICE

kit, suspension knob

1шт.

12

333283A2

KIT

kit, suspension bearing and rollers

1шт.

13

333284A1

PACKAGE,SERVICE

kit, lateral isolator spring

1шт.

14

333285A1

PACKAGE,SERVICE

kit, lateral isolator shock absorber

1шт.

15

87347950

SUSPENSION

Shock Absorber

1шт.

16

333659A1

PACKAGE,SERVICE

Kit, Boot Button

1шт.

17

333287A2

SPRING KIT

kit, fore and aft isolator spring

1шт.

18

333288A2

PACKAGE,SERVICE

kit, fore and aft shock absorber

1шт.

19

373470A2

KIT

kit, fore and aft isolator control

1шт.

20

447956A1

KIT

Kit, Adjustable Shock Absorber Control

1шт.

21

373473A1

PACKAGE,SERVICE

kit, lateral isolator control

1шт.

22

333295A1

BUMPER

Kit, Suspension Bumper

1шт.

23

87347955

CABLE

Suspension Shock

1шт.

24

333296A1

SERVICE KIT

Kit, Fore and Aft Isolator Shock Block

1шт.

Выбрано товаров: 27
