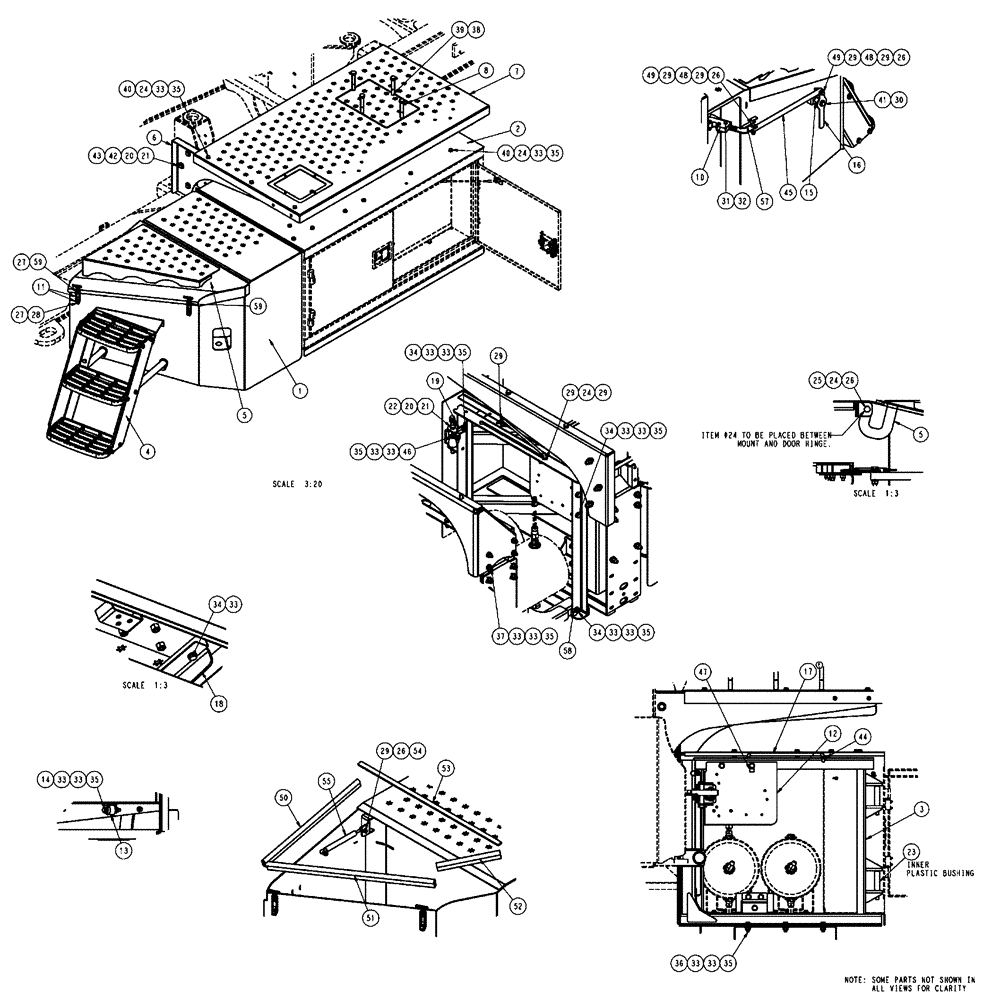

Запчасти Case IH FLX3510 (04-014) - WALKWAY GROUP, RS Frame & Suspension

1

87265423

BOX

RS, Walkway

1шт.

2

87265538

PLATE

Toolbox Cover

1шт.

3

87269637

MOUNTING PLATE

Ladder Box

1шт.

4

NS

NOT SERVICED

Assembly, Front Access Ladder

1шт.

See Fig. 04-028

1шт.

5

344259A1

COVER PLATE

Storage

1шт.

6

87266043

SUPPORT

Front Walkway

1шт.

7

87266044

EXTENSION

Walkway, RS

1шт.

8

87267032

COVER

Oil Filter

1шт.

10

87265437

LATCH

1шт.

11

BN309337

LATCH

Flexible Draw

2шт.

12

84129312

MOUNT

Solenoid Valves

1шт.

13

87268827

ROLLER

Plastic

1шт.

14

86980407

BOLT,Hex, M10 x 70mm, Cl 8.8

M10-1.5 X 70, 8.8, DOR

1шт.

15

87265440

BUSHING

Handle

1шт.

16

87265441

HANDLE

PPE Box

1шт.

17

87265547

ROD

Door Stop

1шт.

18

87266685

SUPPORT

Mount, Walkway, Cab

2шт.

19

87266593

SUPPORT

Rod

1шт.

20

86981496

WASHER,13.3mm ID x 24.5mm OD x 3mm Thk

5шт.

21

100038

NUT,M12 x 1.75, Cl 8

5шт.

22

86980432

BOLT,Hex, M12 x 120mm, Cl 8.8

M12-1.75 X 120, 8.8, DOR

2шт.

23

86986835

TUBE,12.10 mm ID x 20.40 mm OD x 78 mm L

Side Front

2шт.

24

BN50146

WASHER,3/8", Stainless

17шт.

25

86980379

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

2шт.

26

9991588

NUT,M8 x 1.25, Cl 8

6шт.

27

87343612

SCREW,Phil Pan Hd, M5 x 30mm, Cl 4.8, Full Thd

M5 X 30 PHD H 4.8

6шт.

28

87344030

NUT,Prevailing Torque, M5 x 0.8, CL 8, DOR

6шт.

29

87529315

WASHER,9mm ID x 17mm OD x 2mm Thk

9 x 17 x 2 mm, HDN, DOR

9шт.

31

87342591

BOLT

Hex, 1/4"-20 x 1 1/2", G5, Full Thd

4шт.

32

87343957

NUT,1/4" - 20

Hex, 1/4"-20, GB

4шт.

33

87529312

WASHER,11mm ID x 24mm OD x 3mm Thk

66шт.

34

86980400

BOLT,Hex, M10 x 25mm, Cl 8.8, Full Thd

13шт.

36

86980515

NUT,Hex, M10 x 1.5, Cl 8.8, DOR

6шт.

37

86980403

BOLT,Hex, M10 x 1.5 x 40mm, Cl 8.8, Full Thd

8шт.

38

BN50138

WASHER,1/4", SS

4шт.

39

BN315199

SCREW,M6 x 20mm, SST

M6-1 X 20, BSH, SS

4шт.

40

BN322388

SCREW,Hex, M10 x 1.5 x 30mm, SST

M10-1.5 X 30, HH, SS

14шт.

41

87341824

BOLT,Hex, M10 x 170mm, Cl 8.8

M10 x 55, 8.8, DOR

1шт.

42

BN50595

WASHER,1/2", Stainless

3шт.

43

86980423

BOLT,Hex, M12 x 1.75 x 40mm, Cl 8.8, Full Thd

3шт.

44

BN71006

COTTER PIN

1/8", #11

2шт.

45

87265442

TUBE,13.50 mm ID x 19.10 mm OD x 392 mm L

Push

1шт.

46

87344209

NUT,M10 x 1.5, Cl 10, DOR

1шт.

47

86625036

CLAMP,12.7mm, Coat, 8.7mm Bolt Hole, P Type

1шт.

48

BN50142

WASHER,5/16", Stainless Steel

2шт.

49

86980383

BOLT,Hex, M8 x 40mm, Cl 8.8

2шт.

50

87265432

SEAL

Bulb

1шт.

51

87265433

SEAL

Bulb

1шт.

52

87265434

SEAL

Bulb

1шт.

53

87269585

SEAL

Step Cover

1шт.

54

86013811

STUD

Ball

2шт.

55

87265558

CYLINDER

Gas

1шт.

57

BN30670

SPRING

3/8" OD X 2" (304 SS)

1шт.

58

86637976

CLAMP,19mm, Coat, 8.7mm Bolt Hole, P Type

1шт.

59

87343604

SCREW,Phil Pan Hd, M5 x 25mm, Cl 4.8, Full Thd

Hex, M5 x 25, PHD, 4.8 DOR

2шт.

60

86986699

LIGHT

Amber Side Marker Lamp, Not Shown, Located on the corner of Ref 1

1шт.
