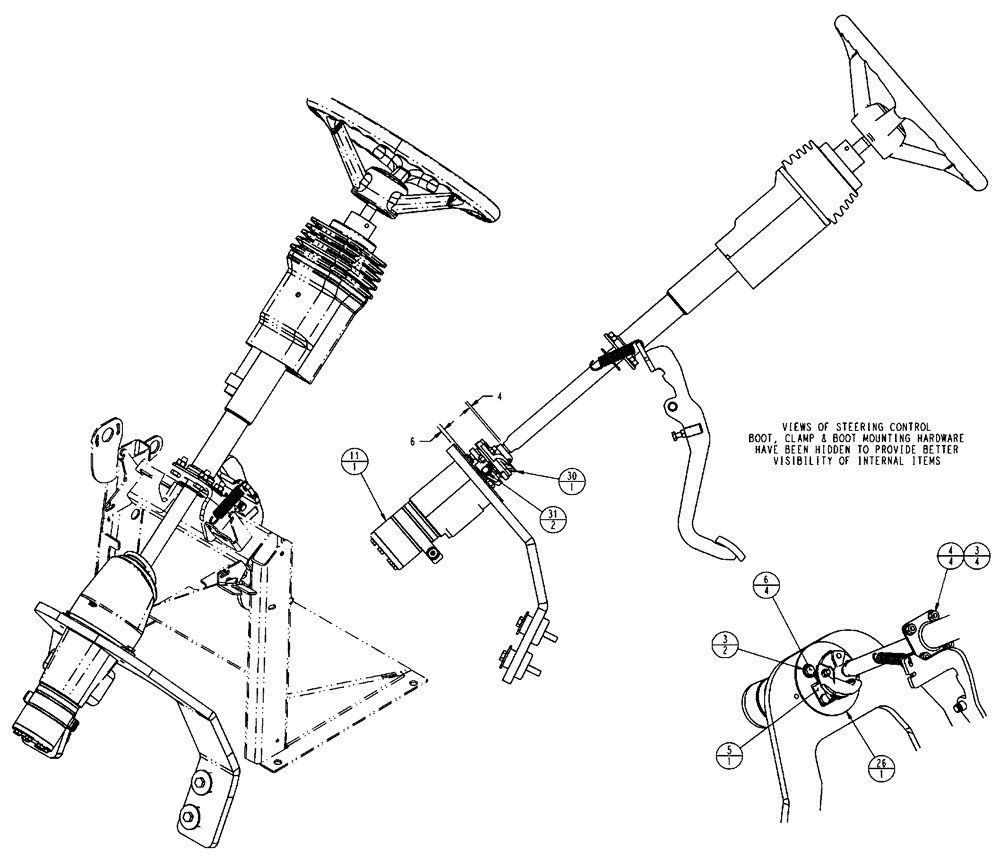

Запчасти Case IH FLX3510 (01-011[02]) - STEERING CONTROL (10) - CAB

1

86983411

STEERING COLUMN

Assembly, Adjustable

1шт.

2

343214A1

PLATE

Pump Support

1шт.

3

140017

WASHER,M10 x 20mm OD x 2mm Thk

6шт.

4

86500689

NUT,M10 x 1.5, Cl 10

4шт.

5

450945A1

STOP DEVICE

Steering Pump Shaft

1шт.

6

9515003

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9

4шт.

7

373193A1

BOOT

Steering

1шт.

8

301200A1

STEERING WHEEL

deluxe

1шт.

9

86625266

WASHER,17.5mm ID x 30mm OD x 4mm Thk

1шт.

10

86639148

NUT,M14 x 1.5, Cl 8

1шт.

11

410874A1

PUMP

steering valve

1шт.

12

1977448C2

WASHER

Support, Boot

1шт.

13

361024A3

CAP

steering wheel, deluxe

1шт.

14

311748A3

PEDAL

steering adjust

1шт.

15

282892A1

BUSHING,8mm ID x 9.6mm OD x 8mm L

bearing, Nylon

2шт.

16

86639231

NUT,M8, Cl 10

1шт.

17

514-633

BOLT,Hex, M8 x 1.25 x 30mm, Cl 8.8, Full Thd

1шт.

18

311812A1

SPRING

Extension

1шт.

19

729-845

CLEVIS PIN,M8 x 45

1шт.

20

86639115

COTTER PIN,M2 x 12

1шт.

21

323657A1

PAD

Foot Release Pedal

1шт.

22

A59514

RUBBER BUSHING,13.49mm ID x 34.29mm OD x 41.1mm L

Mount, Front

4шт.

23

495-81145

WASHER,13/32" x 1 3/4" x .120"

4шт.

24

627-10070

BOLT,Hex, M10 x 1.5 x 70mm, Cl 10.9, Full Thd

4шт.

25

373194A1

HOUSING

Boot Mounting

1шт.

26

86983451

SEAL

Closed Cell Foam

1шт.

27

86624184

WASHER,9mm ID x 16mm OD x 1.6mm Thk

2шт.

28

80043233

SCREW

Hex, M8 x 20, 10.9

2шт.

29

214-1580

HOSE CLAMP,#80, 4.62" - 5.5", Type F Worm, W/ Liner

1шт.

30

L100096

ISOLATOR

Bushing, Steering Noise

1шт.

31

BN7807271

SCREW,3/8" - 24 x 1.16"

Cap Lock, 12 Pt

2шт.
