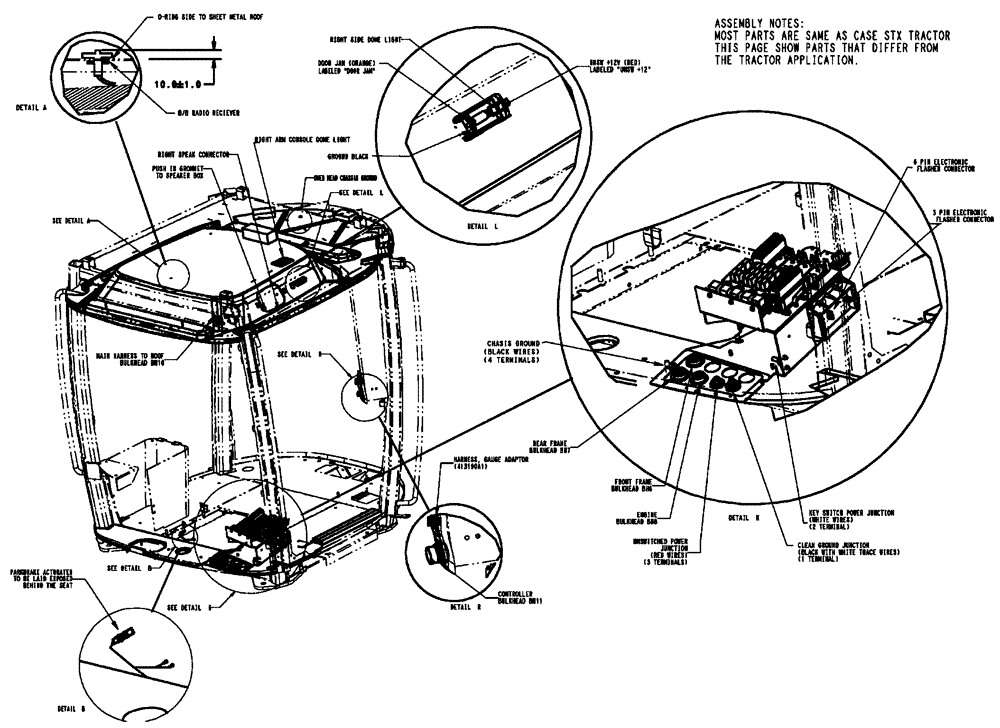

Запчасти Case IH FLX3510 (01-009) - BFC CAB ELECTRICAL PACKAGE (10) - CAB

1

87265757

MODULE

BFC Main Electronic Assembly

1шт.

See Fig. 08-015

1шт.

2

373457A1

HARNESS

Cab Roof

1шт.

3

87269290

WIRE HARNESS

BFC Front Dash With Electronic Engine Front Console

1шт.

4

345262A1

WINDSHIELD WASHER SW

Wiper/Washer

1шт.

5

229372A1

LIGHT SWITCH

Console, Nao

1шт.

6

177250A1

LIGHT SWITCH

Rotary

1шт.

7

1331046C2

KNOB

Switch Panel

2шт.

8

126844A1

PLUG,1.427” x .62” , Plastic

cover, switch hole

5шт.

10

227739A2

POWER SOCKET

auxiliary power

2шт.

11

383986A1

RIVET

3.3 X 11.7

12шт.

12

86639310

WASHER,3.2mm ID x 7mm OD x 0.5mm Thk

12шт.

13

893-11010

LOCK WASHER,Ext Tooth, M10

2шт.

14

140017

WASHER,M10 x 20mm OD x 2mm Thk

4шт.

15

86500689

NUT,M10 x 1.5, Cl 10

2шт.

16

86588450

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

4шт.

17

840-1616

SCREW,Pan, M6 x 16mm, Cl 4.8

2шт.

18

86624184

WASHER,9mm ID x 16mm OD x 1.6mm Thk

3шт.

19

43362

NUT,M8 x 1.25, Cl 10

3шт.

20

284638A2

ELEC CONNECTOR,4 Pin

terminator, ASM monitor

1шт.

21

864-4010

HEX SOC SCREW,M4 x 10mm, Cl 8.8

6шт.

22

86512135

HEX SOC SCREW,M6 x 1 x 20mm, Cl 12.9

2шт.

23

86517328

LOCK WASHER,6.1mm ID x 11.8mm OD x 1.7mm Thk

2шт.

24

86500688

NUT,Hex, M6 x 1.0, Cl 10.9

2шт.

25

87452321

OUTLET

Power

1шт.

26

388813A1

OUTLET

power, Casco

2шт.

28

413190A1

WIRE HARNESS

Pressure Data

1шт.

29

279265A2

SWITCH

Door Jam, Dome Light

1шт.

30

404800A1

THIN NUT

M12 X 1.75 6G

1шт.

87536467

DECAL

Fuse/Relay

1шт.

Associated Part Of Nut, P/N 404800A1

1шт.
