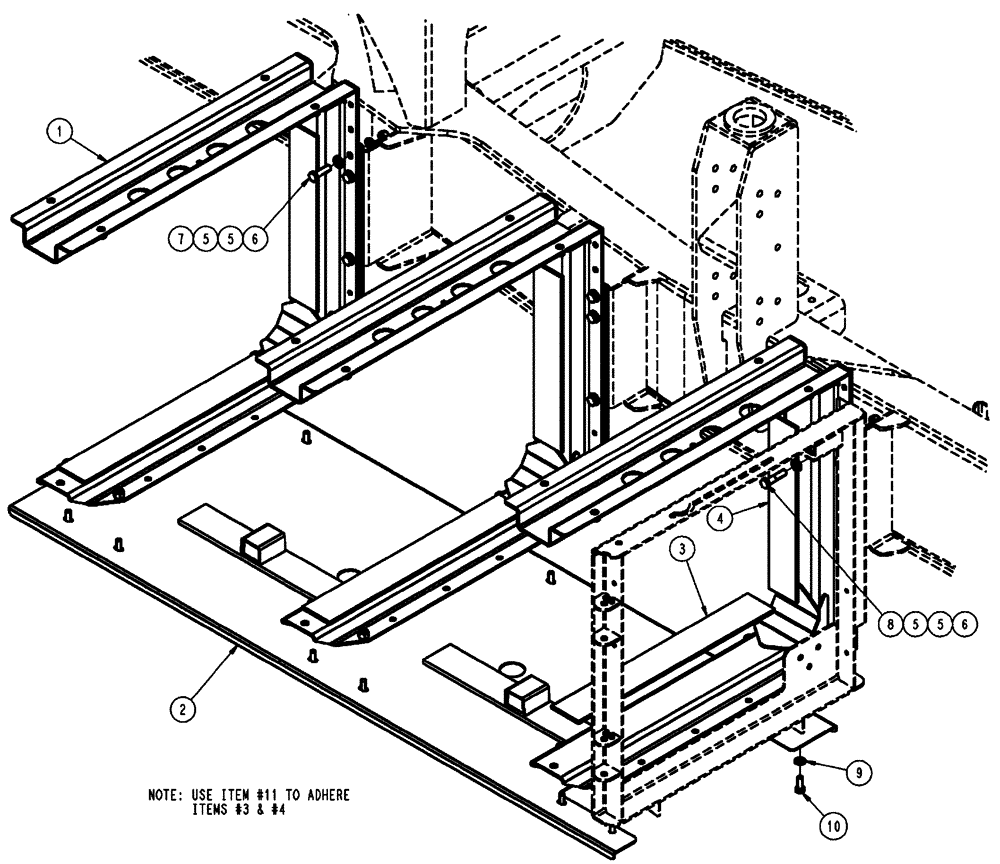

Запчасти Case IH FLX3510 (04-011) - TANK/WALKWAY GROUP, CS Frame & Suspension

1

86986843

MOUNTING PLATE

Walkway

3шт.

2

344215A1

SUPPORT

Lower Tank

1шт.

3

87266587

PAD

Fuel Tank

3шт.

4

87266588

PAD

Fuel Tank

3шт.

5

86625255

WASHER,13.3mm ID x 24.5mm OD x 3mm Thk

36шт.

6

100038

NUT,M12 x 1.75, Cl 8

18шт.

7

86629541

BOLT,Hex, M12 x 1.75 x 40mm, Cl 8.8

15шт.

8

9706702

BOLT,Hex, M12 x 1.75 x 50mm, Cl 8.8

3шт.

9

86625252

WASHER,10.8mm ID x 21.5mm OD x 2.5mm Thk

12шт.

10

11106231

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9

12шт.

11

BN54039

ADHESIVE

Spray 18 oz

1шт.
