Запчасти Case IH FLX3510 (06-001[01]) - HYDRAULIC TANK GROUP, BSN Y6T020477 (07) - HYDRAULICS

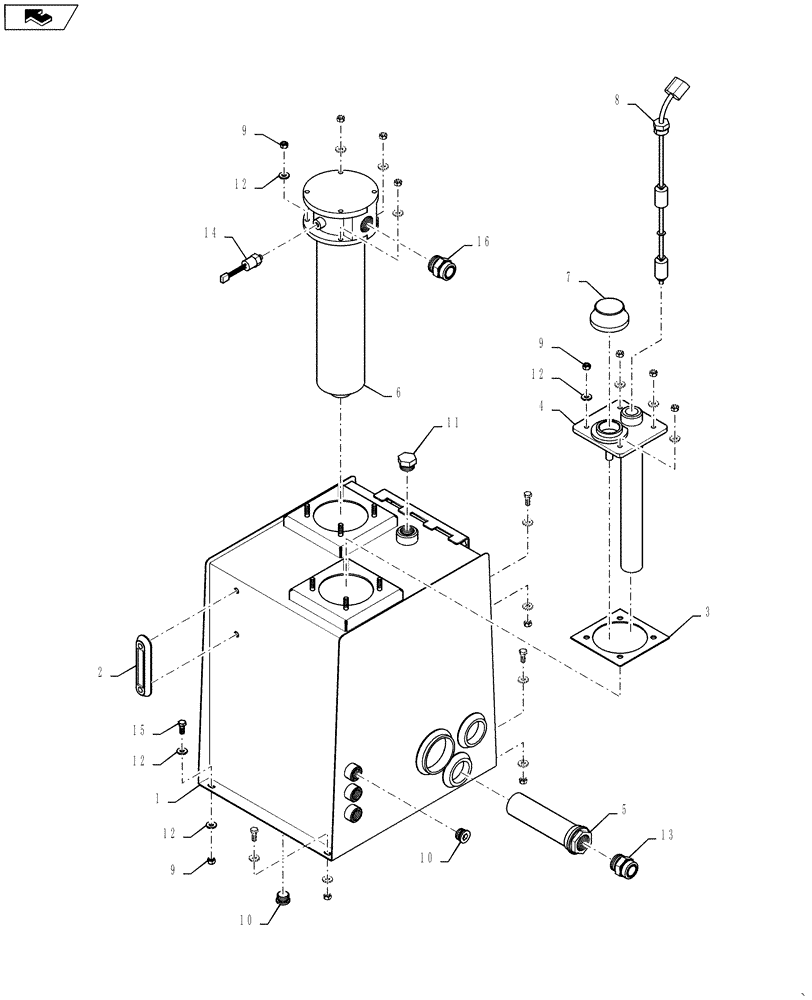

Схема запчастей Case IH FLX3510 - (06-001[01]) - HYDRAULIC TANK GROUP, BSN Y6T020477 (07) - HYDRAULICS
12
9
12
5
12
12
8
16
7
4
6
14
10
9
2
11
9
1
15
3
10
13
home

Артикул

Название

Примечание

Количество

1

344370A1

TANK

Hydraulic Oil 31 Gallon

1шт.

2

BN322594

GAUGE

sight with temperature

1шт.

3

BN302982

GASKET,3.17mm Thk

Cover Plate

1шт.

4

BN324120

PLATE

Temp/Level

1шт.

5

BN303528

STRAINER ASSY.

32 MB x 20 FB, 100

1шт.

6

87270936

FILTER

In-Tank FLX, See 06-009[02] for service parts

1шт.

7

BN304339

VALVE

Press Valve

1шт.

8

BN324116

INDICATOR

Sensor, Multiple Oil Level And Oil Temperature

1шт.

9

86980515

NUT,Hex, M10 x 1.5, Cl 8.8, DOR

12шт.

10

9841223

PLUG,1-1/16" - 12 ORB

2шт.

11

BN60479

PLUG

1-5/16-12 O-Ring Hex

1шт.

12

86625252

WASHER,10.8mm ID x 21.5mm OD x 2.5mm Thk

16шт.

13

BN302660

FITTING

20MOR-20MB

2шт.

14

BN53955

PRESSURE SWITCH

1шт.

15

86980400

BOLT,Hex, M10 x 25mm, Cl 8.8, Full Thd

4шт.

16

BN305058

FITTING

-20 ORFS x 1-7/8 - 12

1шт.

Выбрано товаров: 16
