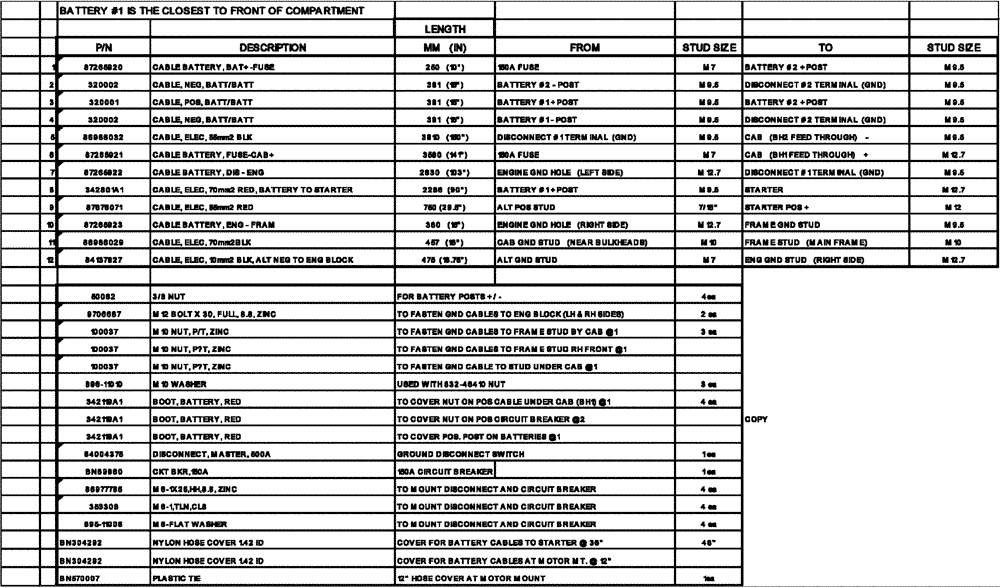

Запчасти Case IH FLX3510 (08-010) - ELECTRICAL GROUP, CABLES (06) - ELECTRICAL

1

87265920

CABLE

Battery, Bat + - Fuse

1шт.

2-4

BN320002

NEG BATTERY CABLE

/Battery

2шт.

3

BN320001

CABLE

POS, BATT/BATT

1шт.

5

86986032

CABLE

Electrical, 55mm2, Black

1шт.

6

87265921

CABLE

BATTERY, FUSE - CAB +

1шт.

7

87265922

CABLE

BATTERY, DIS - ENGINE

1шт.

8

342801A1

CABLE

electrical, 70mm2 red

1шт.

9

87676071

CABLE

1/0 Red, Alternator To Starter, Start Year: 01-AUG-09

1шт.

9

87266923

CABLE

Electrical, 55mm2, Red, Years: -01-AUG-09

1шт.

10

87265923

CABLE

Battery, Engine - Frame

1шт.

11

86986029

CABLE

Electrical, 70mm2, Black

1шт.

12

84137827

ELECTRIC CABLE

10MM2 BLK, Start Year: 01-AUG-09

1шт.

12

342813A1

CABLE

electrical, 10mm2 black, Years: -01-AUG-09

1шт.

13

342119A1

BOOT

BATTERY, RED

4шт.

14

BN304292

COVER

NYLON HOSE, 1.42 ID

4шт.

15

BN50062

LOCK NUT,3/8"-16, Stainless Steel

6шт.

16

9706687

BOLT,M12 x 1.75 x 30mm, Cl 8.8

2шт.

17

86977786

BOLT,Hex, M6 x 1 x 25mm, Cl 8.8

4шт.

18

353308

NUT,M6 x 1.0, Cl 8

4шт.

19

86588450

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

4шт.

20

86625252

WASHER,10.8mm ID x 21.5mm OD x 2.5mm Thk

3шт.

21

100037

LOCK NUT,M10 x 1.5, Cl 8

3шт.

22

BN69860

CIRCUIT BREAKER

150A

1шт.

23

84004375

BATTERY CUT-OUT

DISCONNECT, BATTERY

1шт.
