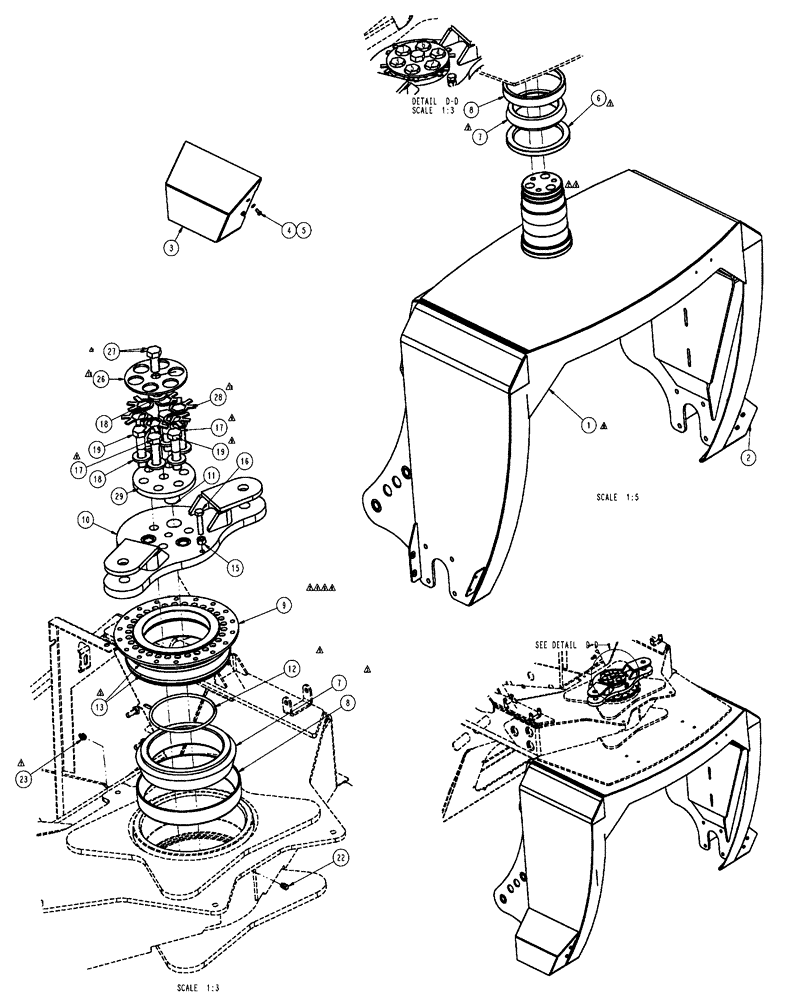

Запчасти Case IH FLX3510 (04-008) - FRONT FORK GROUP Frame & Suspension
№
Артикул
Название
Примечание
Количество
1
87266355
FORK
Steering
1шт.
2
BN324651
COVER ASSY
Axle RS
1шт.
3
BN324650
COVER ASSY
Axle CS
1шт.
4
86980378
BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd
8шт.
5
86624184
WASHER,9mm ID x 16mm OD x 1.6mm Thk
8шт.
6
BN323425
OIL SEAL
Oil, 7.75 X 10 X 0.75
1шт.
7
90-7762T1
TAPERED BEARING
Cone, JM736149
2шт.
8
90-7761T1
BEARING CUP
JM736110
2шт.
9
87268058
BEARING LOCK NUT
Fork Bearing
1шт.
10
87393917
ARM
Steering, Start Serial: 20477
1шт.
10
87603098
ARM
Steering
1шт.
Indicates Old Part Number Or Can Order Newer Part Number Listed Above
1шт.
11
BN324111
BUSHING
1.38 X 1.5 X .81
3шт.
12
87033152
O-RING,5.85" ID x 6.4" OD x 0.275"
#436, CL 6, NBR
1шт.
13
238-6448
O-RING,0.275" Thk x 9.475" ID, -448, Cl 6, 90 Duro
2шт.
15
87344210
NUT
Hex, M12 CL10.9
1шт.
16
87342144
BOLT,Hex, M12 x 50mm, Cl 8.8
M12 X 50, Full, 8.8
1шт.
17
87394757
BOLT,Hex, M20 x 70mm, Cl 10.9
Hex, M20 x 70 CL10.9 Full Thrd, Start Serial: 20477
3шт.
17
86980460
BOLT,Hex, M20 x 60mm, Cl 8.8
M20-2.5 X 60, HH, 8.8 DOR
3шт.
Indicates Old Part Number Or Can Order Newer Part Number Listed Above
1шт.
18
86639847
WASHER,21.8mm ID x 44.5mm OD x 5mm Thk
7шт.
19
87341550
BOLT,Hex, M20 - 2.5 x 80mm, Class 8.8, DOR
M20 x 80, 8.8
3шт.
Indicates Old Part Number Or Can Order Newer Part Number Listed Above
1шт.
20
331-37
SPARE PART
FLUID, 1 lb. Lithium #2 grease
1шт.
21
BN55077
ANTISEIZE
Compound-Anti Seize, 0.2
1шт.
22
BN2293227
BREATHER
301370 1/8" NPT
1шт.
23
BN10151
LUBE NIPPLE
1/8"-27 Straight
1шт.
26
87392705
RING
Retainer, Start Serial: 20477
1шт.
Includes Refs. 26 - 29
1шт.
27
86980457
BOLT,Hex, M20 x 40mm, Cl 8.8
M20 2.5 X 40, HH, 8.8, DOR
1шт.
28
87392700
LOCK WASHER
Retainer
6шт.
29
87392699
STIFFENER
Plate, 12.7 mm
1шт.
Выбрано товаров: 34
