(03-011) - DRIVELINE SERVICE PARTS

Запчасти Case IH FLX3510 (03-011) - DRIVELINE SERVICE PARTS (03) - TRANSMISSION

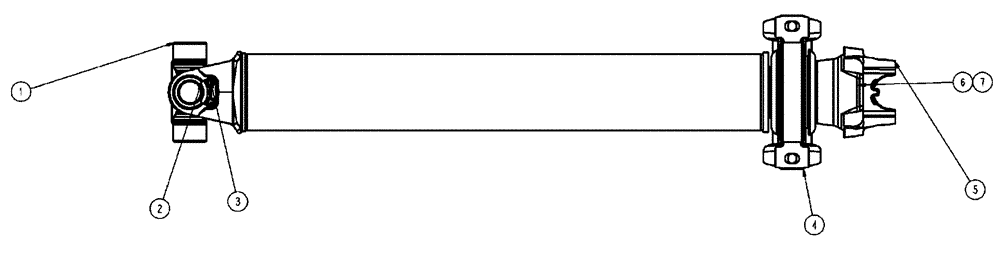

Схема запчастей Case IH FLX3510 - (03-011) - DRIVELINE SERVICE PARTS (03) - TRANSMISSION
5
3
4
6
2
1
7
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87269195

BEARING ASSY

Bearing/Cross

1шт.

Refs. 2 & 3 Included With Ref. 1

1шт.

2

BN326111

RETAINER CUP

Cup Retainer, SPL 170

2шт.

3

BN326112

BOLT

Cup Retainer, SPL 170

2шт.

4

BN307686

HANGER

Hanger, Bearing Assembly

1шт.

5

87269197

YOKE

Driveshaft

1шт.

6

87269199

WASHER

Yoke, Driveshaft

1шт.

7

87269200

NUT

Yoke, Driveshaft

1шт.
