(03-010) - DRIVELINE GROUP WITH AUX TRANSMISSION, FLX3010 & FLX3510

Запчасти Case IH FLX3510 (03-010) - DRIVELINE GROUP WITH AUX TRANSMISSION, FLX3010 & FLX3510 (03) - TRANSMISSION

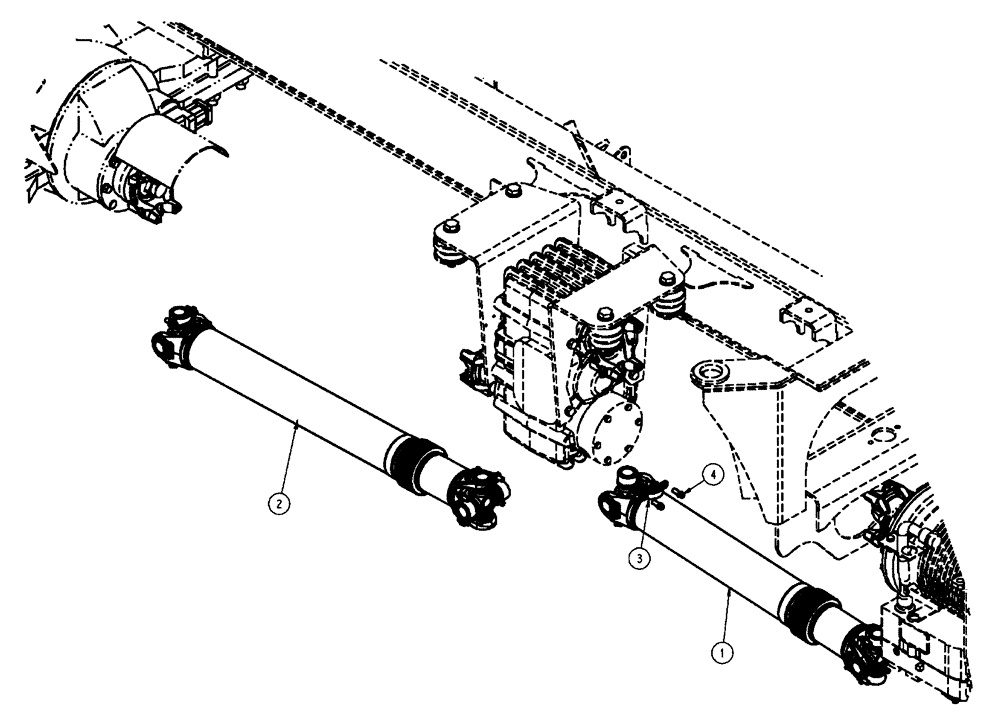

Схема запчастей Case IH FLX3510 - (03-010) - DRIVELINE GROUP WITH AUX TRANSMISSION, FLX3010 & FLX3510 (03) - TRANSMISSION
2
1
4
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

86986487

DRIVE SHAFT

Line 536 Slip, Front

1шт.

2

BN323970

DRIVE SHAFT

Driveline, 536 Rear

1шт.

3

BN326109

STRAP

Yoke, SPL 170

8шт.

4

BN326110

BOLT

Yoke Strap, SPL 170 Driveline, Service Parts

16шт.

See Fig. 03-011

1шт.
