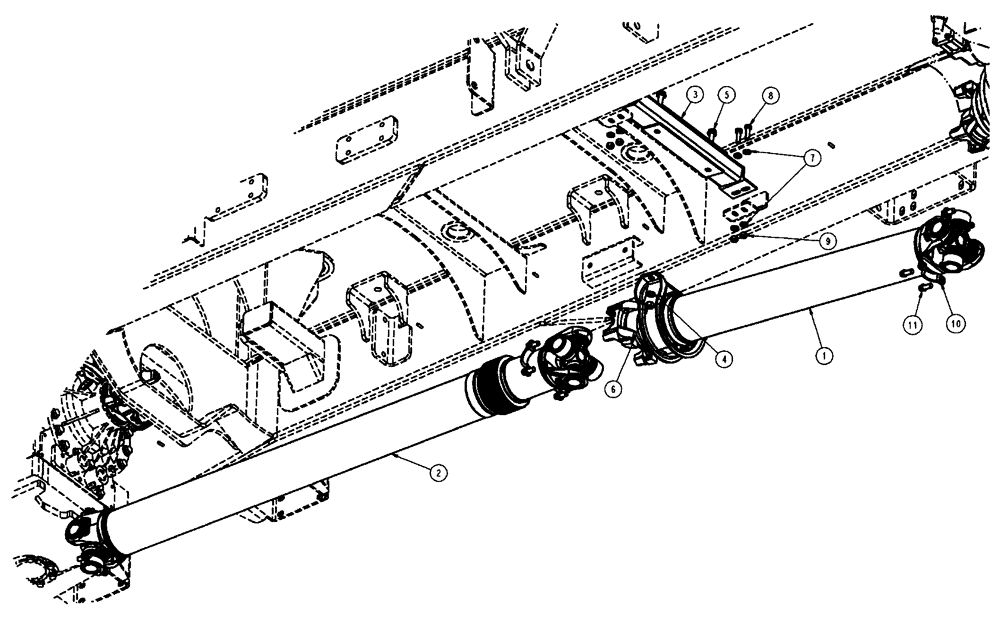

Запчасти Case IH FLX3510 (03-009) - DRIVELINE GROUP, FLX3010 (03) - TRANSMISSION

1

BN323507

DRIVEN SHAFT

Driveline, 535 Stationary

1шт.

2

BN323506

DRIVEN SHAFT

Driveline, 535 Slip

1шт.

3

BN322955

HANGER

Driveline

1шт.

4

86625255

WASHER,13.3mm ID x 24.5mm OD x 3mm Thk

4шт.

5

374887

BOLT,Hex, M12 x 1.75 x 100mm, Cl 8.8

2шт.

6

100038

NUT,M12 x 1.75, Cl 8

2шт.

7

140017

WASHER,M10 x 20mm OD x 2mm Thk

8шт.

8

86624978

BOLT,Hex, M10 x 35mm, Cl 10.9, Full Thd

4шт.

9

100037

LOCK NUT,M10 x 1.5, Cl 8

4шт.

10

BN326109

STRAP

Yoke, SPL 170

6шт.

11

BN326110

BOLT

Yoke Strap, SPL 170 Driveline Service Parts

12шт.

See Fig. 03-011

1шт.
