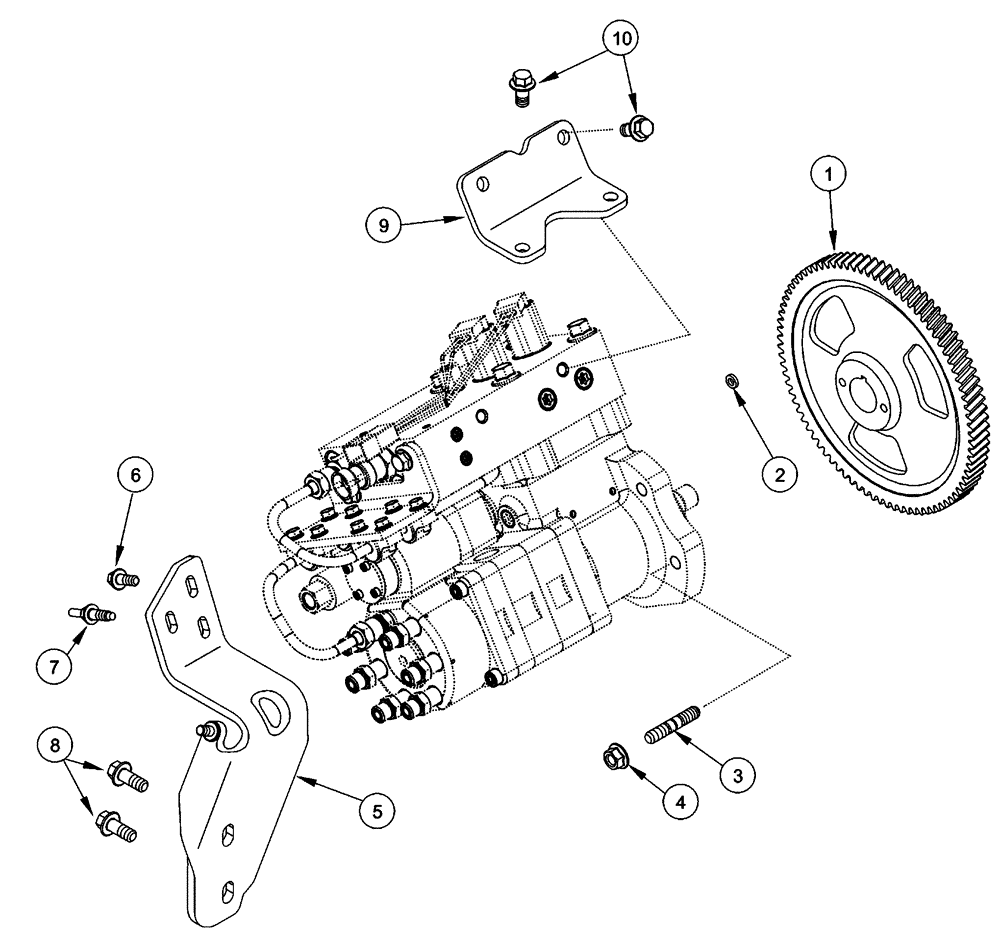

Запчасти Case IH FLX3510 (02-082) - FUEL INJECTION PUMP - GEAR AND MOUNTING BRACKETS, FLX 3010 & FLX 3510 (01) - ENGINE

1

J942764

GEAR

Gear - Fuel Pump

1шт.

2

J926722

SEALING RING,Square, 2.51mm Thk x 6.27mm ID, -108

Ring - Quad, Fuel Injection Pump

1шт.

3

86991263

STUD,M10 x 1.5 x 55

4шт.

4

9804278

FLANGE NUT,M10 x 1.5, Cl 8

4шт.

5

J943440

SUPPORT

Support-Fuel Pump

1шт.

6

845-8020

BOLT,Hvy Hex, M8 x 20mm, Cl 8.8

2шт.

7

J909310

SCREW,Hex Flg, M8 x 1.25 x 25mm, Cl 10.9

Stud - Hex Flange, 8 - 1.25 X 6 - 1.0 MM

1шт.

8

9804261

BOLT,Hex, M10 x 25mm, Cl 8.8, Full Thd

2шт.

9

J991108

SUPPORT

Injector Pump

1шт.

10

87015870

BOLT,Hex, M10 x 20mm, Cl 10.9, Full Thd

4шт.
