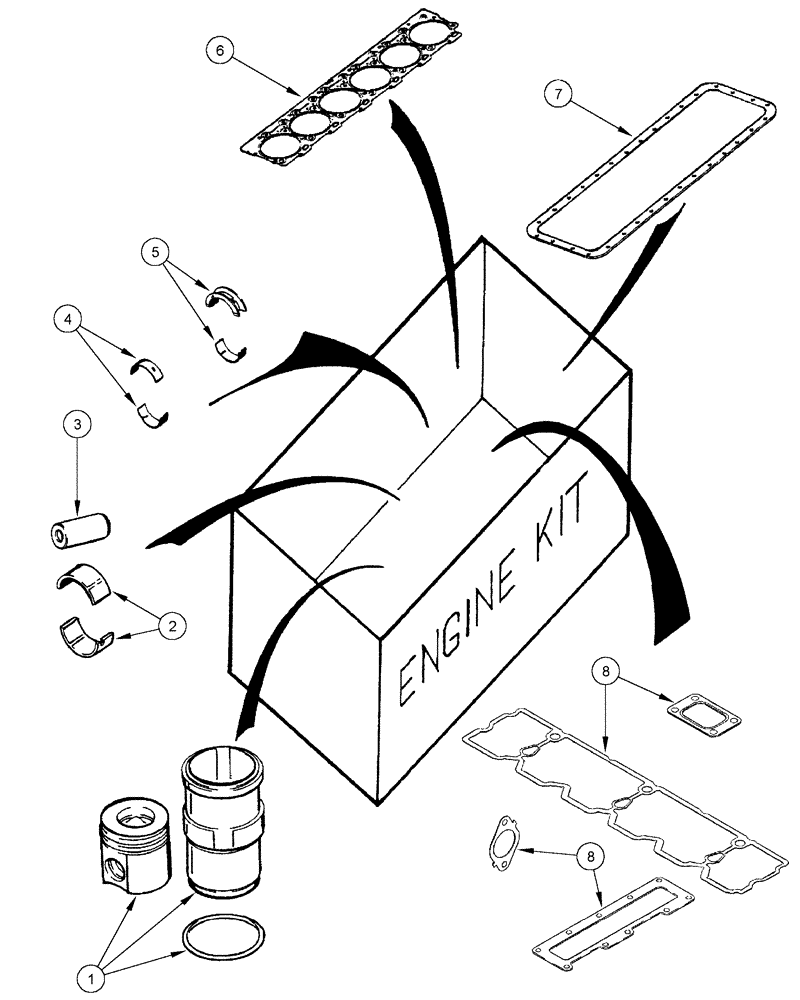

87422169
ENGINE OVERHAUL KIT
1шт.
1
87422167
KIT
Piston, Standard
6шт.
See Fig. 02-060
1шт.
Some Parts Not Shown
1шт.
2
87443389
BEARING LINER
Kit - Upper And Lower, Standard
6шт.
See Fig. 02-060
1шт.
3
J934046
PISTON PIN,45mm OD x 91mm L
6шт.
See Fig. 02-060
1шт.
4
J945930
BEARING SET
Main, Upper and Lower Set, Standard
6шт.
See Fig. 02-058
1шт.
5
A78027
BEARING LINER
Main Thrust, Upper And Lower Set, Standard
1шт.
See Fig. 02-058
1шт.
6
J943366
CYLINDER HEAD GASKET,2.11mm Thk
Standard
1шт.
See Fig. 02-049
1шт.
7
87308050
GASKET,0.95mm Thk
Oil Pan
1шт.
See Fig. 02-046
1шт.
Some Parts Not Shown
1шт.
8
A78018
GASKET KIT
Valve Grind
1шт.
See Fig. 02-062
1шт.
Some Parts Not Shown
1шт.
A78003
GASKET KIT
Basic Service Engine
1шт.
Not Shown
1шт.
1
86637735
SEAL,9.53mm ID x 13.97mm OD
3/8 Tube, Fl
2шт.
Kit - Basic Service Engine, Not Illustrated
1шт.
2
238-5013
O-RING,0.07" Thk x 0.426" ID, -13, Cl 5, 75 Duro
2шт.
Gasket Kit - Basic Service Engine, Not Illustrated
1шт.
3
238-7018
O-RING,0.07" Thk x 0.739" ID, -18, Cl 7, 75 Duro
1шт.
Gasket Kit - Basic Service Engine, Not Illustrated
1шт.
4
238-7210
O-RING,0.139" Thk x 0.734" ID, -210, Cl 7, 75 Duro
6шт.
Gasket Kit - Basic Service Engine, Not Illustrated
1шт.
5
313262A1
O-RING,0.07" Thk x 0.364" ID
2шт.
Gasket Kit - Basic Service Engine, Not Illustrated
1шт.
6
J937706
GASKET,0.79mm Thk
Turbo Oil Drain Tube
1шт.
Gasket Kit - Basic Service Engine, Not Illustrated
1шт.
7
J330081
O-RING
3.859 ID X 0.139 Inch Wide
1шт.
Gasket Kit - Basic Service Engine, Not Illustrated
1шт.
8
J330202
O-RING,11.3MM ID x 2.2 Thk
2шт.
Gasket Kit - Basic Service Engine, Not Illustrated
1шт.
9
J330478
O-RING,0.07" Thk x 0.676" ID
Sealing
2шт.
Gasket Kit - Basic Service Engine, Not Illustrated
1шт.
10
J678603
O-RING,2.2mm Thk x 9.3mm ID
2шт.
Gasket Kit - Basic Service Engine, Not Illustrated
1шт.
11
J678912
O-RING,2.2mm Thk x 11.3mm ID
2шт.
Gasket Kit - Basic Service Engine, Not Illustrated
1шт.
12
J867043
SEAL,1.78mm Thk x 10.82mm ID
6шт.
Gasket Kit - Basic Service Engine, Not Illustrated
1шт.
13
J883284
O-RING,0.07" Thk x 2.364" ID, -36
1шт.
Gasket Kit - Basic Service Engine, Not Illustrated
1шт.
14
J937142
SEAL,7mm ID x 15mm OD x 1.5mm Thk
Injector Nozzle, 7 MM Injector Tip
6шт.
Gasket Kit - Basic Service Engine, Not Illustrated
1шт.
15
J911941
GASKET
Mounting, Turbocharger
1шт.
Gasket Kit - Basic Service Engine, Not Illustrated
1шт.
16
J912473
SEAL,157mm ID x 163.18mm OD x 7.03mm Thk
SEALRING Flywheel Housing To Block
1шт.
Gasket Kit - Basic Service Engine, Not Illustrated
1шт.
17
J917892
GASKET,0.79mm Thk
Mounting
1шт.
Gasket Kit - Basic Service Engine, Not Illustrated
1шт.
18
J919369
GASKET,0.5mm Thk
Turbocharger To Manifold
1шт.
19
J939258
GASKET,1.21mm Thk
lift pump
1шт.
Gasket Kit - Basic Service Engine, Not Illustrated
1шт.
20
87415913
SEALING WASHER,11.71mm ID x 19.3mm OD x 1.27mm Thk
Special, 12 X 19 X 1.5 MM
4шт.
Gasket Kit - Basic Service Engine, Not Illustrated
1шт.
21
J937479
MANIFOLD GASKET
Exhaust
6шт.
Gasket Kit - Basic Service Engine, Not Illustrated
1шт.
22
J944646
MANIFOLD GASKET
Intake Cover
1шт.
Gasket Kit - Basic Service Engine, Not Illustrated
1шт.
23
J944647
GASKET
Connector
1шт.
Gasket Kit - Basic Service Engine, Not Illustrated
1шт.
24
J944683
GASKET
Breather
1шт.
Gasket Kit - Basic Service Engine, Not Illustrated
1шт.
25
87405641
O-RING,0.07" Thk x 0.676" ID, -17, Cl 5, 75 Duro
Sealing
2шт.
Gasket Kit - Basic Service Engine, Not Illustrated
1шт.
