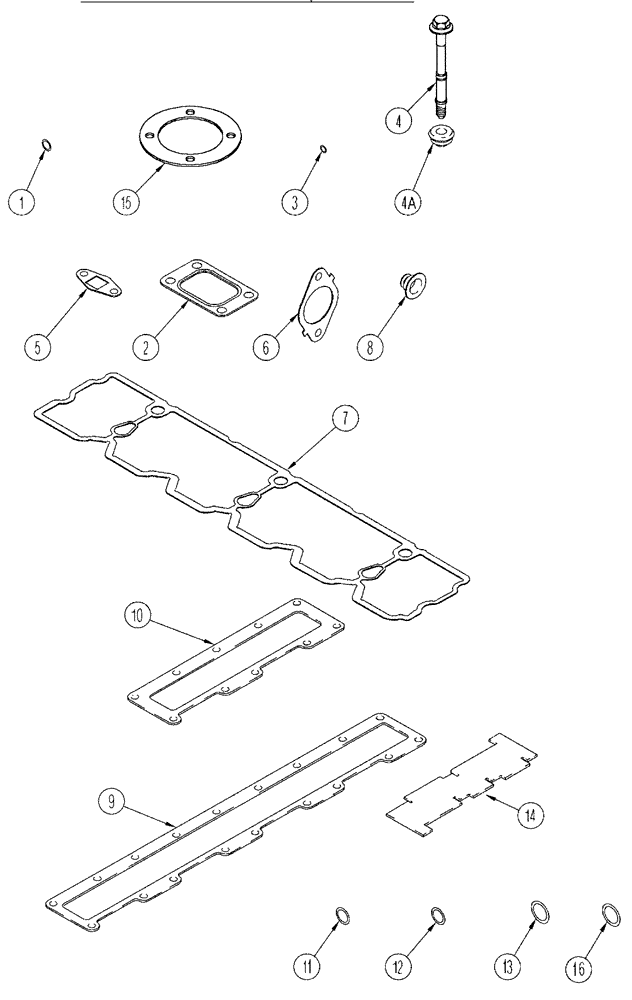

Запчасти Case IH FLX3510 (02-062) - GASKET KIT - VALVE GRIND, FLX 3510 (01) - ENGINE

A78018

GASKET KIT

Valve Grind

1шт.

1

J867043

SEAL,1.78mm Thk x 10.82mm ID

O-Ring

6шт.

2

J919369

GASKET,0.5mm Thk

Turbocharger To Manifold

1шт.

3

J937142

SEAL,7mm ID x 15mm OD x 1.5mm Thk

Injector Nozzle, 7 MM Injector Tip

6шт.

J990876

ISOLATOR

Screw - With

5шт.

4

NSS

NOT SOLD SEPARAT

Screw - Captive Sleeve

1шт.

4a

NSS

NOT SOLD SEPARAT

Isolator - Noise

1шт.

5

J937706

GASKET,0.79mm Thk

Turbo Oil Drain Tube

1шт.

6

J937479

MANIFOLD GASKET

Exhaust

6шт.

7

J939284

GASKET

Valve Cover

1шт.

8

J943888

SEAL

Valve Stem

24шт.

9

J944646

MANIFOLD GASKET

Intake, Cover

1шт.

10

87447963

GASKET

Connector

1шт.

11

129270

O-RING,0.072" Thk x 0.414" ID, -905, Cl 6, 90 Duro

2шт.

12

238-7210

O-RING,0.139" Thk x 0.734" ID, -210, Cl 7, 75 Duro

6шт.

13

313262A1

O-RING,0.07" Thk x 0.364" ID

2шт.

14

87404692

GAUGE

Cylinder Head, Bolt Length

1шт.

15

J917892

GASKET,0.79mm Thk

Mounting

1шт.

16

J678603

O-RING,2.2mm Thk x 9.3mm ID

2шт.
