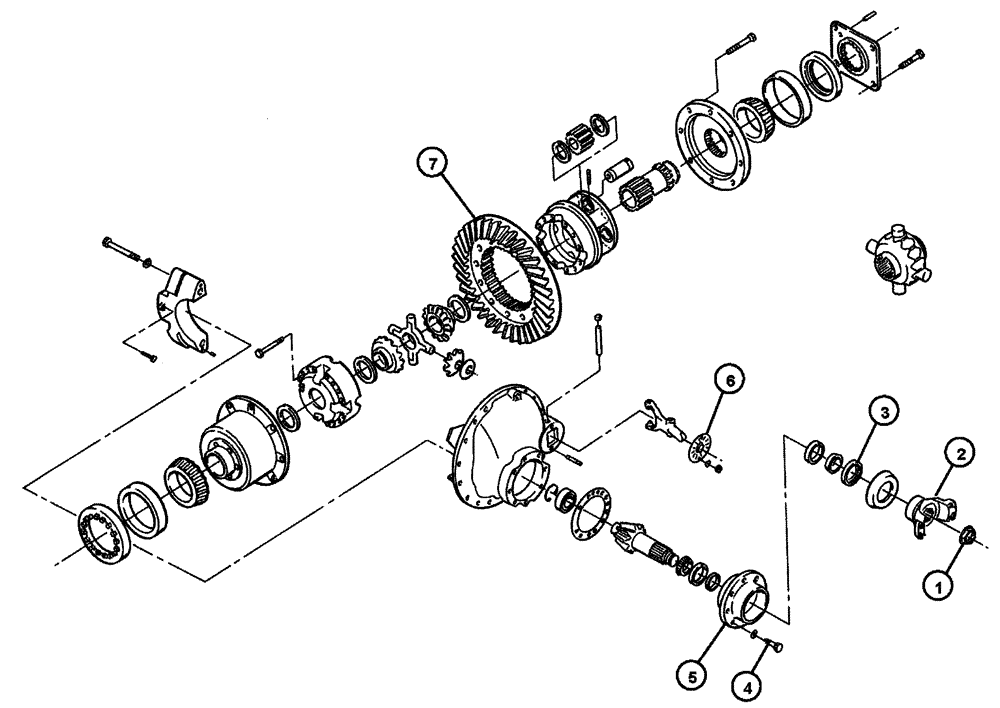

Запчасти Case IH FLX3510 (04-004) - REAR AXLE CARRIER Frame & Suspension

1

BN2390129-009

NUT

Pinion New #2636

1шт.

2

BN2292588

YOKE

End 6-4-5131X (1710)

1шт.

3

BN2390129-001

SEAL

Pinion, #415082N

1шт.

4

BN2390129-042

BOLT

Cage Assembly, Pinion Bearing

8шт.

5

BN2390129-041

BEARING ASSY

Cage, Pinion

1шт.

6

BN2390129-002

BOOT

Shifter

1шт.

7

BN2390129-016

RING GEAR

Pinion Assembly

1шт.

BN2390129-007

CARRIER

Assembly, Rear Axle, 3.91-5.45

1шт.

BN2407953

SHIFTING UNIT

Air, Rear Axle, 2 Speed, (Not Shown)

1шт.
