Запчасти Case IH FLX3510 (02-056) - ENGINE - CYLINDER BLOCK, FLX 3510 (01) - ENGINE

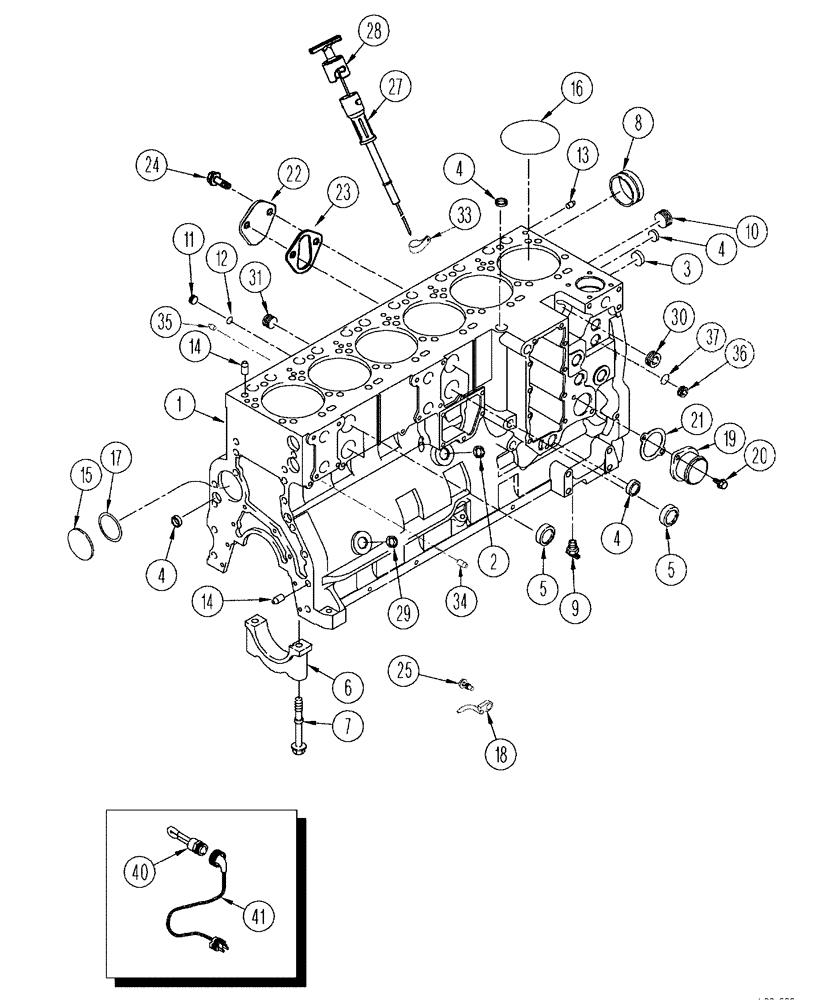

Схема запчастей Case IH FLX3510 - (02-056) - ENGINE - CYLINDER BLOCK, FLX 3510 (01) - ENGINE

Артикул

Название

Примечание

Количество

0

345222A2

ENGINE

9L CDC, 350 HP

1шт.

Complete Engine Less Starter, Alternator, Flywheel, Fan, Air Cleaner, Muffler, Exhaust Pipe

1шт.

0

87422225

BASIC ENGINE

Assembly, Basic Service, 6TAA-9004

1шт.

Less Starter, Alternator, Flywheel And Housing, Fan, Fan Belt, Air Cleaner, Muffler, Exhaust Manifold And Pipe, Fuel Injection Pump, Injectors And Lines, Front Pulley, Belt Tensioner, Turbocharger

1шт.

0

87422226

REMAN-BASIC ENGINE

Reman For New P/N 87422225

1шт.

0

87422226C

CORE-BASIC ENGINE

Return Part Number, Basic Engine

1шт.

Component Parts Shown On This Page Do Not Apply To The Remanufactured Assembly

1шт.

0

87445532

SHORT ENGINE

Short, 6TAA-9004 9.0L, 325 hp

1шт.

0

87445533

REMAN-SHORT ENGINE,6 Cylinders, W/O Turbocharger

Remanufactured, Block Assembly - Short, N.A. Only

1шт.

Component Parts Shown On This Page Do Not Apply To The Remanufactured Assembly

1шт.

0

6-900-SHBC

CORE

Return Number, Block Assembly, Engine Short, N.A. Only

1шт.

0

J939332

BASIC BLOCK

Assembly - Stripped, Engine When Ordering Short Block Assembly 87422229 Or Stripped Block Assembly J939332, Order Hardware Kit J800901.

1шт.

1

NSS

NOT SOLD SEPARAT

Block-Engine

1шт.

3

A77586

PLUG

Expansion, 28.9 mm od

2шт.

4

A77506

PLUG

Expansion, 21 mm od

4шт.

5

J905401

PLUG

Expansion, 35 MM OD

4шт.

5a

87708865

PLUG,M42 x 2

M42 - 2 Threaded Plug Used On Reman and Newer Blocks

1шт.

6

J936058

BEARING CAP

Main Bearing

6шт.

6

J948094

BEARING CAP

Main Thrust Bearing

1шт.

7

J916369

FLANGE BOLT,Hex, M14 x 2 x 128mm, Cl 10.9

14шт.

8

J945329

CAMSHAFT BEARING,60.08mm ID x 64.13mm OD x 25mm L

7шт.

J800901

KIT

Block Hardware When Ordering Short Block Assembly 87422229 Or Stripped Block Assembly J939332, Order Hardware Kit J800901.

1шт.

9

217-103

COCK, DRAIN

valve, 1/4" PT

1шт.

10

86625135

PLUG,1" - 11-1/2 NPT

1шт.

11

J678923

PLUG,M10 x 1

Hex Socket, 10 MM

6шт.

12

86625087

O-RING,1.6mm Thk x 8.1mm ID, Cl 7, 75 Duro

1шт.

13

J900257

PIN,10.01mm OD x 16mm L

10 mm x 16 mm long

2шт.

14

J901846

PIN,12.01mm OD x 24mm L

Dowel

4шт.

15

41-3044

PLUG,Exp, 2 3/4"

1шт.

16

J907177

SEAL,118mm ID x 122.32mm OD x 4mm Thk

Sealing

6шт.

17

J926048

O-RING,0.07" Thk x 2.614" ID, -38, Cl 5, 75 Duro

Sealing, 66 MM Id

1шт.

18

J945435

NOZZLE

Piston Cooling

12шт.

19

J913030

FITTING

Water

1шт.

20

845-8020

BOLT,Hvy Hex, M8 x 20mm, Cl 8.8

2шт.

21

J945603

GASKET,1.65mm Thk

Mounting, Water Inlet

1шт.

22

J948083

COVER

Plate

1шт.

23

J939258

GASKET,1.21mm Thk

lift pump

1шт.

24

845-8020

BOLT,Hvy Hex, M8 x 20mm, Cl 8.8

2шт.

25

J3070393

BOLT

Special, M8

6шт.

27

87418224

TUBE,13.29mm L

Dipstick

1шт.

28

87418248

DIPSTICK

Engine Oil

1шт.

29

J943808

PLUG

Expansion

1шт.

30

263136

MAGNETIC PLUG,Sq. Soc, 3/4"-14 NPTF

PLUG, MAGNETIC

1шт.

31

444704

PLUG,Hex Soc, 1/2"-14

1шт.

32

J920443

PLUG

Expansion, 30 mm od

1шт.

Not Shown

1шт.

33

A77508

CLAMP

P-Type, 7/16" id

1шт.

34

J329899

DOWEL,5.01mm OD x 10mm L

Pin

12шт.

35

J900956

PLUG

Expansion, 18 MM OD

3шт.

36

313244A1

PLUG

hex socket, 22 mm

2шт.

37

313246A1

O-RING,2.2mm Thk x 19.3mm ID

19 mm id x 2.2 mm

1шт.

310493A1

KIT

engine block heater, 120V, 1000W

1шт.

40

NSS

NOT SOLD SEPARAT

Element - (120 Volt)

1шт.

41

87105748

ELECTRIC CABLE,120V, 15A

1829 mm (72") (Engine Block Heater, 120 Volt)

1шт.

310494A1

KIT

engine block heater, 240V, 1000W

1шт.

40

NSS

NOT SOLD SEPARAT

Element - (240 Volt)

1шт.

41

J913112

WIRE HARNESS

Heater, (240 Volt)

1шт.

Выбрано товаров: 57
