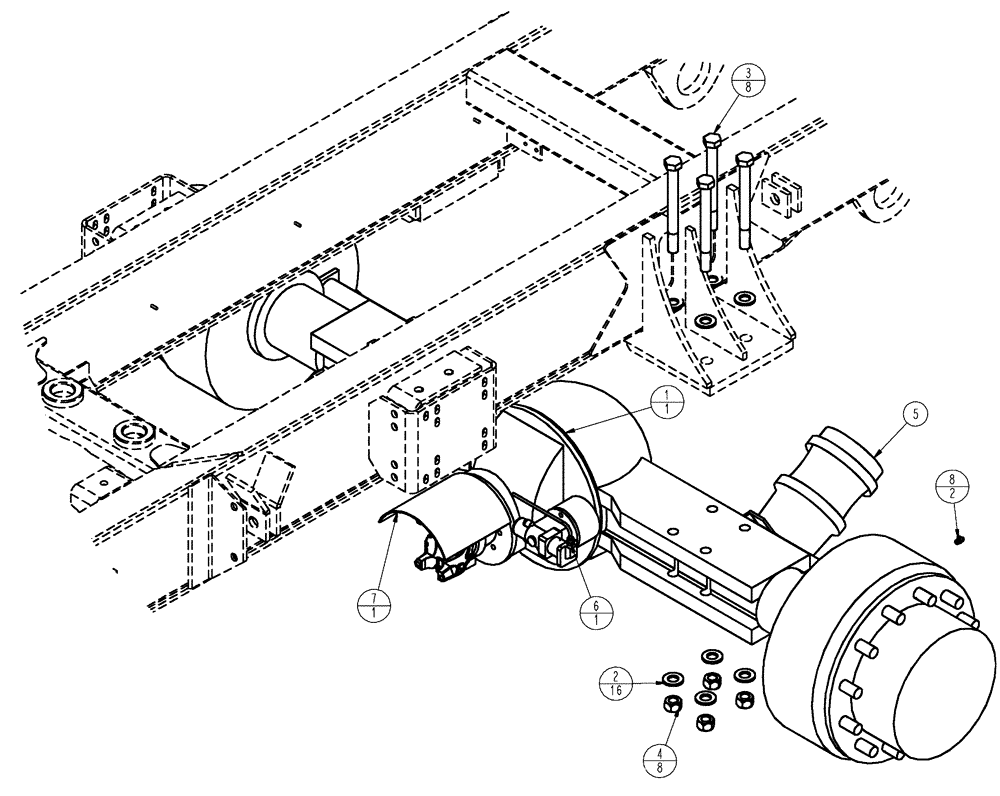

Запчасти Case IH FLX3510 (04-003) - REAR AXLE GROUP, FLX3010 & FLX3510, WITH AUXILIARY Frame & Suspension

1

87493492

AXLE

PRC674, 16.56/23.10, Start Year: 01-JUL-08

1шт.

See Figs. 04-004 And 04-005 And 04-007

1шт.

1

87267974

AXLE

PRC674, 16.56/23.10, Years: -01-JUL-08

1шт.

See Figs. 04-004 And 04-006 And 04-007

1шт.

2

87529235

WASHER,1.06" ID x 2" OD x 0.21" Thk

1.0625 x 2 x 0.209, HTS, DOR

16шт.

3

BN319750

BOLT

1-14 X 10, HH, Grade 8

8шт.

4

BN1470411F

LOCK NUT

1"-14 Flex

8шт.

5

NS

NOT SERVICED

Brake Chamber, Assembly

2шт.

5a

BN2290528

FITTING

2103-6-6

2шт.

Parts Of Brake Chamber, Assembly, Ref. 5

1шт.

5b

BN2399367

BRAKE

MGM Brake #3436078

1шт.

Parts Of Brake Chamber, Assembly, Ref. 5

1шт.

6

NS

NOT SERVICED

Group, 2 Speed Pneumatic, Start Serial: 6700

1шт.

See Fig. 07-013

1шт.

6

BN324360

Group, 2 Speed Pneumatic

1шт.

Indicates Old Part Number Or Can Order Newer Part Number Listed Above

1шт.

See Fig. 07-014

1шт.

7

87269589

GUARD

U-Joint

1шт.

8

BN41288

LUBE NIPPLE

Zerk-1/8-27 X 90 Degree

2шт.

9

331-37

SPARE PART

FLUID, 1 lb. Lithium #2 grease

1шт.

10

87027134

FLUID

Oil, SAE 85W140, MS1616NH 1QT

1шт.

11

ZPX27136

SEALANT, THREAD

Adhesive, 271

1шт.
