Артикул
Название
Примечание
Количество
1

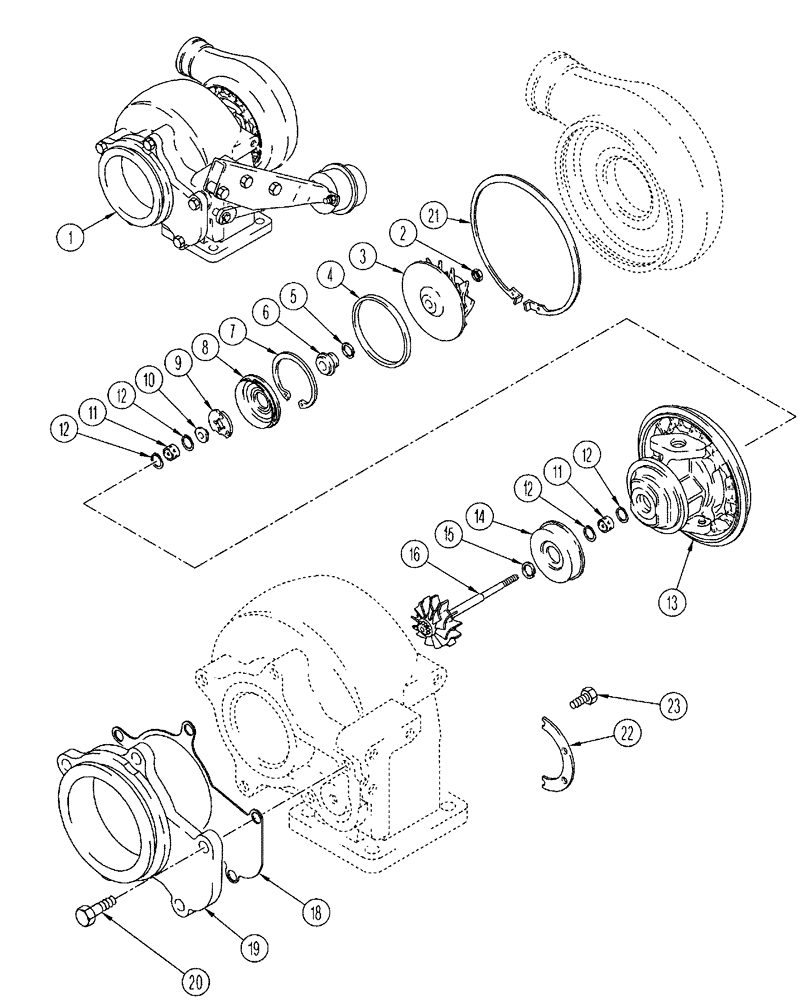

TURBOCHARGER
Kit - Turbocharger (Includes J591022 For Other Parts See, Fig 02-037 And Fig 02-041)
1шт.
Part Of Turbocharger Overhaul Kit, P/N J575169
1шт.
1
84410510R
REMAN-TURBOCHARGER
FLX3010, FLX3510, Both (8/04-8/06), Reman for New PN J800406
1шт.
1
84410510C
CORE-TURBOCHARGER
Return Number
1шт.
2
NSS
NOT SOLD SEPARAT
Nut-Hex, Lock
1шт.
Part Of Turbocharger Overhaul Kit, P/N J575169
1шт.
3
NSS
NOT SOLD SEPARAT
Impeller - Turbocharger
1шт.
Part Of Turbocharger Center Housing Assembly, P/N J591196
1шт.
4
NSS
NOT SOLD SEPARAT
Seal - O-Ring
1шт.
Part Of Turbocharger Overhaul Kit, P/N J575169
1шт.
5
NSS
NOT SOLD SEPARAT
Seal-Split Ring
1шт.
Part Of Turbocharger Overhaul Kit, P/N J575169
1шт.
6
NSS
NOT SOLD SEPARAT
Slinger-Oil
1шт.
Part Of Turbocharger Center Housing Assembly, P/N J591196
1шт.
7
NSS
NOT SOLD SEPARAT
Ring - Retaining
1шт.
Part Of Turbocharger Overhaul Kit, P/N J575169
1шт.
8
NSS
NOT SOLD SEPARAT
Baffle - Oil
1шт.
Part Of Turbocharger Overhaul Kit, P/N J575169
1шт.
9
NSS
NOT SOLD SEPARAT
Bearing - Thrust
1шт.
Part Of Turbocharger Overhaul Kit, P/N J575169
1шт.
10
NSS
NOT SOLD SEPARAT
Collar - Thrust
1шт.
Part Of Turbocharger Center Housing Assembly, P/N J591196
1шт.
11
NSS
NOT SOLD SEPARAT
Bearing - Impeller Shaft
2шт.
Part Of Turbocharger Center Housing Assembly, P/N J591196
1шт.
12
NSS
NOT SOLD SEPARAT
Ring - Retaining
4шт.
Part Of Turbocharger Overhaul Kit, P/N J575169
1шт.
13
NSS
NOT SOLD SEPARAT
Housing-Bearing
1шт.
Part Of Turbocharger Center Housing Assembly, P/N J591196
1шт.
14
NSS
NOT SOLD SEPARAT
Shield - Heat
1шт.
Part Of Turbocharger Overhaul Kit, P/N J575169
1шт.
15
NSS
NOT SOLD SEPARAT
Seal-Split Ring
1шт.
Part Of Turbocharger Overhaul Kit, P/N J575169
1шт.
16
NSS
NOT SOLD SEPARAT
Rotor And Shaft - Turbocharger
1шт.
Part Of Turbocharger Center Housing Assembly, P/N J591196
1шт.
17
NSS
NOT SOLD SEPARAT
Plate - Oil Seal, Not Shown
1шт.
Part Of Turbocharger Center Housing Assembly, P/N J591196
1шт.
18
J537960
GASKET,0.46mm Thk
Adapter
1шт.
19
J537979
ADAPTER
exhaust outlet
1шт.
21
J533163
SNAP RING
Retaining
1шт.
22
J534309
PLATE
Clamping
2шт.
Part Of Turbocharger Overhaul Kit, P/N J575169
1шт.
J575169
REPAIR KIT
Overhaul, Turbocharger
1шт.
Consists of Refs. 2, 4, 5, 7, 8, 9, 11, 12, 15, 21
1шт.
Consists of Refs. 2 - 17
1шт.
Выбрано товаров: 47
