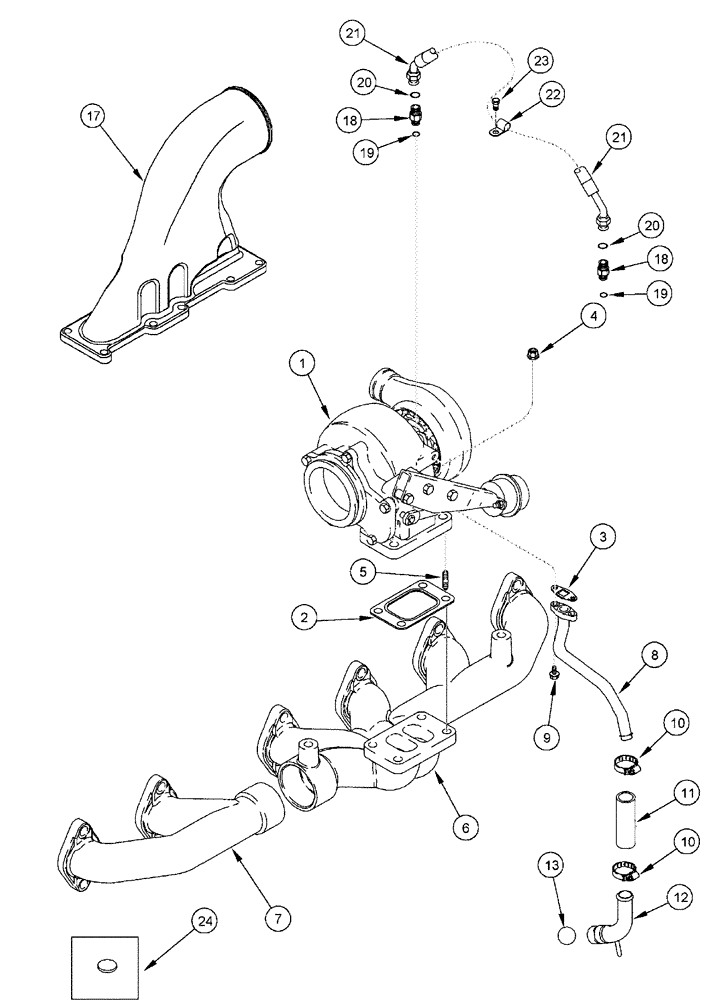

Запчасти Case IH FLX3510 (02-037) - TURBOCHARGER SYSTEM, FLX 3010 (01) - ENGINE

1

REF

INSTRUCTION

Kit - Turbocharger

1шт.

Includes Refs. 2 And 3. For Other Parts See Fig. 02-039 And 02-041

1шт.

2

J919369

GASKET,0.5mm Thk

Turbocharger To Manifold

1шт.

3

J937706

GASKET,0.79mm Thk

Turbo Oil Drain Tube

1шт.

4

J818824

FLANGE NUT

Hex Flange, Special, 10 MM - 1.5

4шт.

5

J818823

STUD

Turbocharger Mounting

4шт.

6

J943841

EXHAUST MANIFOLD

See Fig 02-035

1шт.

7

J937477

MANIFOLD

Exhaust, See Fig 02-035

1шт.

8

J945108

TUBE

Connector - Turbo Oil Drain

1шт.

9

845-8020

BOLT,Hvy Hex, M8 x 20mm, Cl 8.8

2шт.

10

87016721

HOSE CLAMP,17.5mm - 31.7mm

2шт.

11

J286499

HOSE

76 MM (3 Inch) Long

1шт.

12

J948079

TUBE,0.875" OD

Turbo Oil Drain

1шт.

13

238-7018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 7, 75 Duro

1шт.

17

J943750

CONNECTION

Air Intake, See Fig 02-035

1шт.

18

J922789

HYD CONNECTOR

Adapter - Male, 12 MM X 11/16 Inch

2шт.

19

313262A1

O-RING,0.07" Thk x 0.364" ID

1шт.

20

J678603

O-RING,2.2mm Thk x 9.3mm ID

1шт.

21

J282159

FLEXIBLE HOSE

1шт.

22

86010402

CLAMP,12.7mm, Coat, 10.3mm Bolt Hole, P Type

1шт.

23

615-8012

BOLT,Hex, M8 x 1.25 x 12mm, Cl 8.8, Full Thd

1шт.

24

J920706

PLUG

Expansion, 22 MM OD - R. Side Block

1шт.
