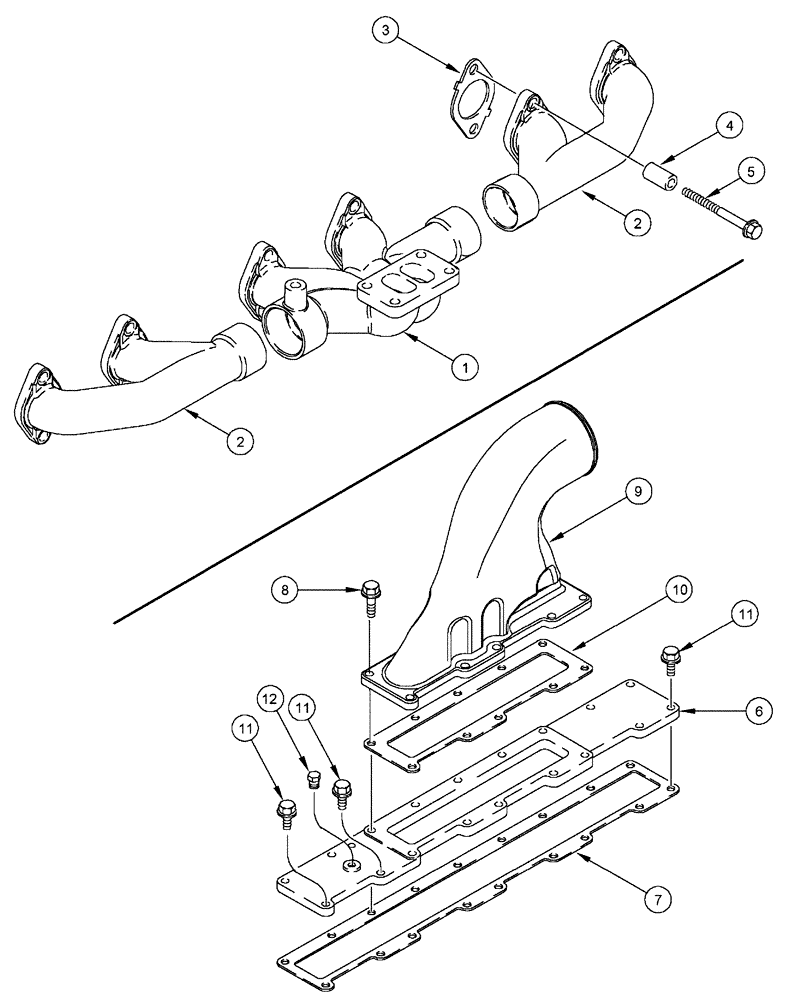

Запчасти Case IH FLX3510 (02-036) - MANIFOLDS, FLX 3510 (01) - ENGINE

1

87423497

EXHAUST MANIFOLD

1шт.

2

J937477

MANIFOLD

Exhaust

2шт.

3

J937479

MANIFOLD GASKET

Exhaust

6шт.

4

J945252

SPACER

Mounting, 35 mm, Exhaust

12шт.

5

J901448

FLANGE BOLT,Hex, M10 x 65mm

12шт.

Exhaust

1шт.

6

CASJ944342

COVER

Intake Manifold

1шт.

7

J944646

MANIFOLD GASKET

Intake Cover

1шт.

8

86511842

BOLT,M8 x 1.25 x 48.1mm OAL, Cl 8.8

10шт.

Intake

1шт.

9

J943750

CONNECTION

Air Intake

1шт.

10

J944647

GASKET

Connector (Intake)

1шт.

11

9804260

BOLT,Hex, M8 x 1.25 x 30mm, Full Thd, Cl 8.8

3шт.

Intake

1шт.

12

88071

PLUG

Hex Hd, 1/8"-27 NPTF

1шт.

Intake

1шт.
