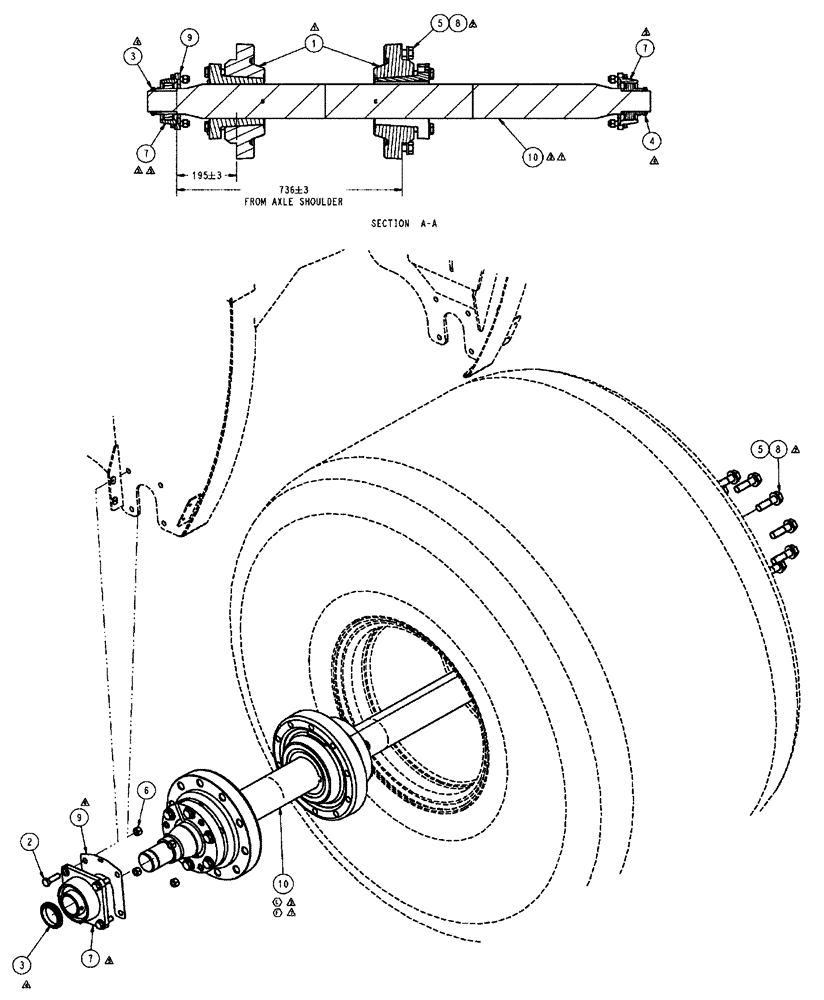

Запчасти Case IH FLX3510 (04-001) - FRONT AXLE GROUP Frame & Suspension

1

257826A1

HUB

Assembly, 115 MM Axle

2шт.

2

120090

BOLT,Hex, M16 x 50mm, Cl 8.8

8шт.

3

87268062

BEARING LOCK NUT,79.4 mm ID x 84.1 mm OD x 15.88 mm

Bearing, LH Thread

1шт.

4

87268061

BEARING LOCK NUT,79.4 mm ID x 84.1 mm OD x 15.88 mm

Bearing, RH Thread

1шт.

5

827-22080

BOLT,Hex, M22 x 2.5 x 80mm, Cl 10.9

10шт.

6

832-46416

NUT,M16 x 2, Cl 8

8шт.

7

86986542

FLANGED BEARING

70 mm, 4 Bolt Flange

2шт.

8

896-11022

WASHER,24mm ID x 44mm OD x 4mm Thk

10шт.

9

87268063

SHIM

Front Axle Bearing

6шт.

10

87396362

SHAFT

Front Axle

1шт.

10

87268060

SHAFT

Front Axle

1шт.

Indicates Old Part Number Or Can Order Newer Part Number Listed Above

1шт.
