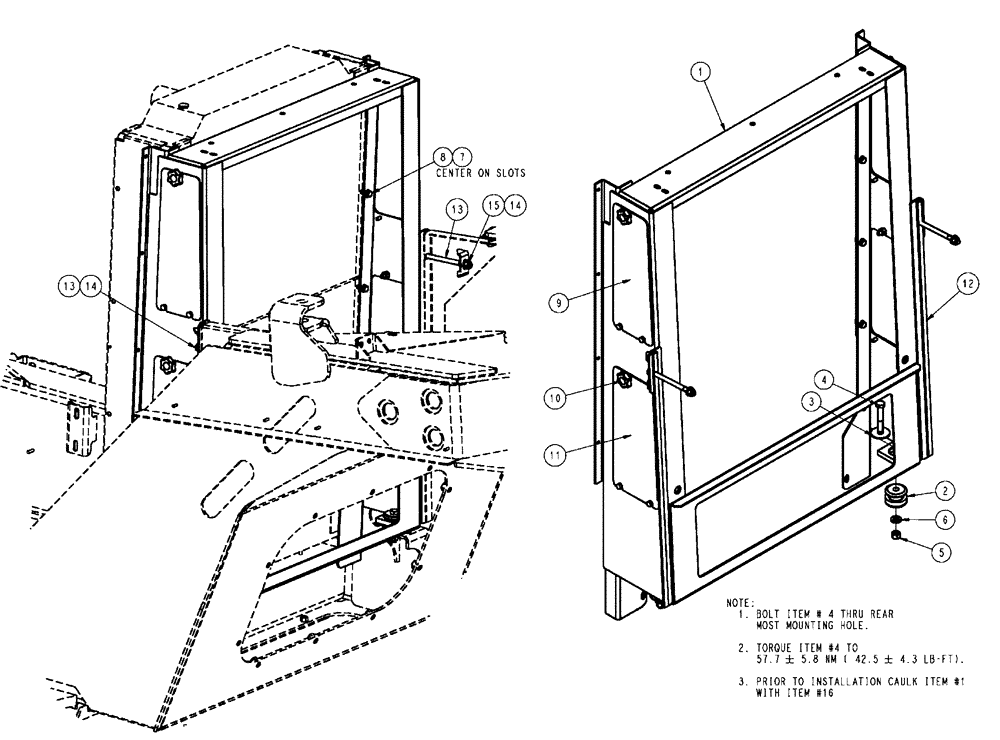

Запчасти Case IH FLX3510 (02-020) - RADIATOR MOUNTING GROUP (01) - ENGINE

1

87268755

MOUNTING PLATE

Front Radiator

1шт.

2

700707039

RUBBER MOUNTING

Isolator

2шт.

3

495-71053

WASHER,13.49mm ID x 44.45mm OD x 2.54mm Thk

2шт.

4

814-12070

BOLT,Hex, M12 x 1.75 x 70mm, Cl 8.8

2шт.

5

100038

NUT,M12 x 1.75, Cl 8

2шт.

6

86625255

WASHER,13.3mm ID x 24.5mm OD x 3mm Thk

2шт.

7

87015284

WASHER,8.8mm ID x 21.5mm OD x 2.5mm Thk

14шт.

8

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

10шт.

9

343857A1

COVER

Radiator Access

2шт.

10

86980380

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

4шт.

11

343858A1

COVER

Radiator Access

2шт.

12

BN326049

FOAM

EPDM, 3/16" x 1/2" x 50"

2шт.

13

331168

BOLT,Hex, M10 x 1.5 x 140mm, Cl 8.8

2шт.

14

86639325

WASHER,10.8mm ID x 24.5mm OD x 3mm Thk

4шт.

15

100037

LOCK NUT,M10 x 1.5, Cl 8

2шт.

16

BN324647

0.5

1шт.
