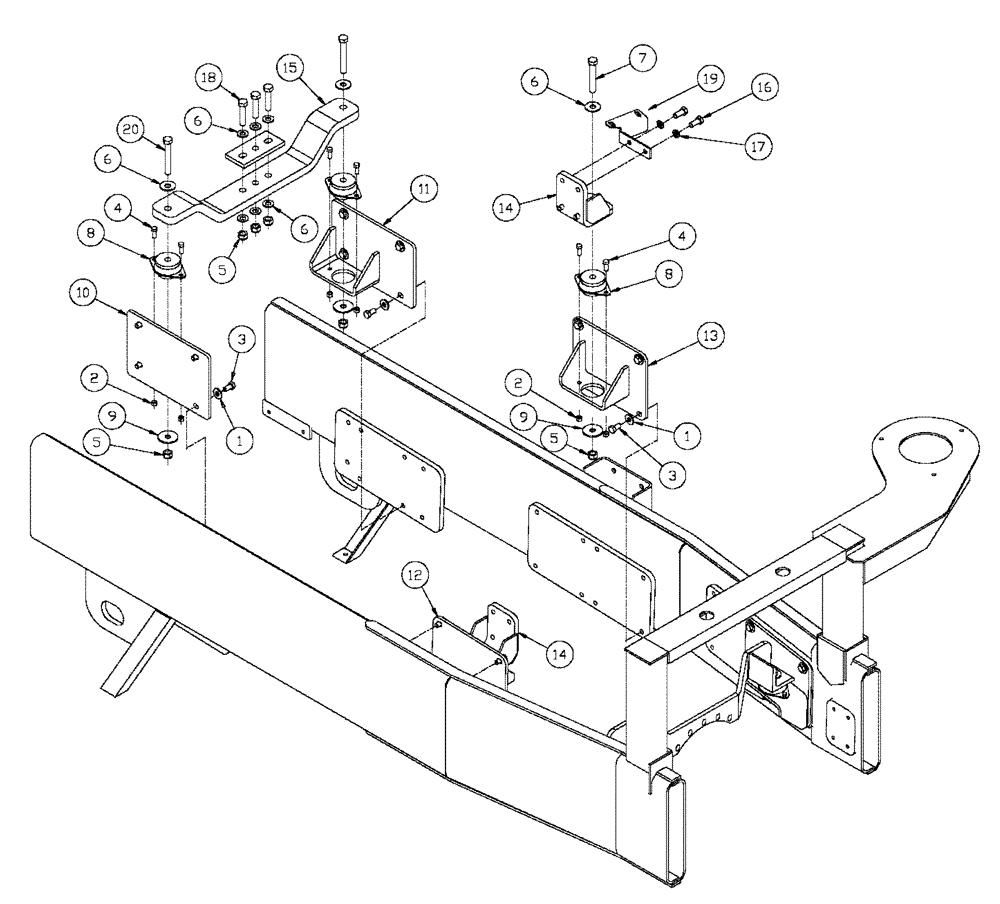

Запчасти Case IH FLX3330B (02-030) - ENGINE MOUNTING (FLX3300B CASE ENGINE) (01) - ENGINE

1

87529240

WASHER,0.53" ID x 1.06" OD x 0.13" Thk

0.531 x 1.062 x 0.134 HTS DOR HDN

16шт.

2

BN304419

NUT

M10-1.5, NLN, 10.9

8шт.

3

BN300367

BOLT

1/2-20 X 1, HH, G8

16шт.

4

BN300389

BOLT

Hex, M12 x 35, 8.8, Full Thd

8шт.

5

832-46416

NUT,M16 x 2, Cl 8

7шт.

6

BN300501

WASHER

M16, FW, 10.9

10шт.

7

BN302765

BOLT

M16-2 X 100, HH, 10.9

2шт.

8

BN306728

ENGINE MOUNT

4шт.

9

BN308164

WASHER

Rebound

4шт.

10

BN314556

MOUNTING PLATE

Front Engine/Frame, RS

1шт.

11

BN314557

MOUNTING PLATE

Front Engine/Frame, CS

1шт.

12

BN317682

FRAME

Mount, RS

1шт.

13

BN317683

FRAME

Mount, CS

1шт.

14

BN318430

MOUNTING PARTS

Flywheel House

2шт.

15

BN314568

CROSSRAIL

Engine

1шт.

16

626-12035

BOLT,Hex, M12 x 1.75 x 35mm, Cl 10.9, Full Thd

8шт.

17

BN300500

WASHER,M12, 10.9

8шт.

18

BN302769

BOLT

M16-2.5 X 70, HH, 10.9

3шт.

19

BN318560

BRACKET

Turbo Tube

1шт.

20

43281

BOLT,Hex, M16 x 2 x 120mm, Cl 10.9

2шт.
