(02-029) - ENGINE MOUNTING (FLX3300B CAT ENGINE & FLX3330B)

Запчасти Case IH FLX3330B (02-029) - ENGINE MOUNTING (FLX3300B CAT ENGINE & FLX3330B) (01) - ENGINE

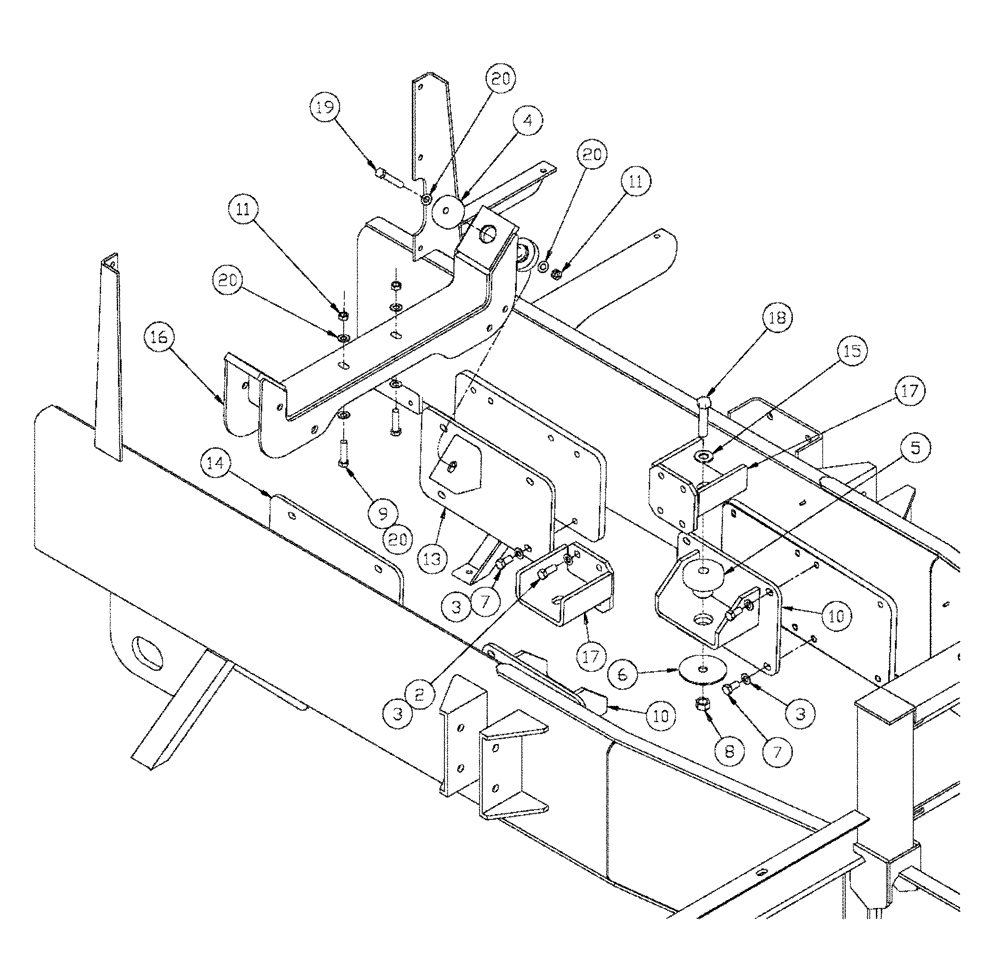

Схема запчастей Case IH FLX3330B - (02-029) - ENGINE MOUNTING (FLX3300B CAT ENGINE & FLX3330B) (01) - ENGINE
11
14
16
20
13
20
17
9
10
3
2
3
6
10
7
8
15
20
11
20
19
4
17
3
18
7
5
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

2

BN1913329C

HH 1/2-13X1 1/4 N

8шт.

3

87529240

WASHER,0.53" ID x 1.06" OD x 0.13" Thk

0.531 x 1.062 x 0.134 HTS DOR HDN

24шт.

4

BN2297361

KIT

Lord SSB26-1000-1

2шт.

5

BN2297362

ENGINE MOUNT

Lord CBA33-1200

2шт.

6

BN2392312

WASHER

Lord Mount

2шт.

7

BN300367

BOLT

1/2-20 X 1, HH, G8

16шт.

8

832-46418

NUT

M18-2.5-NLN, 10.9

2шт.

9

BN302747

BOLT

M12-1.75 X 50,HH,10.9

2шт.

10

BN304249

ENGINE MOUNT

Rear

2шт.

11

BN304551

SCREW

M12-1.75, FLN,10.9

4шт.

13

BN304446

ENGINE MOUNT

Front LH

1шт.

14

BN304447

ENGINE MOUNT

Front RH

1шт.

15

86511191

WASHER,0.81" ID x 2" OD x 0.15" Thk

2шт.

16

BN7146201

CROSSMEMBER

Engine-Front

1шт.

17

BN7146202

MOUNTING PLATE

Engine-Rear

2шт.

18

814-18100

BOLT,Hex, M18 x 2.5 x 100mm, Cl 8.8

M18-2.5 X 100, HH, 10.9, 2ND

2шт.

19

412605

BOLT,Hex, M12 x 1.75 x 90mm, Cl 10.9

2шт.

20

86625255

WASHER,13.3mm ID x 24.5mm OD x 3mm Thk

8шт.
