Запчасти Case IH FLX3330B (02-023) - FUEL INJECTION SYSTEM (FLX3300B CASE ENGINE) (01) - ENGINE

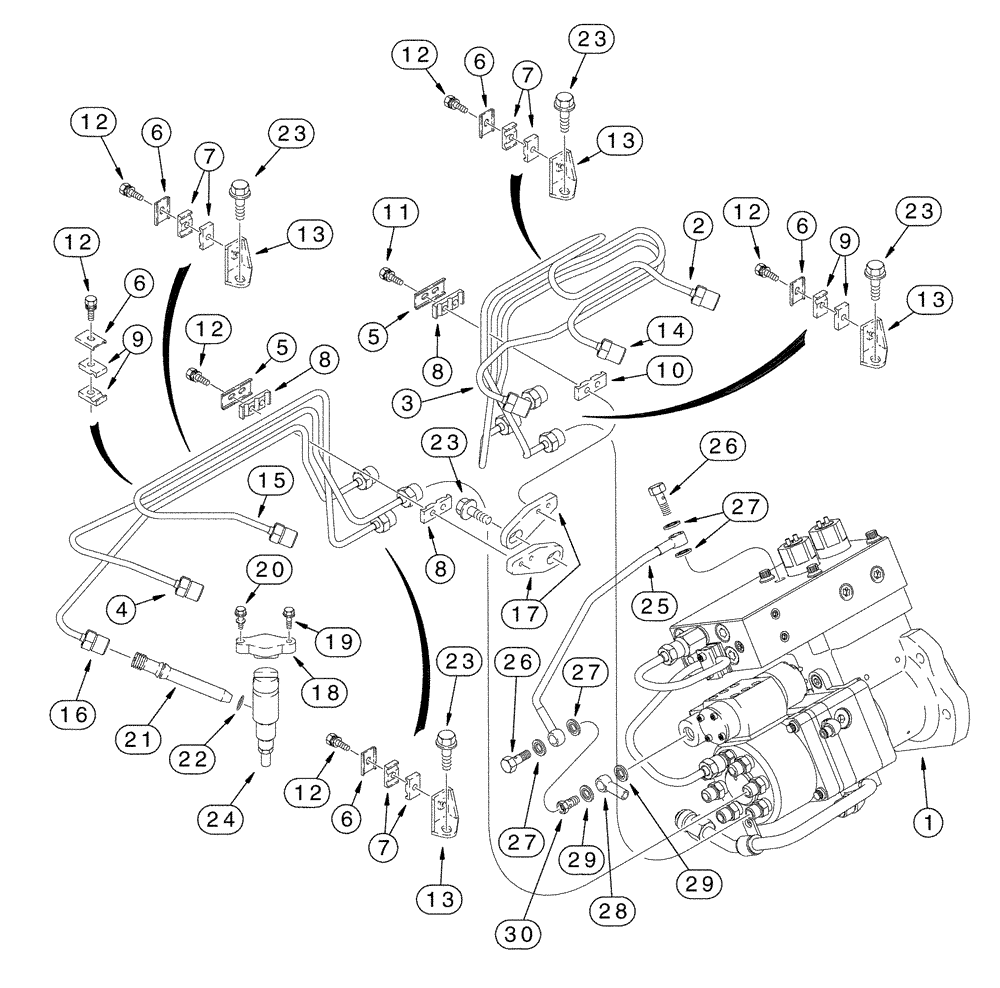

Схема запчастей Case IH FLX3330B - (02-023) - FUEL INJECTION SYSTEM (FLX3300B CASE ENGINE) (01) - ENGINE
12
6
22
23
16
12
14
9
26
2
5
8
12
9
4
24
6
13
15
7
27
7
19
20
17
10
12
13
23
27
23
23
18
7
6
29
8
11
26
28
5
23
6
27
13
12
13
12
8
29
30
3
6
21
1
25

Артикул

Название

Примечание

Количество

1

BN4010173

GEAR

Pump Assembly

1шт.

See Fig. 02-026

1шт.

1

87441514C

CORE-FUEL INJECTOR

CORE - ICV Pump - Return number - For N.A. only

1шт.

2

J944686

FUEL TUBE,1.8 mm ID x 6.35 mm OD x 725 mm L

No. 1

1шт.

3

J944690

FUEL TUBE,1.8 mm ID x 6.35 mm OD x 725 mm L

No. 3

1шт.

4

J944694

FUEL TUBE,1.8 mm ID x 6.35 mm OD x 725 mm L

No. 5

1шт.

5

J904519

SUPPORT

Brace

2шт.

6

J904711

SUPPORT

Bracket

5шт.

7

J917746

CLAMP

6шт.

8

J917747

CLAMP

3шт.

9

J919359

CLAMP

4шт.

10

J944699

CLAMP

1шт.

11

J944717

CAPTIVE WASHER SCREW

1шт.

12

J920854

CAPTIVE WASHER SCREW,HWH, M5 x 0.8 x 24.5mm, Cl 8.8

7шт.

13

J930688

SUPPORT

Bracket

4шт.

14

J944688

FUEL TUBE,1.8 mm ID x 6.35 mm OD x 725 mm L

No. 2

1шт.

15

J944692

FUEL TUBE,1.8 mm ID x 6.35 mm OD x 725 mm L

No. 4

1шт.

16

J944696

FUEL TUBE,1.8 mm ID x 6.35 mm OD x 725 mm L

No. 6

1шт.

17

J944698

SUPPORT

Brace

2шт.

18

J940639

CLAMP

6шт.

19

9804257

FLANGE BOLT,Hex, M6 x 1.0 x 25mm, Cl 8.8, Full Thd

6шт.

20

J940817

SCREW,Hex Flg, M6 x 1 x 25mm

6шт.

21

J944833

FUEL TUBE

Adapter

6шт.

22

J867043

SEAL,1.78mm Thk x 10.82mm ID

O-Ring

6шт.

23

9804260

BOLT,Hex, M8 x 1.25 x 30mm, Full Thd, Cl 8.8

6шт.

24

J943731

NOZZLE INJECTION

Assembly

6шт.

See Fig. 02-028

1шт.

25

J943595

FUEL TUBE,6.35 mm OD x 211.1, 112.5 mm L

1шт.

26

J918002

BANJO BOLT

2шт.

27

J918190

SEALING WASHER,10mm ID x 15.5mm OD x 1mm Thk

10 X 15.5 X 1 MM

4шт.

28

J944869

HYD CONNECTOR

1шт.

29

J918192

PACKING RING,14mm ID x 20mm OD x 1mm Thk

Washer, 14 X 20 X 1 MM

4шт.

30

J943592

BANJO BOLT,M14 x 1.5 x 26mm

Screw

1шт.

Выбрано товаров: 33
