Запчасти Case IH FLX3330B (02-022) - GASKET KIT - CYLINDER BLOCK (FLX3300B CASE ENGINE) (01) - ENGINE

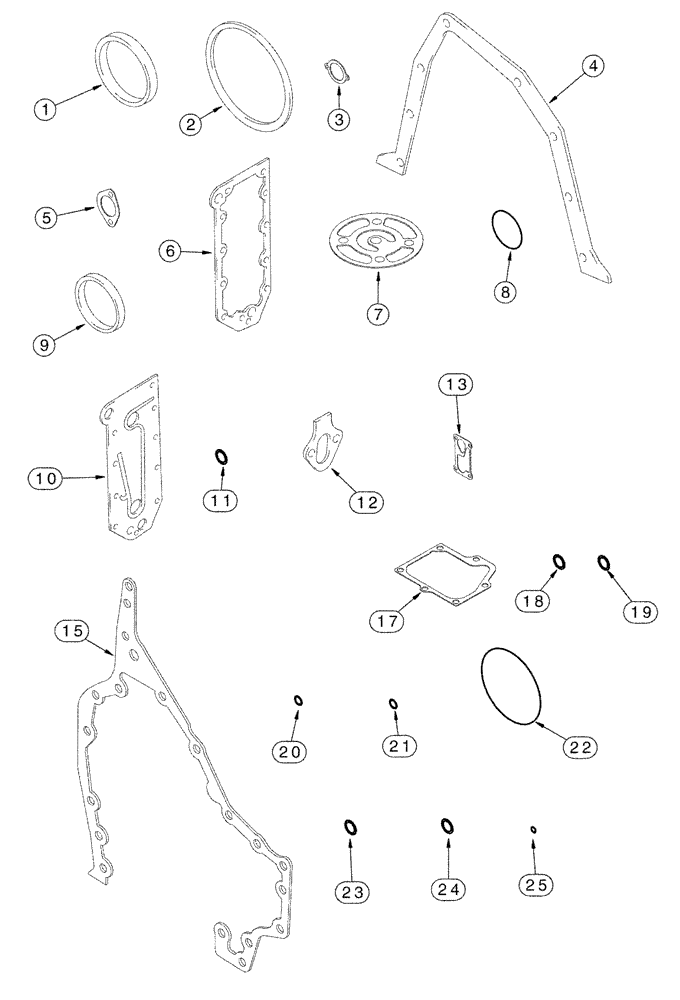

Схема запчастей Case IH FLX3330B - (02-022) - GASKET KIT - CYLINDER BLOCK (FLX3300B CASE ENGINE) (01) - ENGINE
19
11
4
22
25
2
6
20
7
8
24
13
9
17
18
10
15
21
3
23
5
12
1

Артикул

Название

Примечание

Количество

0

A77905

SEAL PACKAGE

Gaskets

1шт.

Consists of Refs. 1 - 25

1шт.

1

J903475

SEALING RING,72.39mm ID x 90.39mm OD x 9mm Thk

1шт.

See Fig. 02-006

1шт.

2

J907177

SEAL,118mm ID x 122.32mm OD x 4mm Thk

6шт.

See Fig. 02-018

1шт.

3

J913032

GASKET

Mounting

1шт.

See Fig. 02-018

1шт.

4

J914301

GASKET

Mounting

1шт.

See Fig. 02-019

1шт.

5

J914302

GASKET

Mounting

1шт.

See Fig. 02-012

1шт.

6

J918174

GASKET,0.71mm Thk

Mounting

1шт.

See Fig. 02-011

1шт.

7

J921605

GASKET

Housing

1шт.

See Fig. 02-011

1шт.

8

J926048

O-RING,0.07" Thk x 2.614" ID, -38, Cl 5, 75 Duro

66 MM ID

1шт.

See Fig. 02-018

1шт.

9

J926722

SEALING RING,Square, 2.51mm Thk x 6.27mm ID, -108

Ring

1шт.

See Fig. 02-026

1шт.

10

J929011

GASKET,1.19mm Thk

Cover

1шт.

See Fig. 02-011

1шт.

11

J930911

O-RING,0.07" Thk x 0.8" ID

3/4 ID X 1/16

1шт.

See Fig. 02-011

1шт.

12

J931059

GASKET

Mounting, Replaces : J931348

1шт.

See Fig. 02-018

1шт.

13

J943744

GASKET

Mounting

1шт.

See Fig. 02-015

1шт.

15

J944293

GASKET,1.01mm Thk

Housing

1шт.

See Fig. 02-006

1шт.

17

J944683

GASKET

Mounting

1шт.

See Fig. 02-016

1шт.

18

237-8008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 8, 90 Duro

2шт.

See Figs. 02-024 & 02-025

1шт.

19

237-8010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 8, 90 Duro

2шт.

See Figs. 02-024 & 02-025

1шт.

20

238-5013

O-RING,0.07" Thk x 0.426" ID, -13, Cl 5, 75 Duro

1шт.

See Fig. 02-015

1шт.

21

238-5111

O-RING,0.103" Thk x 0.424" ID, -111, Cl 5, 75 Duro

2шт.

See Fig. 02-015

1шт.

22

238-5244

O-RING,0.139" Thk x 4.234" ID, -244, Cl 5, 75 Duro

1шт.

See Fig. 02-005

1шт.

23

A77724

O-RING,3.05mm Thk x 23.62mm ID

Seal, A777

1шт.

See Fig. 02-011

1шт.

24

313246A1

O-RING,2.2mm Thk x 19.3mm ID

19 mm id x 2.2 mm

2шт.

See Fig. 02-018

1шт.

25

84432614

O-RING,1.6mm Thk x 8.1mm ID, Cl 6, 90 Duro

9шт.

See Figs. 02-024 & 02-025

1шт.

Выбрано товаров: 48
