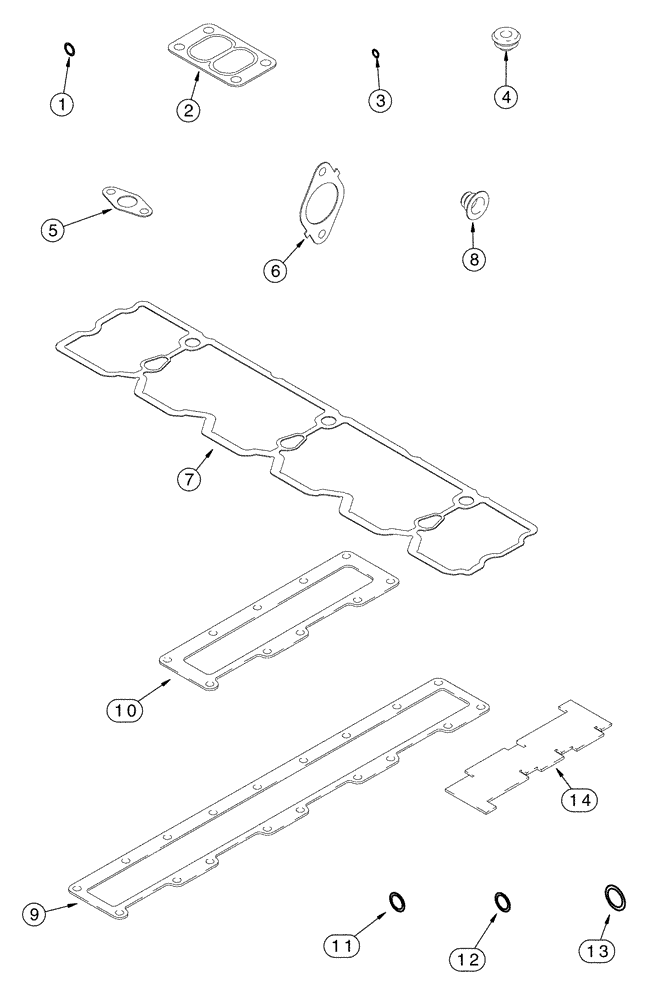

Запчасти Case IH FLX3330B (02-021) - GASKET KIT - VALVE GRIND (FLX3300B CASE ENGINE) (01) - ENGINE

0

A77904

GASKET KIT

Package

1шт.

Consists of Refs. 1 - 14

1шт.

1

J867043

SEAL,1.78mm Thk x 10.82mm ID

Injector

6шт.

See Fig. 02-023

1шт.

2

J901356

GASKET,0.5mm Thk

Mounting

1шт.

See Fig. 02-008

1шт.

3

J906659

SEAL

M7, Nozzle

6шт.

See Fig. 02-028

1шт.

4

J942659

ISOLATOR

5шт.

See Fig. 02-013

1шт.

5

J931350

GASKET

Mounting

1шт.

See Fig. 02-008

1шт.

6

J943191

MANIFOLD GASKET

Manifold, Exhaust

6шт.

See Fig. 02-007

1шт.

7

J943303

GASKET

Cover

1шт.

See Fig. 02-013

1шт.

8

J943888

SEAL

Intake Valve

4шт.

See Fig. 02-014

1шт.

9

J944646

MANIFOLD GASKET

Intake

1шт.

See Fig. 02-007

1шт.

10

J944647

GASKET

Mounting

1шт.

See Fig. 02-007

1шт.

11

129270

O-RING,0.072" Thk x 0.414" ID, -905, Cl 6, 90 Duro

2шт.

See Fig. 02-009

1шт.

12

238-7210

O-RING,0.139" Thk x 0.734" ID, -210, Cl 7, 75 Duro

6шт.

See Fig. 02-028

1шт.

13

84432614

O-RING,1.6mm Thk x 8.1mm ID, Cl 6, 90 Duro

1шт.

See Fig. 02-024

1шт.

14

J823921

GAUGE

Length

1шт.
