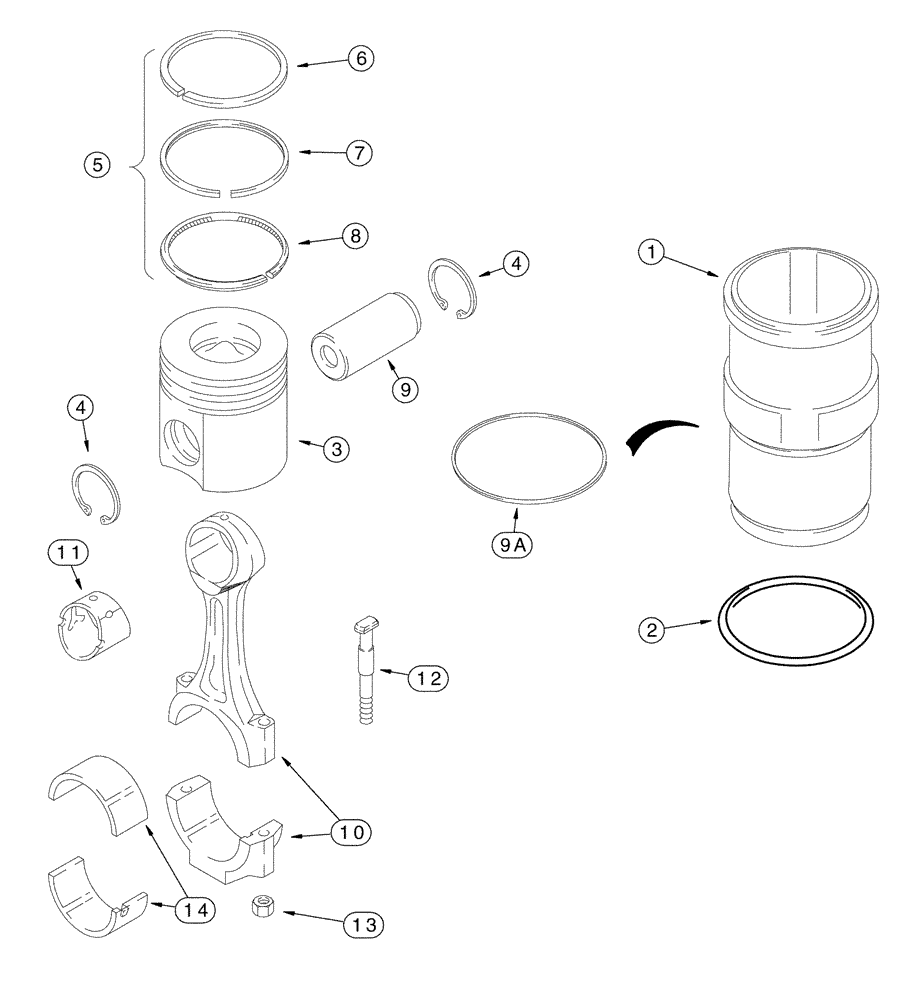

Запчасти Case IH FLX3330B (02-020) - PISTONS - CONNECTING RODS (FLX3300B CASE ENGINE) (01) - ENGINE

A77901

PISTON & RINGS KIT

Standard

6шт.

Consists of Refs. 1 - 8

1шт.

1

J944344

SLEEVE CYLINDER

1шт.

2

J907177

SEAL,118mm ID x 122.32mm OD x 4mm Thk

1шт.

J800316

PISTON & RINGS KIT

Set, Standard

1шт.

Consists of Refs. 3 - 8

1шт.

3

NSS

NOT SOLD SEPARAT

Piston

1шт.

4

100-21175

SNAP RING,1.75", Int, #175

2шт.

5

J802429

PISTON RINGS KIT

Set, Piston, Standard

1шт.

Consists of Refs. 6 - 8

1шт.

6

NSS

NOT SOLD SEPARAT

Ring, Top

1шт.

7

NSS

NOT SOLD SEPARAT

Ring, Middle

1шт.

8

NSS

NOT SOLD SEPARAT

Ring, Bottom

1шт.

9

J901597

PIN

6шт.

9a

J924445

SHIM,126.8mm ID x 130.5mm OD x 0.25mm Thk

1шт.

9a

J924446

SHIM,126.8mm ID x 130.5mm OD x 0.38mm Thk

1шт.

9a

J924447

SHIM,126.8mm ID x 130.5mm OD x 0.5mm Thk

1шт.

9a

J924448

SHIM,0.762mm Thk

1шт.

9a

J924449

SHIM,1.000mm Thk

1шт.

J901383

CONNECTING ROD

Assembly, New

6шт.

Consists of Refs. 10 - 13

1шт.

JR901383

REMAN-CONNECTING ROD

Assembly, Remanufactured, N.A. Only

1шт.

Consists of Refs. 10 - 13

1шт.

84487529R

REMAN-CONNECTING ROD

FLX3330B, FLX3300B Both(12/99 - 9/02), Reman for New P/N J901383

1шт.

84487529C

CORE-ROD CONNECTING

Return Number

1шт.

JC901383

CORE-ROD CONNECTING

CORE-CONNECTING ROD Return Number

1шт.

10

NSS

NOT SOLD SEPARAT

(Connecting ROD)

1шт.

11

J913990

BUSHING,45.03mm ID x 49mm OD x 45mm L

(Connecting ROD)

1шт.

12

J928870

ROD

connecting rod

2шт.

13

J901381

SPECIAL NUT

(Connecting ROD)

2шт.

14

87443389

BEARING LINER

Kit - Upper And Lower, Standard

6шт.

14

87443529

BEARING LINER

Kit - Upper And Lower, 0.25 mm Undersize

6шт.

14

A77565

BEARING SET

Kit - Connecting Rod, 0.50 mm Undersize

6шт.

14

84156221

BEARING SET

Kit - Upper and Lower, 0.75 mm Undersize

6шт.

14

87443534

BEARING LINER

Kit - Connector Rod, 1.00 mm Undersize

6шт.
