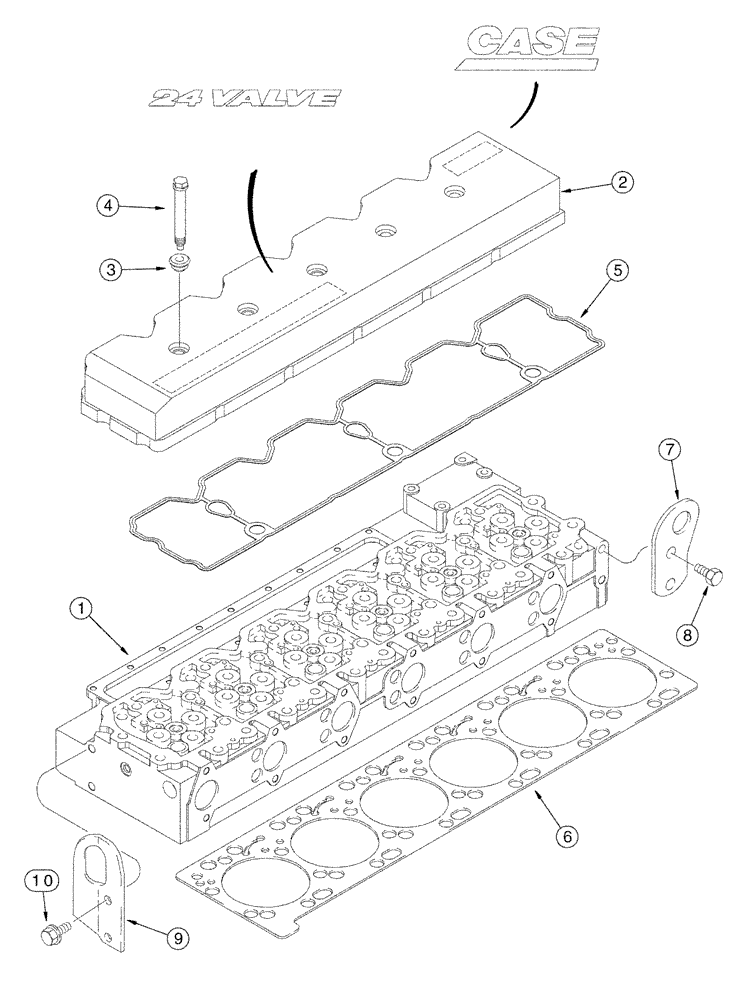

Запчасти Case IH FLX3330B (02-013) - CYLINDER HEAD - COVER (FLX3300B CASE ENGINE) (01) - ENGINE

1

NSS

NOT SOLD SEPARAT

Head, Cylinder

1шт.

See Fig. 02-014

1шт.

2

J944677

VALVE COVER

1шт.

3

J942659

ISOLATOR

5шт.

4

J943719

SCREW,Hex Flg, M8 x 1.25 x 78.28mm, Cl 10.9

Flange

5шт.

5

J943303

GASKET

Cover

1шт.

6

J943366

CYLINDER HEAD GASKET,2.11mm Thk

1шт.

7

J944239

BRACKET

Front

1шт.

8

300388

BOLT,Hex, M12 x 1.75 x 25mm, Cl 8.8

2шт.

9

J944290

BRACKET

Rear

1шт.

10

9804266

BOLT,Hex, M12 x 25mm, Cl 8.8, Full Thd

2шт.
